Titanium Alloy Blade 500W Ultrasonic Cutter For Rubber Products Automotive Industry
Description:
The principle of ultrasonic rubber cutting knife totally different from the traditional sense of the cutting. By using ultrasonic energy, the material will be cut by locally heating, so as to achieve the purpose of cutting the rubber. Ultrasonic cutting does not require a sharp edge and don’t need a lot of pressure, so it will not cause damage of vulcanization.
Ultrasonic rubber cutting knife basic composition is ultrasonic transducer, the amplitude, tool head (blade), drive power supply. Mains voltage is converted into a high-frequency alternating current by ultrasonic generator, providing to an ultrasonic transducer. Ultrasonic transducer is equivalent to an energy conversion device, it can be the input electrical energy into mechanical energy, called ultrasound.
The form is in longitudinal slip back and forth movement. Contractions in the frequency of the equivalent of driving power supply for the high frequency alternating current frequency.The role of the booster is a fixed the ultrasonic vibration system, the second is to adjust the transducer output amplitude.Tool head (blade) on the one hand, enlarge the amplitude, focused ultrasound. On the other hand is the output of ultrasonic, like blade of cutting knife, focused ultrasound energy input to the cutting parts of materials.
Ultrasonic cutting advantage and features:
1. Cut the material quickly and precisely
2. Smooth and traceless cutting edge
3. Powerful, effective realiable
4. Low cost, easy operator. An operator only handle the probe and step the foot switch .So anybody can use it easily.
FREQUENCY | 40Khz |
POWER | 500W 800W |
INPUT | AC110-240V, 50/60Hz |
POWER CONTROLLER | stepping or continuous |
MATERIAL OF CUTTING HEAD | aluminum alloy, stainless steel, titanium alloy, alloy steel. |
MACHINE WIGHT | 4 kg-16KG |
ACCESSORIES | foot switch, additional blade |
COOLING DEVICE | compressed air mouth can be installed. |
CABLE LENGTH | 2M or customized |
FOOT SWITCH | available |
Applications:
1. For thermal plastic gate cutting and flush cutting.
2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.
6. For package material cutting
7. For the automotive industry cutting
Our service
Free test:
We accept samples from customers, do free test for customer.Also welcome customer visit our company for experiment.Your problem is our problem.
Oversea service:
We have sub company in Australia,and agent in India,Malaysia,and Europe,we can offer oversea service for some customers. Our target is to be forever friend with every customer.
Customized solutions:
We can customize individual program depending different requirements for different customers. Also processing with supplied samples,OEM service are welcomed
Warranty:
One year Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price
Quality control:
3 times old test to confirm the products is well quality.
20 technician work together , and learn together , to improve our products.
48 hours working time to test the stability of our product before sending out.

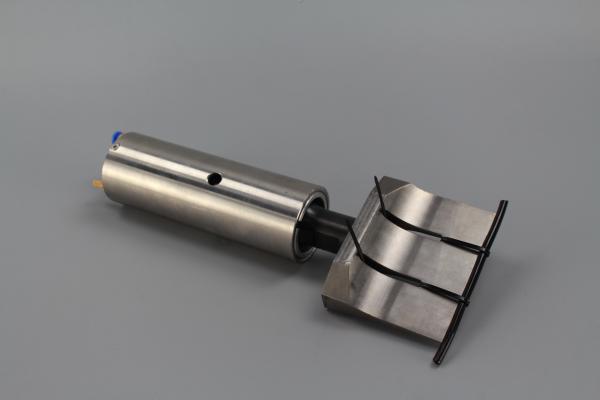

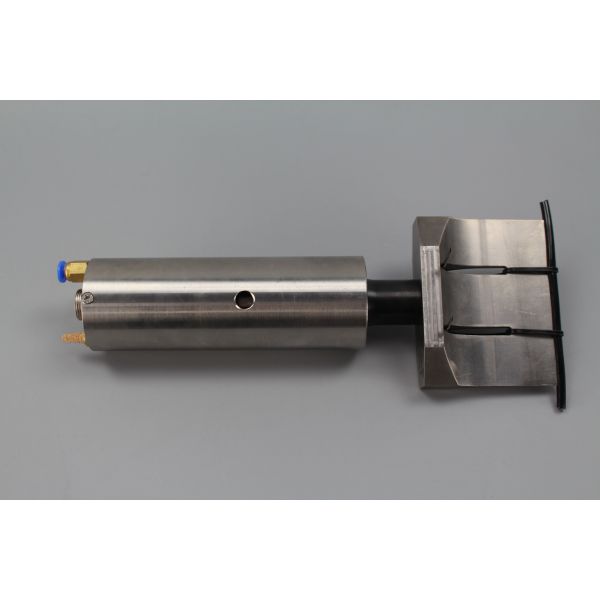

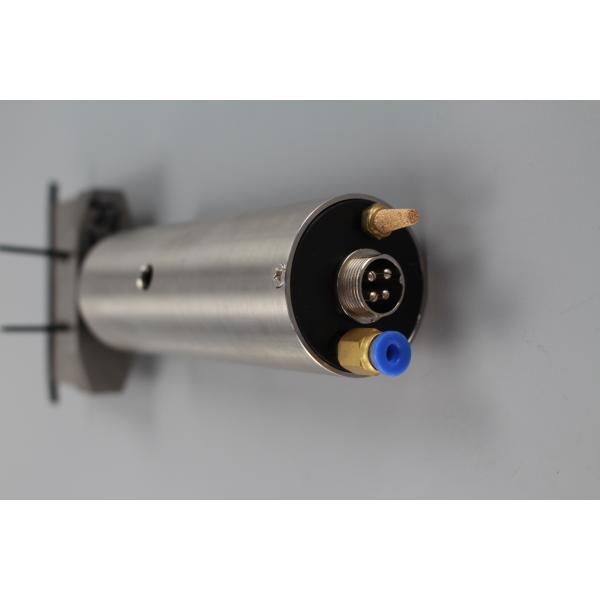

Pictures Showing
