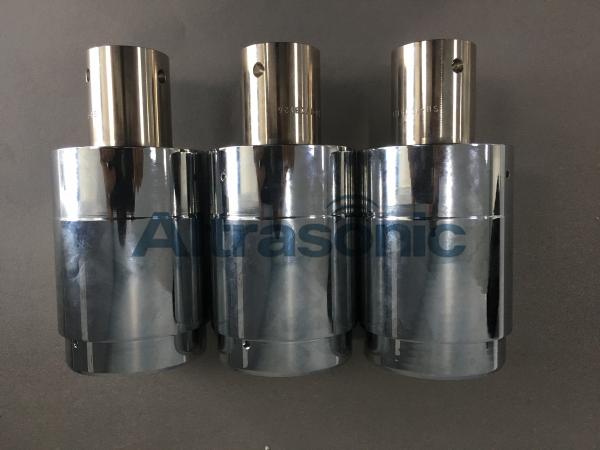

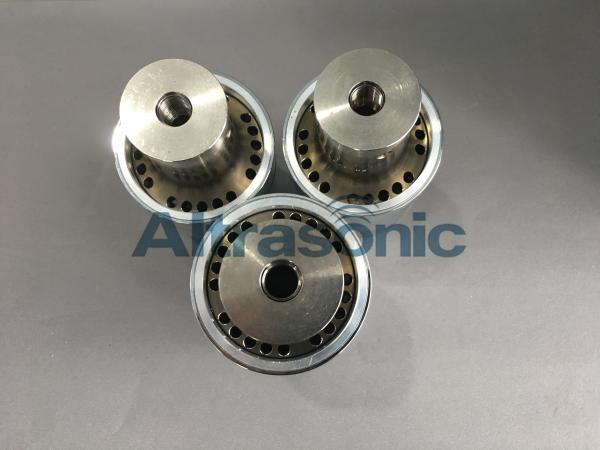

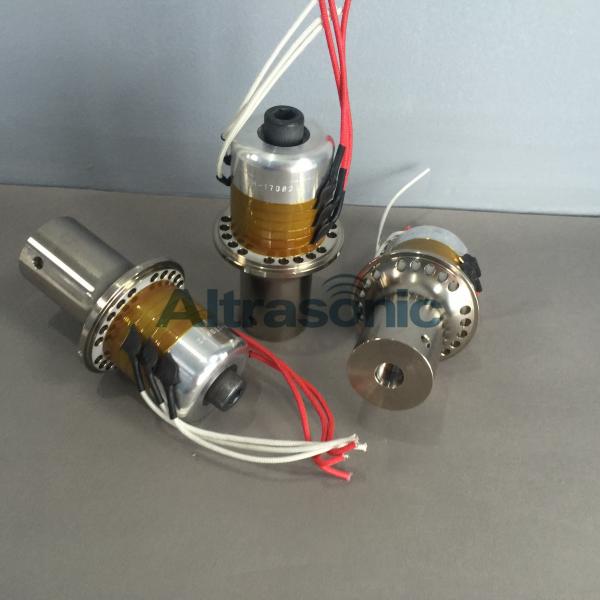

20Khz Branson Replacement Titanium Alloy Ultrasonic Converter 922JA for Welding Milk Juice Cap
20Khz Branson Replacement Titanium Alloy Ultrasonic Converter 922JA for Welding Milk Juice Cap
20Khz Branson Replacement Titanium Alloy Ultrasonic Converter 922JA for Welding Milk Juice Cap
20Khz Branson Replacement Titanium Alloy Ultrasonic Converter 922JA for Welding Milk Juice Cap
20Khz Branson Replacement Titanium Alloy Ultrasonic Converter 922JA for Welding Milk Juice Cap
20Khz Branson Replacement Titanium Alloy Ultrasonic Converter 922JA for Welding Milk Juice Cap
Specifications
Brand Name :
Altrasonic
Model Number :
HSD110-3122
Certification :
CE
Place of Origin :
CHINA
MOQ :
2 units
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 units per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Packed in carton
Product Name :
Ultrasonic converter
Frequency :
20Khz
Ceramic diameter :
50 mm
Capacitance :
11-17nf
Power :
2000W
Application :
Plastic welding Machine
Ceramic disc :
4pcs
Material :
Titanium, Aluminum materials optional
Protective outer cover :
Aluminum and stainless steel optional
Description

20Khz Branson Replacement Titanium Alloy Ultrasonic Converter 922JA for Welding Milk Juice Cap

Specifications:

Model HSD110-3122
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-17 nf
Amplitude 20 um
Application Plastic welding machine

Description:

The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 110-3122 that delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.

Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).

Applied Range:

Replacement ultrasonic converter for Dukane 110-3122,
for use with all 20KHz 2000 and 2000X actuator and IW systems.

Competitive Advantage:

1. Titanium materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

20Khz Branson Replacement Titanium Alloy Ultrasonic Converter 922JA for Welding Milk Juice Cap

20Khz Branson Replacement Titanium Alloy Ultrasonic Converter 922JA for Welding Milk Juice Cap

20Khz Branson Replacement Titanium Alloy Ultrasonic Converter 922JA for Welding Milk Juice Cap
