40hkz 100W Portable Ultrasonic Cutter for Non-woven Fabric and Milk Carton Cutting
40hkz 100W Portable Ultrasonic Cutter for Non-woven Fabric and Milk Carton Cutting
40hkz 100W Portable Ultrasonic Cutter for Non-woven Fabric and Milk Carton Cutting
40hkz 100W Portable Ultrasonic Cutter for Non-woven Fabric and Milk Carton Cutting
40hkz 100W Portable Ultrasonic Cutter for Non-woven Fabric and Milk Carton Cutting
40hkz 100W Portable Ultrasonic Cutter for Non-woven Fabric and Milk Carton Cutting
Specifications
Brand Name :
Altrasonic
Model Number :
HS-C40
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
7 workdays afer receiving the payment
Packaging Details :
Carton packing
Frequency :
40Khz
Power :
100W
Blade :
Replaceable
Material Of The Blade :
Titanium
Application :
Cutting
Generator :
Analog
Size Of Generator :
155 X 265 X 170mm
Voltage :
220V / 110V
Key Selling Points :
Easy to Operate
Description

40hkz 100W Portable Ultrasonic Cutter for Non-woven Fabric and Milk Carton Cutting

Specification:
Model
HS-C40
Frequency
40KHZ
Output Power
100W
Generator
Analog generator, 155 x 265 x 170mm
Handle
Φ32×170
Size of cutter
Blade replaceable
Length of cable
Outer skin
Aluminum
Weight
8KG
Voltage
220V / 110V
Accessory
Foot switch1pc；Cut blade 25pcs；1.5mm special hex wrench 1pc；
Screw M3×4L 2pcs
Material of cutter
titanium alloy, stainless steel
Description:
Ultrasonic Cutters are designed to cut textiles thermoplastic films, rubber woven and non-woven fabrics. Ultrasonic Cutting Systems can be operated as hand-held units or incorporated into automated machinery Solid, one-piece construction of horn blade virtually eliminates breakage and energy loss. Minimal blade flexure yields straighter cuts without having to support the blade. Available in 20, 30 or 40 kHz frequencies.
Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.
Application:
  • Natural fibers
  • Synthetic fiber
  • Thin plastic products(Such as plastic film, cell phone case)
  • All types of paper, bottom film
  • Rubber, silicone
  • Repair of printed circuit board copper foil
  • ABS,PP,PE … other organic plastic sheet less than 2mm
  • Various types of synthetic fabrics
Advantages:
1. Cut fast
2. Accurate
3. Smooth edge of materials
The following table presents the company tests for different material thickness, the recommended cutting speed data.
Cutting Material
Thickness
Cutting speed
ABS/PE
2mm
4mm/s
m
2mm/s
4mm
1mm/s
PVC
2mm
15mm/s
Asian gram force
2mm
m/s
Non-woven fabric
m
2mm/s
Chloroprene rubber
5mm
Easy to cut
Corrugated paper
8mm
Easy to cut
Plywood
2.5mm
Easy to cut
Glass fiber resin
1.5mm
Easy to cut
Thick cardboard
1.5mm
Easy to cut
Linen
2mm
Easy to cut
Urethane
m
Easy to cut
Nylon/PP
m
Easy to cut

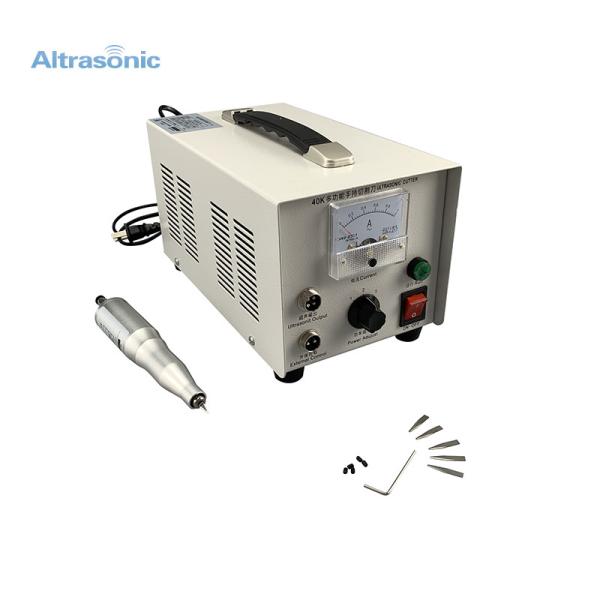

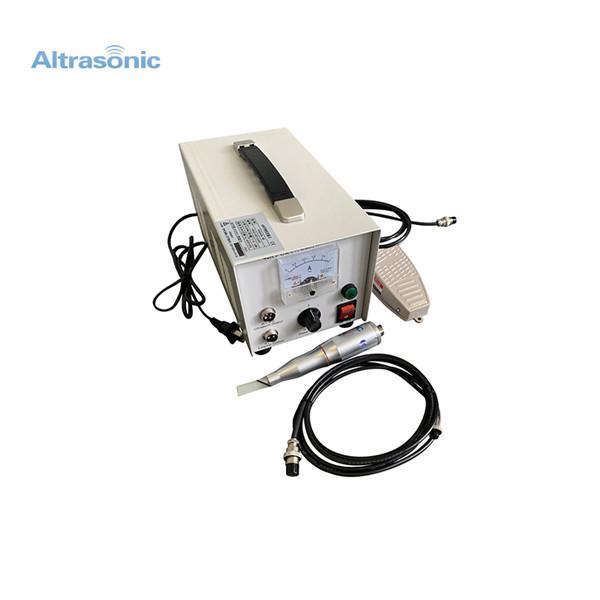

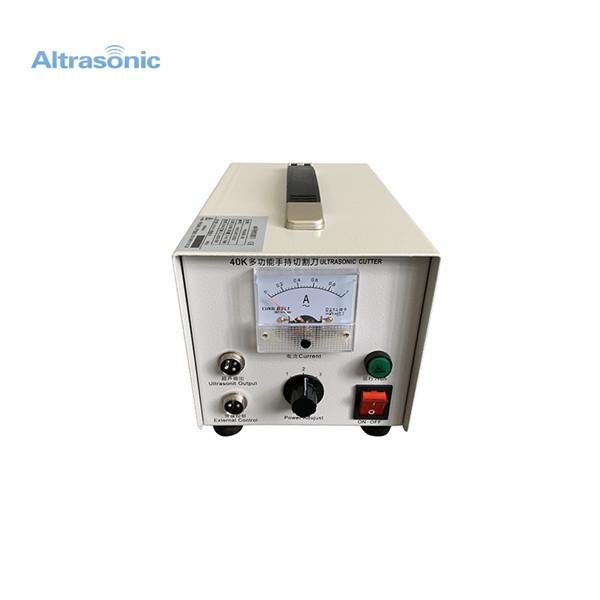

Product display:

40hkz 100W Portable Ultrasonic Cutter for Non-woven Fabric and Milk Carton Cutting

40hkz 100W Portable Ultrasonic Cutter for Non-woven Fabric and Milk Carton Cutting
