Specifications
Brand Name :
Altrasonic
Model Number :
HSS17B-ZB
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
1000pcs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Wooden cases
Name :
Ultrasonic homogenizer
Frequency :
20Khz
Power :
2000W
Weight :
35Kg
Tip :
Different size optional
Materials :
Titanium
Power supply :
Digital mode
Power adjust :
can be changed from 10% to 99%
Amplitude :
can be changed from 10% to 99%
Tuning :
Auto tuning
Capacity :
Less than 5000ml
Description

Custom Lab Ultrasonic Homogenizer 2Kw , High Speed Homogenizer Auto-Tuning

Specifications:

Model HSS11B-EB HSS17B-ZB HSS57B-ZB HSS59B-ZB HSS61B-ZB
Frequency 40±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz
Power 100 W 1000 W 1500 W 2000 W 3000 W
Voltage 220±10% V 220±10% V 220±10% V 220±10% V 220±10% V
Temperature 150 ℃ 150 ℃ 300 ℃ 300 ℃ 300 ℃
Pressure Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max Capacity > 100M L/Min > 5 L/Min > 15 L/Min > 20 L/Min > 30 L/Min
Material Of Tip Head Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy



Ultrasonic:

The principle of ultrasonic homogenizer is make the ultrasound radiate in liquid and powder mixing solution media, the liquid promptly flow produce a large number of tiny air bubbles, these tiny bubbles formed in the
negative pressure zone along the longitudinal ultrasonic radiation and grow continuously, and quickly closed in the positive pressure area.this effect is known as "cavitation" phenomenon, in this process,
closed bubbles can form thousands of instantaneous high pressure.

Automatic Tuning

All of our Ultrasonic Homogenizers models employ a propriety feedback system, insuring that the generator is always working at it maximum efficiency regardless of the application. There is no need for constant adjustment by the operator. The percentage of ultrasonic power emitted is indicated by the output LED meter, enabling accurate reproducible results.

Competitive Advantage:

  1. Custom System Designs and Consulting,
  2. Active Ultrasonics provides consulting services and custom reactor designs,
  3. High amplitude probe,
  4. Unrestricted flow-through cylindrical systems,
  5. High Power Probe Sonicator.


Applications:

  1. Disruption of cells, bacteria and tissues,
  2. Adjustment of ribosome,
  3. Cutting of actinomycetes and fungal threads,
  4. Acceleration of a chemical reaction,
  5. Extraction of special components by disruption of tissue fragments,
  6. Emulsification and dispersion in samples (a mixture of liquids such as water-oil, water-silver, etc.),
  7. Insatiable Pursuit of High Grade Design for More Efficient Energy Conversion can achieve a high energy conversion efficiency which generates almost no heat. A unique circuit and a structure adopted in the design to minimize the power loss can control heat generation of the converter which may disturb the oscillation effect of ultrasonic waves and have adverse influence on the sample.

WHY CHOOSE ALTRASONIC ?

  1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
  2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
  3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.
  4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
  5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.

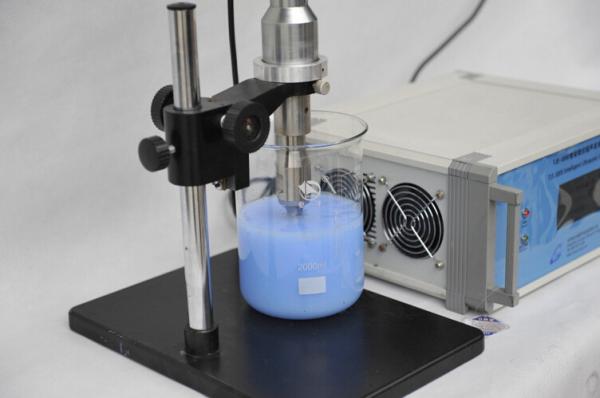

20khz 2kw laboratory auto-tuning capabilities Ultrasonic homogenizer with different size tips
