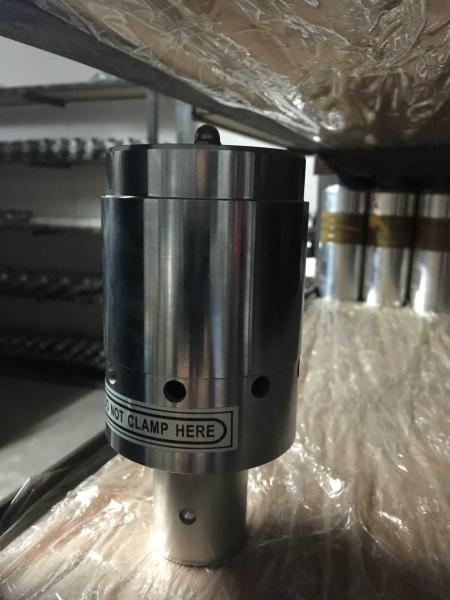

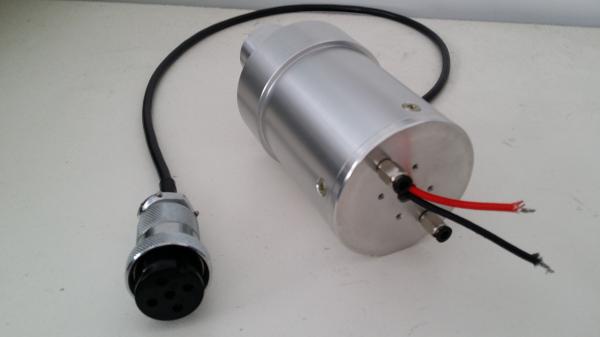

OEM 6 Pcs High Output Ultrasonic Converter For Ultrasonic Laminating Machine
OEM 6 Pcs High Output Ultrasonic Converter For Ultrasonic Laminating Machine
OEM 6 Pcs High Output Ultrasonic Converter For Ultrasonic Laminating Machine
OEM 6 Pcs High Output Ultrasonic Converter For Ultrasonic Laminating Machine
OEM 6 Pcs High Output Ultrasonic Converter For Ultrasonic Laminating Machine
OEM 6 Pcs High Output Ultrasonic Converter For Ultrasonic Laminating Machine
Specifications
Brand Name :
Altrasonic
Model Number :
HSD41S30
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
10,000 units per month
Delivery Time :
3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
Ultrasonic converter
Frequency :
20 khz
Ceramic diameter :
50 mm
Capacitance :
19-21 nf
Power :
4000watt
Application :
welding machine
Amplitude :
20 um
Ceramic disc :
6 pcs
Material :
Titanium, Aluminum materials optional
Protective housing :
Aluminum and stainless steel optional
Description

OEM 6 Pcs High Output Ultrasonic Converter For Ultrasonic Laminating Machine

Specifications:

Model

HSD41S30

Frequency

20 khz

Output power

4000 watt

Joint bolt

1/2-20 UNF

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

6 pcs

Capacitance

19-21 nf

Amplitude

20 um

Application

welding machine

Description:

The 2000 Watt 20 KHz Ultrasonic Converters for ultrasonic welding machine with lower cost, superior quality and value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.

Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).

Applied Range:

Replacement ultrasonic converter for Branson , Herrman, Dukane or other types.

Competitive Advantage:

1. Titanium materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Industrial Application :

High Output Ultrasonic Converter In Ultrasonic Laminating Machine , OEM accept
