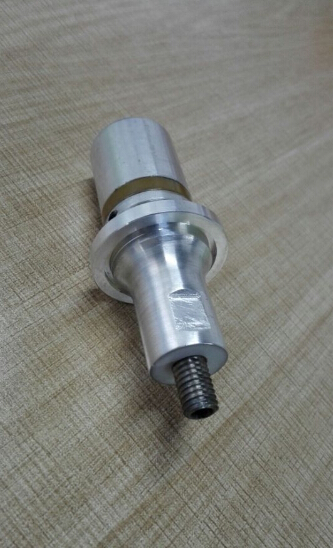

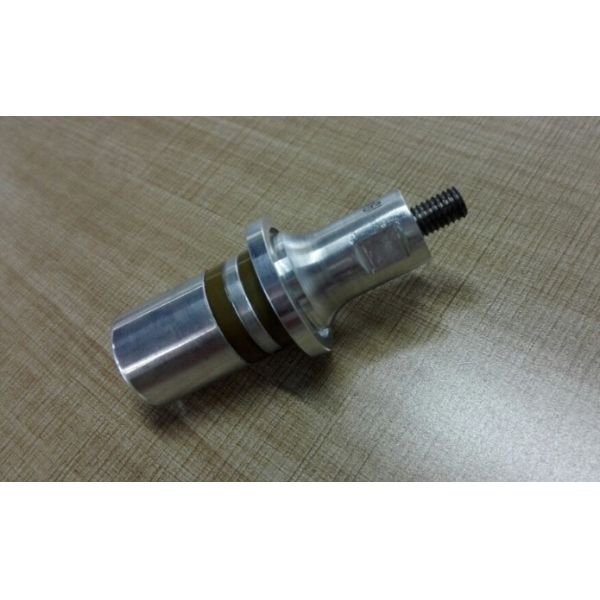

35khz Ultrasonic Transducers For Rinco Plastic Welder , 300w To 900w
35khz Ultrasonic Transducers For Rinco Plastic Welder , 300w To 900w
35khz Ultrasonic Transducers For Rinco Plastic Welder , 300w To 900w
35khz Ultrasonic Transducers For Rinco Plastic Welder , 300w To 900w
35khz Ultrasonic Transducers For Rinco Plastic Welder , 300w To 900w
35khz Ultrasonic Transducers For Rinco Plastic Welder , 300w To 900w
Specifications
Brand Name :
Altrasonic
Model Number :
HSR2535-2D
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
10,000 units per month
Delivery Time :
3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
Ultrasonic converter
Frequency :
35 khz
Ceramic diameter :
25 mm
Joint bolt :
M8*1.25
Power :
300-900watt
Application :
welding machine
Amplitude :
10 um
Ceramic disc :
2 pcs
Material :
Titanium, Aluminum materials optional
Protective housing :
Aluminum and stainless steel optional
Description

35khz Ultrasonic Transducers For Rinco Plastic Welder , 300w To 900w

Specifications:

Model

HSR2535-2D

Frequency

35 khz

Output power

300watt - 900watt

Joint bolt

M8*1.25

Ceramic disc Diameter

25 mm

Quantity of Ceramic discs

2 pcs

Bolt

Fixing with transducer body

Amplitude

10 um

Application

welding machine

Description:

The Replacement Converter for Rinco 35khz machine Direct replacement for the Rinco 35khz machine that delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure

performance that duplicates the OEM part.

Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced

(one time).

Applied Range:

Replacement ultrasonic converter for 35khz Rinco machine, for use with 35KHz welding machine.

Competitive Advantage:

1. Titanium materials and Aluminum materials optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Industrial Application :

35khz Ultrasonic Converter For Rinco Plastic Welder , 300w to 900w , Diameter 25mm

35khz Ultrasonic Transducers For Rinco Plastic Welder , 300w To 900w

35khz Ultrasonic Transducers For Rinco Plastic Welder , 300w To 900w
