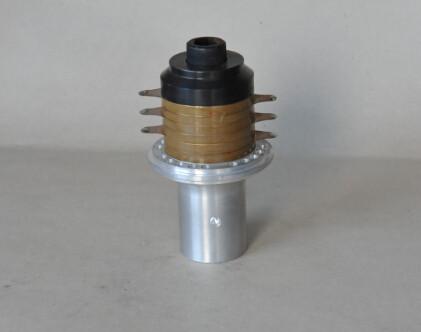

4200 Watt Piezoelectric Transducer Ultrasonic With 6 Ceramic Rings , 20khz
4200 Watt Piezoelectric Transducer Ultrasonic With 6 Ceramic Rings , 20khz
4200 Watt Piezoelectric Transducer Ultrasonic With 6 Ceramic Rings , 20khz
4200 Watt Piezoelectric Transducer Ultrasonic With 6 Ceramic Rings , 20khz
Specifications
Brand Name :
Altrasonic
Model Number :
HS-5020-6D
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T or western Union
Supply Ability :
10,000 units per month
Delivery Time :
3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
Ultrasonic welding transducer
Frequency :
20 khz
Ceramic diameter :
50 mm
Capacitance :
19-21nf, 22.5-25nf
Power :
4200 watt
Application :
welding machine
Amplitude :
12 um
Ceramic disc :
6 pcs
Material of booster :
Titanium, Aluminum, Steel materials optional
Protective housing :
Aluminum and stainless steel optional
Connect screw :
1/2-20UNF
Description

4200 Watt Piezoelectric Transducer Ultrasonic With 6 Ceramic Rings , 20khz

Specifications:

Model

HS-5020-6z

Frequency

20 khz

Output power

4200 watt

Joint bolt

1/2-20UNF

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

6 pcs

Capacitance

19-21nf, 22.5-25nf

Amplitude

12 um

Application

welding machine

Description:

The 4200 watt Piezoelectric Ultrasonic Welding Transducer with 6 Ceramic Rings, 20khz is applied to different type ultrasonic welding machine, standard welding machine, NTK type welding machine, Branson type. And can be connected with different type welding horn.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.

Competitive Advantage:

1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

Industrial Application :

4200 watt Piezoelectric Ultrasonic Welding Transducer with 6 Ceramic Rings, 20khz

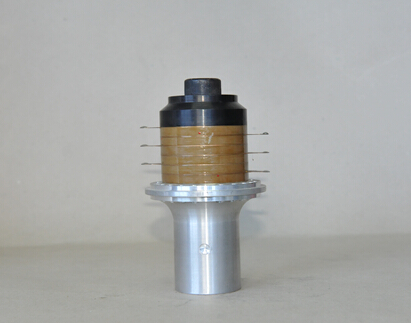

4200 Watt Piezoelectric Transducer Ultrasonic With 6 Ceramic Rings , 20khz

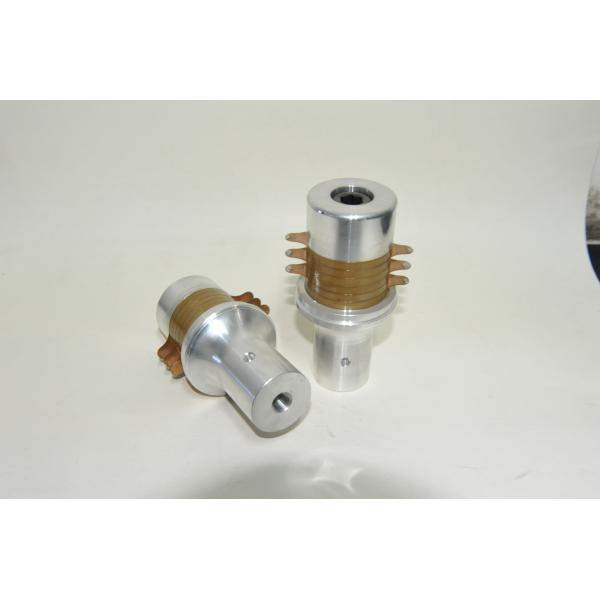

4200 Watt Piezoelectric Transducer Ultrasonic With 6 Ceramic Rings , 20khz

What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
