Automatic Ultrasonic Welding Machine Ultrasonic Generator For Face Mask

Description:

Special ultrasonic system for mask machine The ultrasonic vibration system can output ultrasonic vibration energy and can be applied to a variety of systems. The system needs to cooperate with other machinery such as motion and pressure to complete the welding task. Equipped with a fixed flange, the installation is simple. When the system is working, an external switch signal triggers the system. The system completes a welding process according to a preset time.

Specification:

Product name:Ultrasonic system for mask making machine
Frequency: 20KHZ
Ultrasonic Power: 2000W
Power supply: AC 220 V
Packing: Wooden Case.
Application range: Ultrasonic welding machine, Non-woven fabric compound machine, Mask making machine, Sealing machine.

Functions of mask ultrasonic machine:

1. Using microcomputer control and digital frequency synthesis technology, the frequency is automatically tracked and adjusted;

2. Digital display ultrasonic power, continuously adjustable, more flexible and convenient to use;

3. Design the timing system, the working time is digitally displayed and adjustable;

4. The special ultrasonic system for the mask machine has a frequency sweep function, and the frequency sweep speed and frequency sweep width are digitally adjusted to effectively protect the steel plate;

5. Set PLC remote control interface to facilitate connection with other control equipment;

6. Constant power output stabilization technology, which is not affected by voltage and load, and protects the equipment;

7. Full-touch humanized button control, convenient and quick debugging operation.

8, more efficient, more environmentally friendly, output useful power of more than 98%.

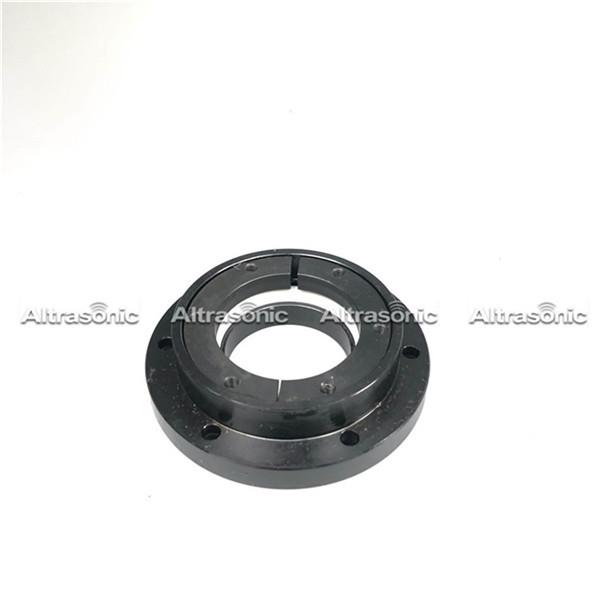

Detailed Image:
