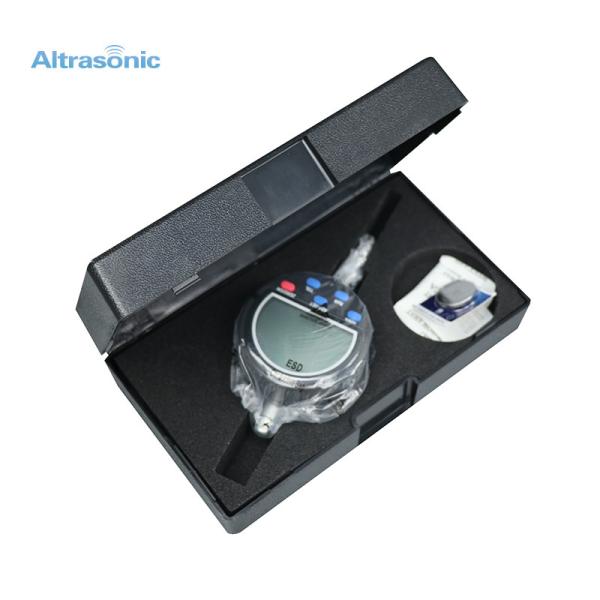

200 Khz Ultrasonic Amplitude For Testing Ultrasonic Products
200 Khz Ultrasonic Amplitude For Testing Ultrasonic Products
200 Khz Ultrasonic Amplitude For Testing Ultrasonic Products
200 Khz Ultrasonic Amplitude For Testing Ultrasonic Products
Specifications
Brand Name :
Altrasonic
Model Number :
HS-520V
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
200 Set per month
Delivery Time :
7 workdays after receipt of the full payment.
Packaging Details :
carton
Frequency Range :
10 K~200KHZ
Measuring Range :
More Than 3 μm
Supply Power :
Built-in Power Supply (DC 3V)
Precision :
2.5%
Type of Indicator :
Digital
Test direction :
Up or down
Warranty :
1 year
Certificate :
CE
Description

200 Khz Ultrasonic Amplitude For Testing Ultrasonic Products

Specifications:

Model HS-520V
Precision 2.5%
Sensitivity 1 μm
Measuring Range More than 3 μm
Frequency Range 10 KHz – 200 KHz
Supply Power Built-in power supply (DC 3V)
Type of Indicator Digital

Test direction

Up or down

Description:

Consistent and correct amplitude is one of the most important factors in achieving a high-quality ultrasonic weld. The Amplitude Gauge makes measuring and setting that amplitude easy. Simply bring the gauge into contact with the ultrasonic horn, press the welder test button and read the total amplitude in microns on the dial.

Features:

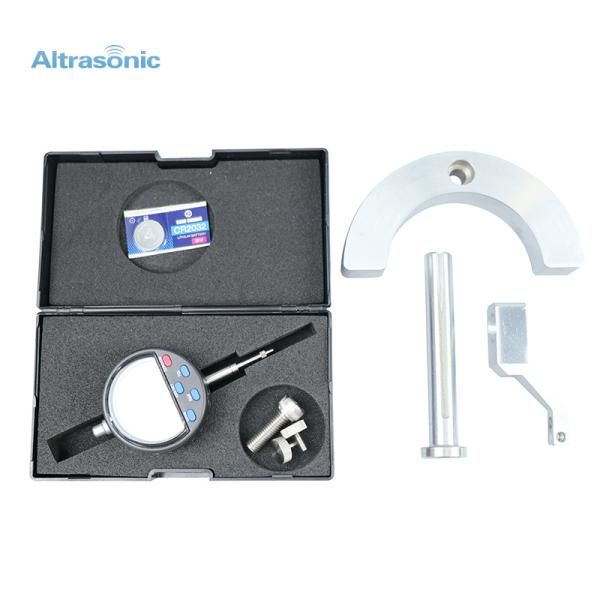

Exquisite design: the device is small in size, only composed of the meter head and the bracket, without external power supply
Reasonable structure: suitable for measuring the output amplitude of various ultrasonic welding equipment
Simple operation: simple steps

200 Khz Ultrasonic Amplitude For Testing Ultrasonic Products200 Khz Ultrasonic Amplitude For Testing Ultrasonic Products200 Khz Ultrasonic Amplitude For Testing Ultrasonic Products

200 Khz Ultrasonic Amplitude For Testing Ultrasonic Products

200 Khz Ultrasonic Amplitude For Testing Ultrasonic Products200 Khz Ultrasonic Amplitude For Testing Ultrasonic Products
