255mm Probe 25kHz Ultrasonic Cutting Machine With Digital Generator
255mm Probe 25kHz Ultrasonic Cutting Machine With Digital Generator
255mm Probe 25kHz Ultrasonic Cutting Machine With Digital Generator
255mm Probe 25kHz Ultrasonic Cutting Machine With Digital Generator
255mm Probe 25kHz Ultrasonic Cutting Machine With Digital Generator
255mm Probe 25kHz Ultrasonic Cutting Machine With Digital Generator
Specifications
Brand Name :
Altrasonic
Model Number :
HS-C25
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000 units/month
Delivery Time :
10 work days
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Model :
HS-C25
Frequency :
25kHz
Power :
500w
Cutting material :
Non-metal thin film materials
Total length of ultrasonic probe :
255mm
Material of cutting :
Steel
Cable length :
150-300cm
Cutting thickness range :
0～12mm
Description

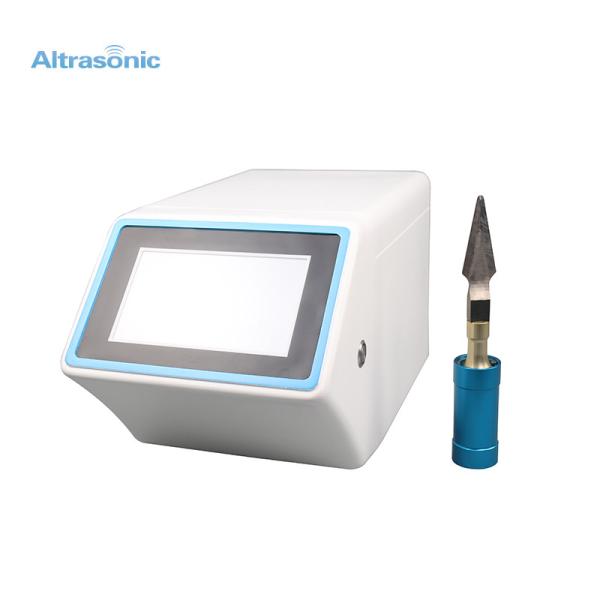

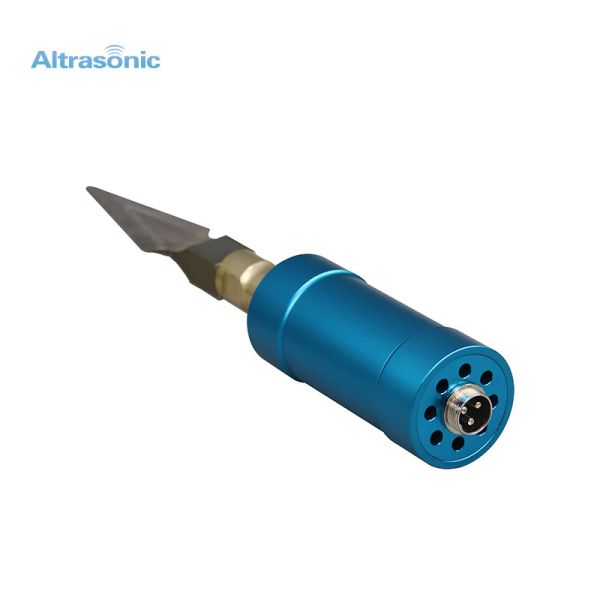

255mm Probe 25kHz Ultrasonic Cutting Machine With Digital Generator

Products Description:

It is suitable for cutting thick, thick, long and other materials that are not convenient to set up cutting boards. Such as raw rubber slitting, pipe cutting, frozen meat, candy, chocolate cutting, printed circuit board and so on. In order to meet the needs of embossing and cutting, adding a cylindrical flower wheel on the cutting chopping board can cut endless patterns and patterns with low cost and high efficiency. This cutting method is suitable for the cutting of sheet-like materials, such as various trademarks, clothing laces, cloth cutting, decorative beads cutting, natural fibers, synthetic fibers, non-woven fabrics, man-made resins, paper, film cutting, slitting, and so on.

Specification:

Item No HS-C25
Frequency 25kHz
Power 500W
Input AC110-240V, 50/60Hz
Cutting material Non-metal thin film materials
Material of cutting Die steel
Total length of ultrasonic probe 255mm
Cable length 150-300cm
Cutting thickness range 0-12mm

Main features:

■ Automatic resonance point, automatic frequency sweep tracking within the frequency range of 19-25KHz.
■ Automatic amplitude compensation, which can automatically work at the best frequency point and output point according to the fluidity of the sample.
■ Adopt color industrial touch screen controller, all functions are integrated display.
■ Scientific design, 10 groups of users store settings and realize directly on a single machine.
■ Independent on/off pulse, with three modes of continuous use, pulse, and timed continuous ultrasound.

Conditions of use:

1. Ambient temperature: 0～60℃
2. Relative humidity: no more than 85% (T=20℃)
3. Power supply: 220V/50Hz±10%
4. Cutting knife temperature: 0～120℃
5. Processing object: non-metal thin film materials

Detailed images:

255mm Probe 25kHz Ultrasonic Cutting Machine With Digital Generator255mm Probe 25kHz Ultrasonic Cutting Machine With Digital Generator

255mm Probe 25kHz Ultrasonic Cutting Machine With Digital Generator255mm Probe 25kHz Ultrasonic Cutting Machine With Digital Generator
