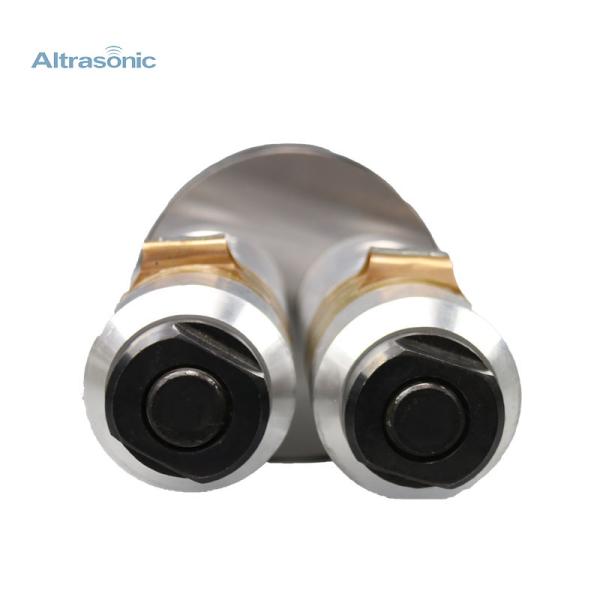

15khz 4200w Ultrasonic Double Transducer With Booster
15khz 4200w Ultrasonic Double Transducer With Booster
15khz 4200w Ultrasonic Double Transducer With Booster
15khz 4200w Ultrasonic Double Transducer With Booster
Specifications
Brand Name :
Altrasonic
Model Number :
HS-6015-4ZD
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5,000 units per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
Ultrasonic Welding Transducer
Ceramic Diameter :
60mm
Type :
Standard Type
Frequency :
15khz
Booster Color :
Gray And Black Optional
Application :
Welding Big Plastic Samples
Description

15khz 4200w Ultrasonic Double Transducer With Booster

Description:

Altrasonic applies the highest standards of quality and safety during development and in the manufacture of ultrasonic converters. These high standards which we always strive to maintain and evolve are a key part of our success. And our customers benefit from them especially.

Specifications:

Model HS-6015-4Z double
Frequency 15khz
Output power 4200watt
Joint bolt M20 1.5
Ceramic disc Diameter 60 mm
Quantity of Ceramic discs 8 pcs
Capacitance 8-10 nf ,10-12nf , 12.5-13.5nf
Amplitude 30-40 um
Application Welding

Competitive Advantage:

1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation

5. One year maintaining service

Key Features:

· Power range from100W to 6000 W

· Frequency range from 15 kHz to 70 kHz

· 98% efficiency

· Tough stainless steel casing

· Easy to assemble without special tools

· Compressed air cooling connection*

· good construction

· Piezoelectric element offer a high speed of vibration.

. large range of working temperature

Detailed Images:

15khz 4200w Ultrasonic Double Transducer With Booster

Service

We provide a wide range of high quality ultrasonic welding transducer, No matter what kind of transducer you are looking for,We can make sure that you can find one at here. it is by utilizing piezo-electric effect to convert electrical energy into mechanical energy.the bolt-on type can make sure that the transducer can produce stable ultrasonic when load changes.

15khz 4200w Ultrasonic Double Transducer With Booster15khz 4200w Ultrasonic Double Transducer With Booster15khz 4200w Ultrasonic Double Transducer With Booster
