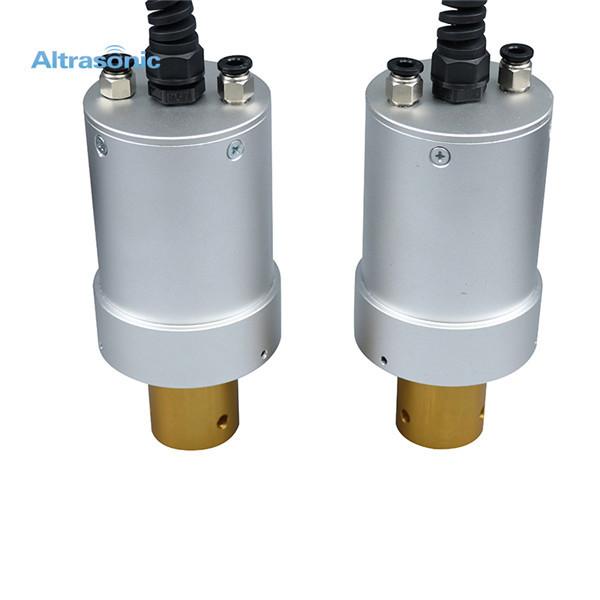

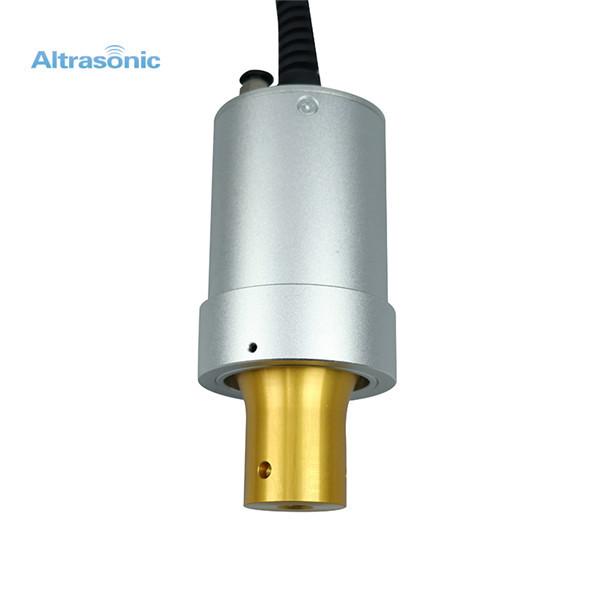

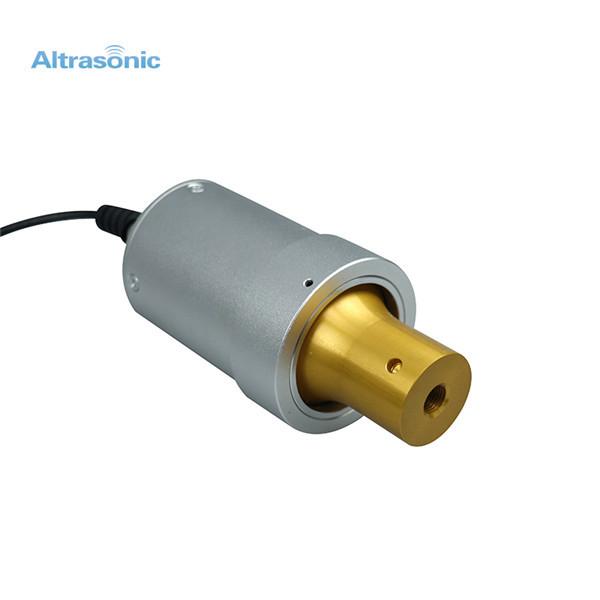

Replacement Dukane 41S30 20 Khz Ultrasonic Transducer Valve Body Stainless Outer Cover

Specifications:

Description:

The 20Khz high power ultrasonic welding transducer , replacement converter for Dukane 41S30​ is applied to Dukane type ultrasonic welding machine.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Applied Range:
Ultrasonic transducers are widely used. They are divided into industry, agriculture, transportation, life, medical and military according to the applied industry. According to the functions realized, it is divided into ultrasonic processing, ultrasonic cleaning, ultrasonic detection, detection, monitoring, telemetry, remote control, etc.; according to the working environment, it is divided into liquid, gas, biological, etc.; according to the nature, it is divided into power ultrasonic, ultrasonic detection, ultrasonic imaging, etc. .

Competitive Advantage:

1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
