Titanium 40khz Ultrasonic Cutting Machine For Rubber , Ultrasonic Cutting Devices
Titanium 40khz Ultrasonic Cutting Machine For Rubber , Ultrasonic Cutting Devices
Titanium 40khz Ultrasonic Cutting Machine For Rubber , Ultrasonic Cutting Devices
Titanium 40khz Ultrasonic Cutting Machine For Rubber , Ultrasonic Cutting Devices
Titanium 40khz Ultrasonic Cutting Machine For Rubber , Ultrasonic Cutting Devices
Titanium 40khz Ultrasonic Cutting Machine For Rubber , Ultrasonic Cutting Devices
Specifications
Brand Name :
Altrasonic
Model Number :
HS-CR40
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
5,000 units per month
Delivery Time :
200 Set per month
Packaging Details :
carton
Frequency :
40khz
Blade :
82MM
Material :
Titanium
Power :
500w
Weight (KG) :
8KG
Application :
Rubber/Plastic/Food
Description

Titanium 40khz Ultrasonic Cutting Machine For Rubber , Ultrasonic Cutting Devices

Description:

The ultrasonic cutter is composed of a “transducer” that generates vibration and an “oscillator” that drives the transducer. A piezoelectric element is used for the transducer. When voltage is applied, the piezoelectric element displaces the transducer by a few micrometers. Periodically applying voltage generates vibration. Each object has its special frequency, by which the object is stable and easy to vibrate. By adding an external force that corresponds to that special frequency, a small force can obtain a large vibration. This phenomenon is called resonance.

In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to wring the cross-sectional area

Specificion:

Frequency 40Khz
Power 500W 800W
Inupt AC110-240V, 50/60Hz
Power Controller stepping or continuous
Material of Cutting Head aluminum alloy, stainless steel, titanium alloy, alloy steel.
Machine Wight 4 kg-16KG
Accessories foot switch, additional blade
Cooling Device compressed air mouth can be installed.
Cable Length 2M or customized
Foot Switch available

Application:

1. For thermal plastic gate cutting and flush cutting.

2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.

6. For package material cutting

7. For the automotive industry cutting

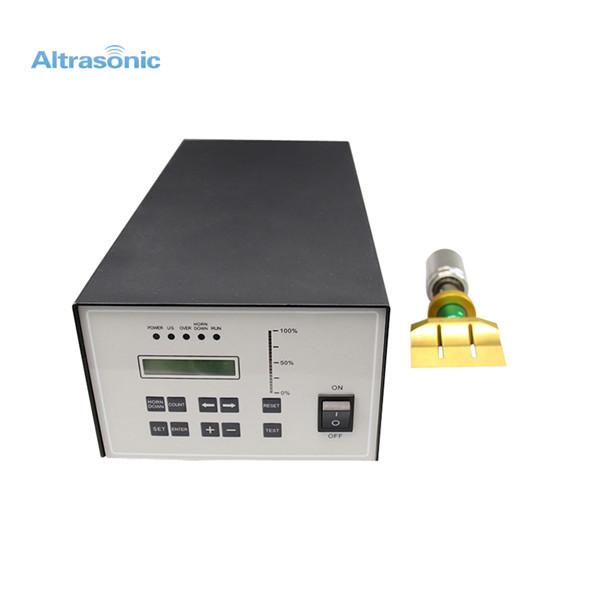

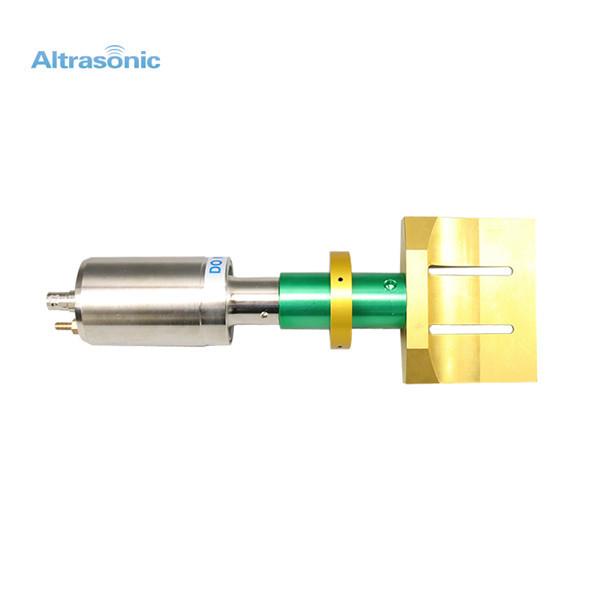

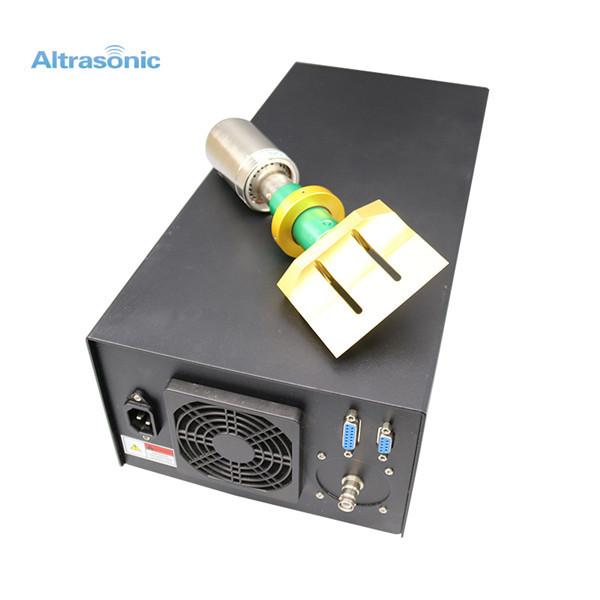

Detailed Image:

Titanium 40khz Ultrasonic Cutting Machine For Rubber , Ultrasonic Cutting Devices
