Titanium Ultrasonic Welding Transducer 20 Khz Replacement Branson 803
Titanium Ultrasonic Welding Transducer 20 Khz Replacement Branson 803
Titanium Ultrasonic Welding Transducer 20 Khz Replacement Branson 803
Titanium Ultrasonic Welding Transducer 20 Khz Replacement Branson 803
Titanium Ultrasonic Welding Transducer 20 Khz Replacement Branson 803
Titanium Ultrasonic Welding Transducer 20 Khz Replacement Branson 803
Specifications
Brand Name :
Altrasonic
Model Number :
HSB803
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
5000 pieces/month
Delivery Time :
7 workdays after receipt of the full payment.
Packaging Details :
Packed in wooden case
Ceramic Diameter :
50 Mm
Joint Bolt :
1/2-20unf
Frequency :
20 Khz
Qty Of Ceramic :
4 Pcs Or 6pcs
Output Power :
1500 Watt
Max.Amplitude :
20 Um
Application :
Welding Machine
Description

Titanium Ultrasonic Welding Transducer 20 Khz Replacement Branson 803

Description:

The 20khz titanium ultrasonic welding transducer replacement brason 803 Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to

ensure performance that duplicates the OEM part.

Specifications:

Model HS-B803
Frequency 20 khz
Output power 1500 watt
Joint bolt 1/2-20unf
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs or 6pcs
Capacitance 11.5 - 12.5 nf
Amplitude 20 um
Application welding machine

Product features:

All-new made in China

Meets or exceeds all Branson specifications

Directly replaces Branson803

Certified materials

Made in ISO-9002 registered facility

Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be

replaced (one time).

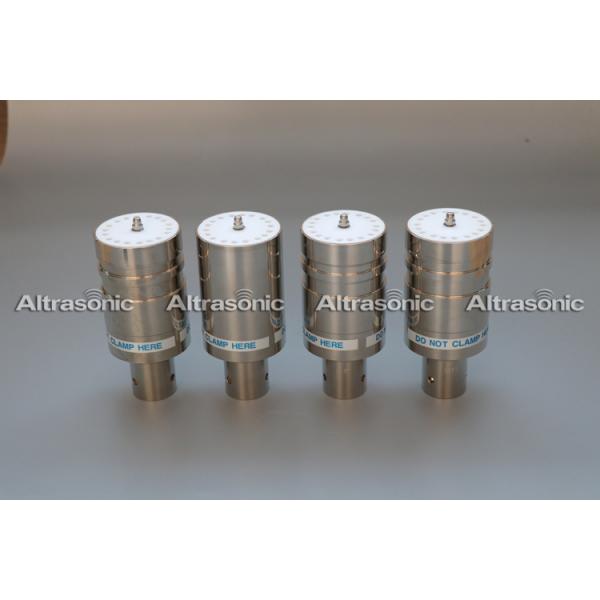

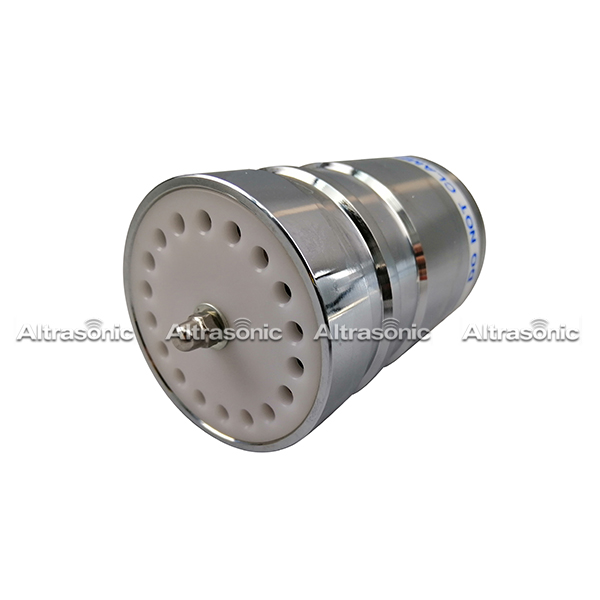

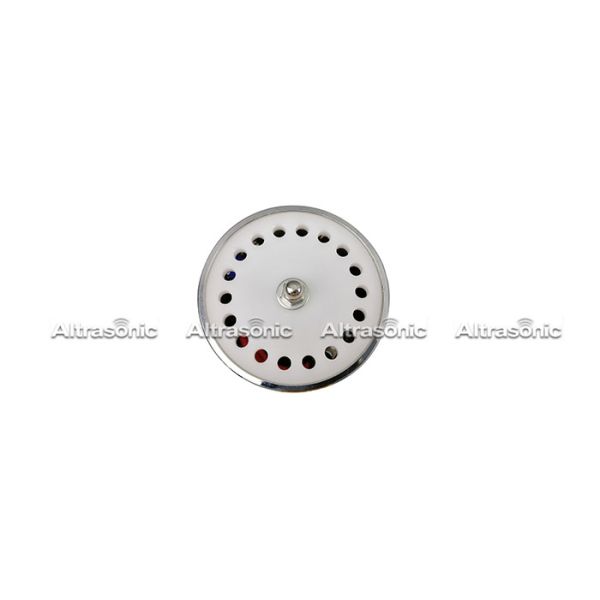

Detailed Images:

Titanium Ultrasonic Welding Transducer 20 Khz Replacement Branson 803Titanium Ultrasonic Welding Transducer 20 Khz Replacement Branson 803Titanium Ultrasonic Welding Transducer 20 Khz Replacement Branson 803

What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Titanium Ultrasonic Welding Transducer 20 Khz Replacement Branson 803
