High Fequency & Impedance Measuring Instrument , Ultrasonic Device High Efficiency
High Fequency & Impedance Measuring Instrument , Ultrasonic Device High Efficiency
High Fequency & Impedance Measuring Instrument , Ultrasonic Device High Efficiency
High Fequency & Impedance Measuring Instrument , Ultrasonic Device High Efficiency
High Fequency & Impedance Measuring Instrument , Ultrasonic Device High Efficiency
High Fequency & Impedance Measuring Instrument , Ultrasonic Device High Efficiency
Specifications
Brand Name :
Altrasonic
Model Number :
HS-520A
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
Within 7 working days
Packaging Details :
Packed in carton,PE foam inside
Frequency range :
1KHz~1MHz
Measurement Index :
All the parameters, the graph
Measurement Accuracy :
< 0.5%
Measurement Speed :
5s/one pass （600scan point）
Phase Resolution :
0.15 degree
Frequency Step :
0.1Hz～any
Power Supply :
AC100V～AC250V，50～60Hz, 30W
Application :
Ultrasonic device
Description

High Fequency & Impedance Measuring Instrument

Description:

The Ultrasonic Impedance Analyzer is a high-tech device dedicated to tuning, frequency analysis and testing of power ultrasonic transducers, horns (sonotrodes) and correlated devices. It is for these elements as an oscilloscope is for the electronics.

With the analyzer, the transducers and sonotrodes become just as measurable and adjustable as any other device.The Analyzer determines the operation frequency of the item to be tested and its impedance and current with the touch of a button. It’s quick and easy. With this quick and easily retrieved information, the user can perform the quality control of transducers, tuning of sonotrodes and ultrasonic horns, preventive and corrective maintenance of acoustic sets and much more

Features:

  1. High-speed impedance analyzer suitable for high-speed test system

  2. 0.1% accuracy, fast measurement(100 times/s)

  3. High comparability with test date of international brands

  4. Keyboard lock function, power data protection function

  5. Simplified Chinese and English operation interface

  6. Frequency response characteristics of impedance, scanning function, analysis function

  7. Support U disk upgrade instrument software

  8. 50 sets of test files in the instrument and 500 sets of test files on USB flash disk can be invoked at any time.

  9. Rich interface, RS232C, USB DEVICE, HANDLER, GPIB(optional)

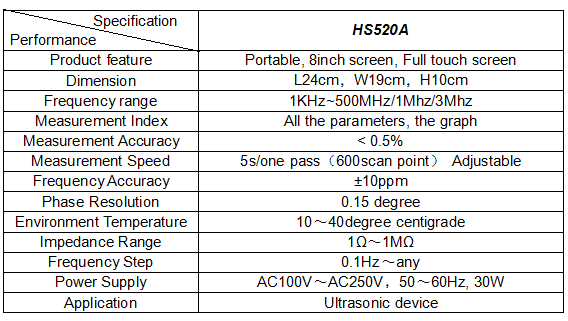

Specification:

High Fequency & Impedance Measuring Instrument , Ultrasonic Device High Efficiency

Application :

* Operation

* Sonotrode tuning

* Test of transducers

* Test of acoustic sets

* Test of piezo ceramics

* Predictive maintenance

High Fequency & Impedance Measuring Instrument , Ultrasonic Device High Efficiency

High Fequency & Impedance Measuring Instrument , Ultrasonic Device High Efficiency
