20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz
20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz
20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz
20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz
20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz
20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz
Specifications
Brand Name :
ALTRASONIC
Model Number :
HS-M20
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
Within 25 weekdays after receipt total amount
Packaging Details :
Carton or Wooden Case
Item No. :
BT40 Spindle
Frequency :
20kHz
Power :
500W
Amplitude :
10um
Speed :
3000r/min(more than 3000r/min need do dynamic balance)
Matching tool :
carbide end mill head Ф1-Ф1m; disk cutter Ф50
Power sadjusting :
Step or Continuous
Generator :
Digital generator

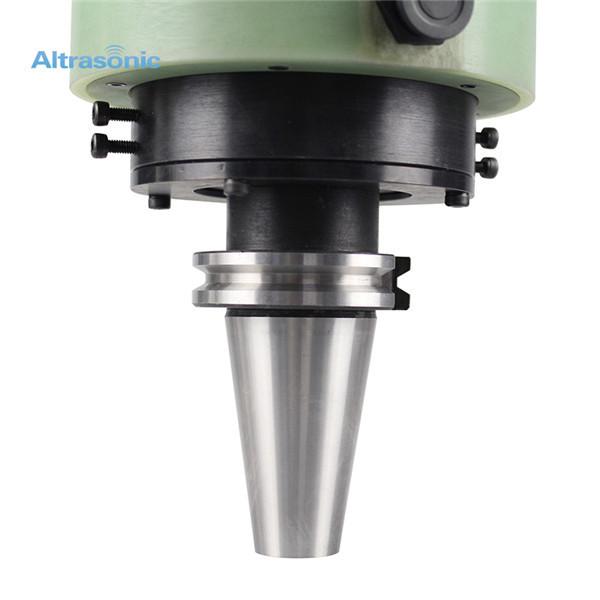

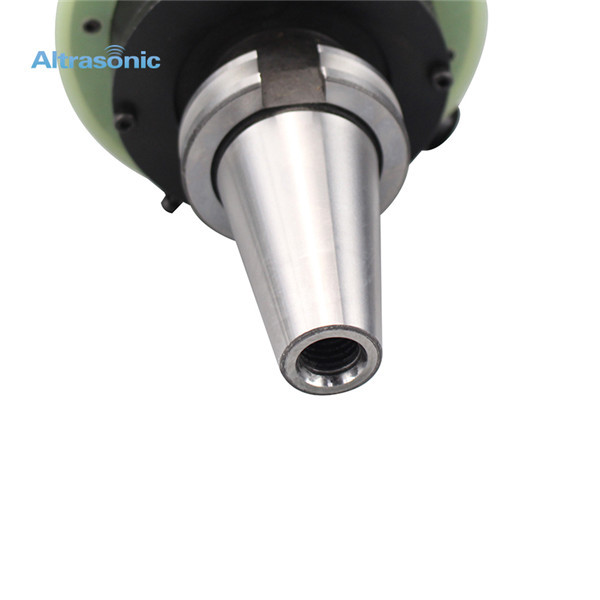

Product shape :
BT40 milling machine handle
Voltage :
220V/380V, 220V/50HZ
Description

20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz

Description:

Ultrasonic assisted machining system belong to the category of composite processing, make the tool, gently with a small force on the parts produced by transducer ultrasonic frequency of longitudinal vibration, and with the aid of the amplitude amplification, the amplitude drive tool face for ultrasonic vibration, force working liquid in the suspended particle collision with great speed and acceleration, polishing grinding surface processed.

The Principle of ultrasonic assisted mashining:

Ultrasonic machining offers a unique blend of capabilities, quality and material compatibility for the machining of engineered ceramics and advanced technical materials. The process is versatile, offering flexibility to meet a wide range of design requirements, and yields high-quality parts with little or no subsurface damage and no heat-affected zone.

20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz

Advantages:

1. The ultrasonic drive power adopts solid-state full crystal type and digital frequency display.
2. With automatic frequency tracking function, wide frequency modulation range, easy to adjust.
3. High reliability, with over-current, over-heating, detuning alarms, and digital frequency display.
4. It can process more brittle and rigid materials, and the roughness of the hole wall and plane is greatly improved after processing.

5. Compared with traditional machining, ultrasonic machining can reduce tool resistance, increase chip removal rate, and increase tool strength.

20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz

Application:

Crystal, precious stones, agate, jade, glass products, ceramic utensils and germanium, silicon, ferrite and other high hardness materials drilling and carving.

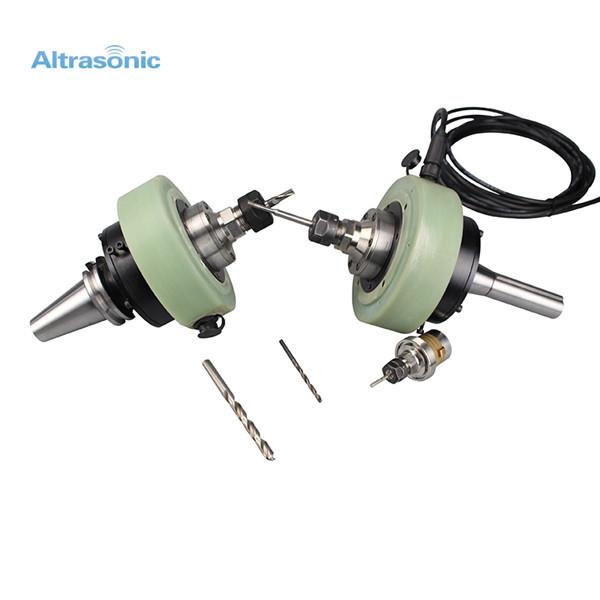

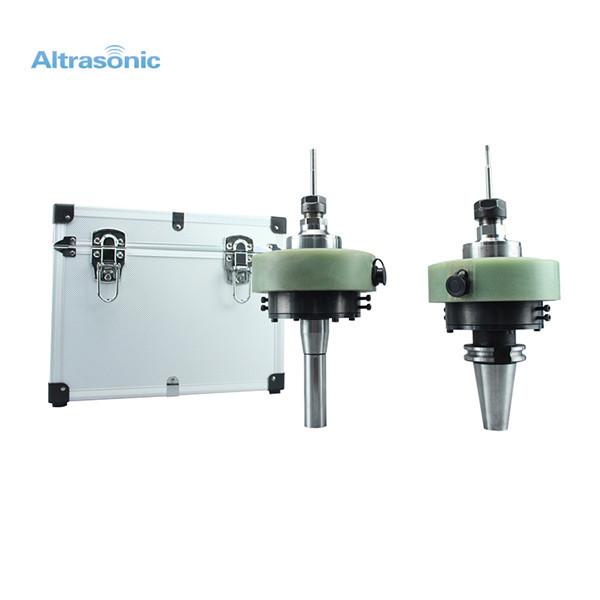

Product display:

20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz
