R8 Spindle Ultrasonic Assisted Machining Drilling System For Hard And Brittle Materials
R8 Spindle Ultrasonic Assisted Machining Drilling System For Hard And Brittle Materials
R8 Spindle Ultrasonic Assisted Machining Drilling System For Hard And Brittle Materials
R8 Spindle Ultrasonic Assisted Machining Drilling System For Hard And Brittle Materials
R8 Spindle Ultrasonic Assisted Machining Drilling System For Hard And Brittle Materials
R8 Spindle Ultrasonic Assisted Machining Drilling System For Hard And Brittle Materials
Specifications
Brand Name :
Altrasonic
Model Number :
HS-M2010
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
200 sets per month
Packaging Details :
Carton or Wooden case
Power :
500W / 1000W
Frequency :
20Khz / 40Khz
Application :
Ultrasonic Machining
Components :
Digital Generator, Transducer, Booster, Horn
Voltage :
220 V / 110V
Generator :
Digital Generator
Description

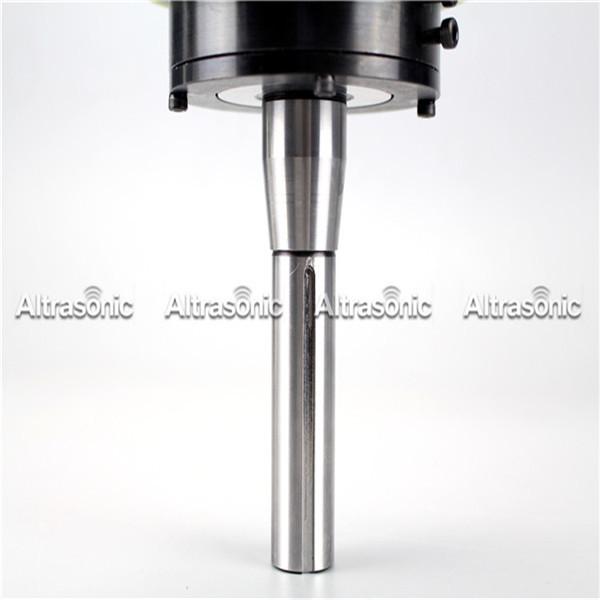

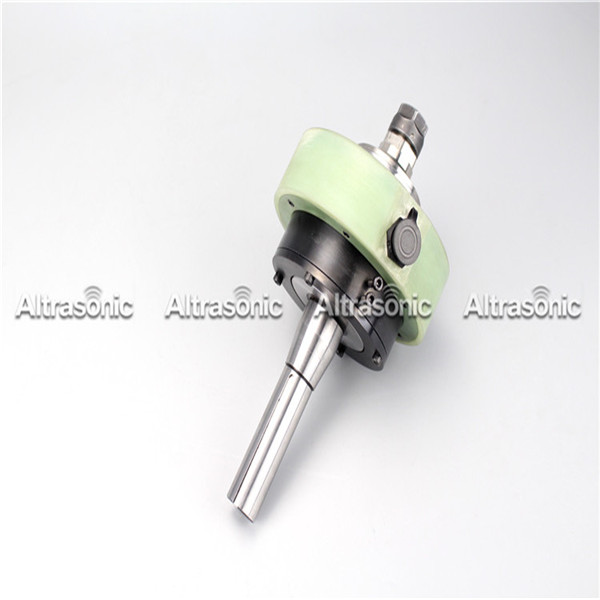

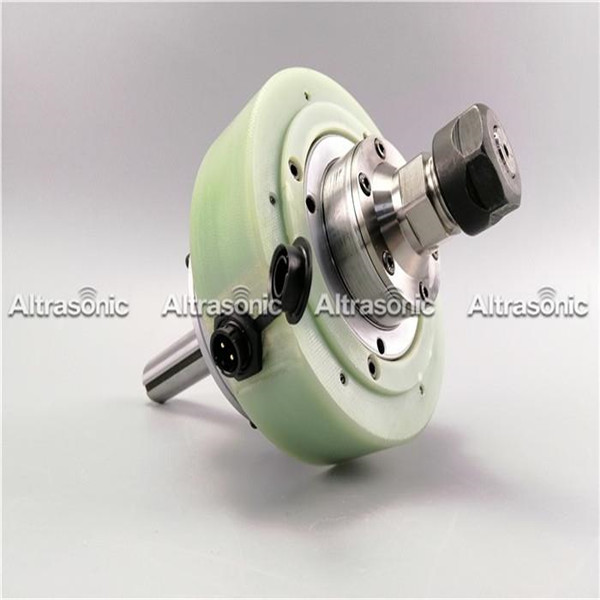

R8 Spindle Ultrasonic Assisted Drilling System For Hard and Brittle Materials

Specification:

Frequency 20Khz / 40Khz
Output Power 500W / 1000W
Voltage 220 V / 110V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic drilling
Generator Digital Generator
Length of cable 5M

Description:

Ultrasonic assisted machining is a special machineing in which the surface of workpiece material is gradually broken by using ultrasonic frequency as the tool for small amplitude vibration and by the action of the abrasive free in the liquid between it and the workpiece on the processed surface.

Competitive Advantage:

Ultrasonic assisted machining is superior to conventional turning, drilling and milling machines.Under the influence of ultrasonic vibration, the cutting force is reduced and the cutting performance is improved. At the same time, the tool head is more wear-resistant, wear less, and its life is greatly improved.

Application:

Ultrasonic-assisted machining has been widely used in the processing of hard and brittle materials such as ultrasonic cutting, drilling, nesting and engraving etc.

R8 Spindle Ultrasonic Assisted Machining Drilling System For Hard And Brittle Materials

R8 Spindle Ultrasonic Assisted Machining Drilling System For Hard And Brittle Materials
