Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye
Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye
Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye
Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye
Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye
Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye
Specifications
Brand Name :
Altrasonic
Model Number :
HSS20-3000
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000 PCS per month
Delivery Time :
7 days after receiving from the payment
Packaging Details :
Packed in wooden carton
Name :
Ultrasonic Sonochemistry
Frequency :
20Khz
Power :
3000W
Weight :
35Kg
Generator :
Digital Mode
Control :
Remote Control
Application :
Dispersing
Probe :
Different Size And Type Optional
Capacity :
More Than 100L
Description

Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye

Altrasonic equipment focused on the r&d of high power ultrasound applications. Altrasonic has absolute

leading core technology, the most stable and mature manufacturing technology, rich experience, can provide direct ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.

Ultrasound is a well-established method for particle size reduction in dispersions and emulsions. Ultrasonic processors are used in the generation of nano-size material slurries, dispersions and emulsions because of the potential in the deagglomeration and the reduction of primaries. These are the mechanical effects of ultrsonic cavitation. Ultrasonic can also be used to influence chemical reactions by the cavitation energy.

As the market for nano-size materials grows, the demand for ultrasonic processes at production level increases.

Specification:

Model HSS20-500 HSS20-1000-L HSS20-1000 HSS20-1500 HSS20-2000 HSS20-3000
Frequency 20Khz 20Khz 20Khz 20Khz 20Khz 20Khz
Power 500 W 1000 W 1000 W 1500W 2000W 3000 W
Voltage 220V 220V 220V 220V 220V 220V
Temperature 150 ℃ 150 ℃ 150 ℃ 300℃ 300℃ 300 ℃
Pressure Normal Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound ＞10 W/cm² ＞10 W/cm² ＞10 W/cm² ＞30 W/cm² ＞40 W/cm² ＞60 W/cm²
Max capacity ＞ 500ml/Min ＞ 2 L/Min ＞ 5L/Min ＞ 15L/Min ＞ 20L/Min ＞ 100 L/Min
Material of probe Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy

Introduction:

Ultrasound is a very effective processing method in the generation and application of nano-size materials. In general, ultrasonic cavitation in liquids may cause fast and complete degassing: initiate various chemical reactions by generating free chamical ions (radicals); accelerate chemical reactions by facilitating the mixing of reactant; produce highly concentrated emulsions or uniform dispersions of micron-size or nano-size materials. Ultrasound can be tested in lab and bench-up scale before the results are scaled up to the commercial level.

Advantages:

1. Core parts withTitanium materials.

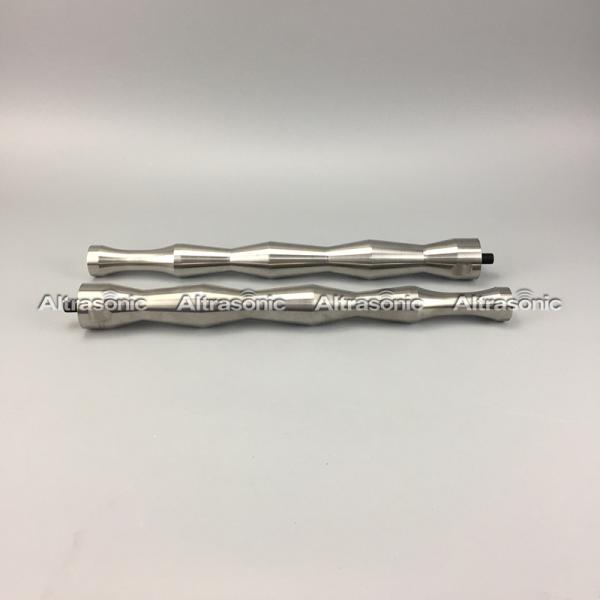

2. Ultrasonic horn with different size and type for selection

3. Matching with digital generator, auto-tuning, auto search frequency

4. Power adjustable from 1% to 99%

5. Frequency range from 19khz to 21khz

6. Lab and bench-up scale for testing

Innovation:

  1. T caps use replaceable, solve the problem of the tool head cavitation, T caps normal working hours more than 800 hours.
  2. Using the high-power ultrasonic transducer (1500w - 3000w), More stable performance, normal service life more than 10000 hours.
  3. Use of the digitally controlled power, to ensure that all the time in the best condition.
  4. Dumbbell-type tool head design, greatly improving the ultrasonic radiation power per unit area.
  5. The integrated piping made of stainless steel #316.
  6. Overall liquid flow-controllable
  7. Use network-based CAN-bus technology, all working parameters can have room remote control.

Applications:

  • Ultrasonic mixing
  • Ultrasonic dispersing and deagglomeration
  • Ultrasonic Emulsifying
  • Ultrasonic Sonochemistry
  • ......

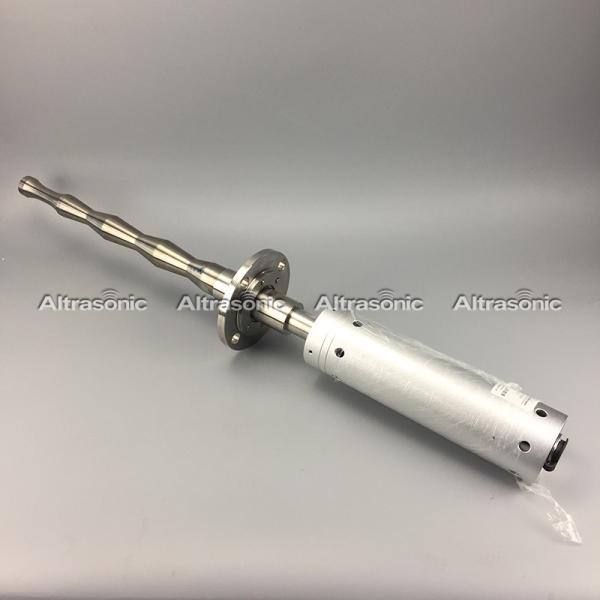

20Khz 3000Watt Ultrasonic Homogenizer For Nano Particle, Oil And Water,Dye

Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye

Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye

Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye

Tag: ultrasound sonochemistry,sonochemistry equipment
