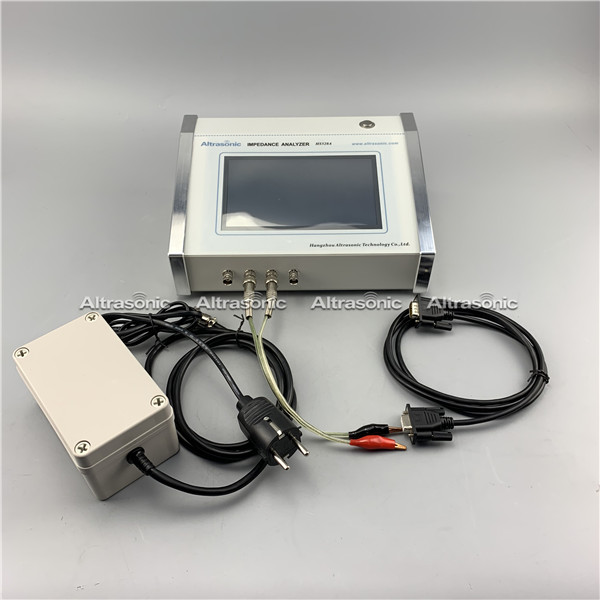

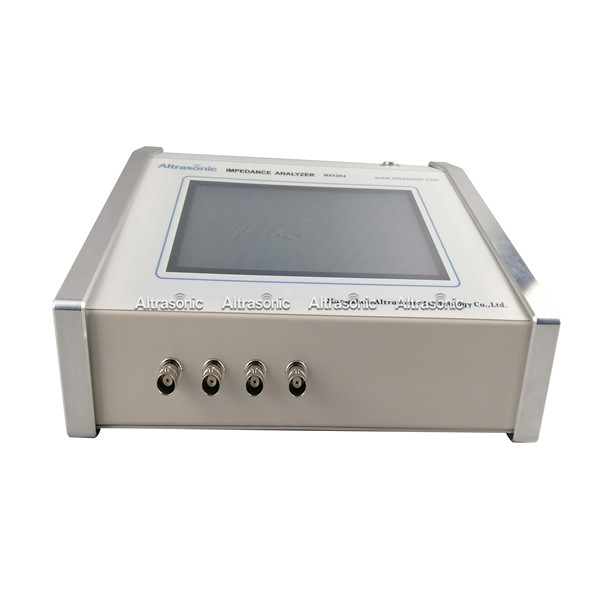

Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components
Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components
Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components
Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components
Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components
Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components
Specifications
Brand Name :
Altrasonic
Model Number :
HS520A
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
200 sets per month
Packaging Details :
Carton or Wooden case
Generator :
Digital
Frequency range :
1KHz~500MHz/1Mhz/hz
Measurement Speed :
5s/one pass(600scan point) Adjustable
Frequency Accuracy :
±10ppm
Phase Resolution :
0.15 degree
Impedance Range :
1Ω～1MΩ
Power Supply :
AC100V～AC250V,50～60Hz, 30W
Application :
Ultrasonic components/ultrasonic device
Description

1Khz-hz Ultrasonic Impedance Analyzer For Ultrasonic Components Precision Measuring Instruments

Specification:

Specification

Performance

HS520A

Product feature

Portable, 8inch screen, Full touch screen

Dimension

L24cm,W19cm,H10cm

Frequency range

1KHz~500MHz/1Mhz/hz

Measurement Index

All the parameters, the graph

Measurement Accuracy

< 0.5%

Measurement Speed

5s/one pass(600scan point) Adjustable

Frequency Accuracy

±10ppm

Phase Resolution

0.15 degree

Environment Temperature

10～40degree centigrade

Impedance Range

1Ω～1MΩ

Frequency Step

0.1Hz～any

Power Supply

AC100V～AC250V,50～60Hz, 30W

Application

Ultrasonic device

Description:

The HS-520A impedance analyzer can measure and evaluate the parameters and performance of various devices and devices such as piezoelectric ceramic sheets, piezoelectric transducers, and buzzers. Judging by the impedance-phase-frequency curve and the admittance circle, it is clear at a glance.

The impedance-phase-frequency curve and admittance circle of a normal product are shown in the following figure:

Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components

But not all of the device's graphics are as shown above. Here are the graphics for several problematic devices:

Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic ComponentsPrecision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic ComponentsPrecision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components

Scope of application:

All ultrasonic equipment that uses ultrasound

Electrical equipment, electronic components, etc.

Advantage:

● Easy to use, accurate and inexpensive, measurement accurace is extremely high

● Judging product defects by admittance circle and logarithmic curve at a glance

● Test data can be stored and printed on the computer, and the data can be traced back to the source.

● Printable impedance scan curve graphics for easy sample analysis and archiving

● One-click start test function, easy to operate, high production efficiency

Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic ComponentsPrecision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic ComponentsPrecision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components
