Digital Ultrasonic Liquid Homogenizer Machine 20kHz 500w
Digital Ultrasonic Liquid Homogenizer Machine 20kHz 500w
Digital Ultrasonic Liquid Homogenizer Machine 20kHz 500w
Digital Ultrasonic Liquid Homogenizer Machine 20kHz 500w
Digital Ultrasonic Liquid Homogenizer Machine 20kHz 500w
Digital Ultrasonic Liquid Homogenizer Machine 20kHz 500w
Specifications
Brand Name :
Altrasonic
Model Number :
HS-S20-500
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000 PCS per month
Delivery Time :
15 days after receiving from the payment
Packaging Details :
Packed in wooden carton
Name :
Ultrasonic Sonochemistry
Frequency :
20Khz
Power :
500W
Weight :
16Kg
Generator :
Digital Mode
Control :
Remote Control
Application :
Extraction, Dispersing, Emulsifying
Matetail of probe :
Titanium alloy
Max capacity :
More than 500ml/Min
Intensity of sound :
More than 10W/cm²
Description

20kHz Ultrasonic Liquid Homogenizer machine device mixing device 500w


Description:

Ultrasonic homogenizer uses the cavitation and other physical effects of ultrasonic waves in the liquid to achieve the homogenization effect. The physical effect means that ultrasonic waves can form effective agitation and flow in the liquid to destroy the structure of the medium and pulverize the particles in the liquid, mainly due to the collision between liquids, microphase flow and shock waves.

Specifications:

Model HSS20-500 HSS20-1000-L HSS20-1000 HSS20-1500 HSS20-2000 HSS20-3000
Frequency 20Khz 20Khz 20Khz 20Khz 20Khz 20Khz
Power 500 W 1000 W 1000 W 1500W 2000W 3000 W
Voltage 220V 220V 220V 220V 220V 220V
Temperature 150 ℃ 150 ℃ 150 ℃ 300℃ 300℃ 300 ℃
Pressure Normal Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound ＞10 W/cm² ＞10 W/cm² ＞10 W/cm² ＞30 W/cm² ＞40 W/cm² ＞60 W/cm²
Max capacity ＞ 500ml/Min ＞ 2 L/Min ＞ 5L/Min ＞ 15L/Min ＞ 20L/Min ＞ 100 L/Min
Material of probe Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy


Applications:

1. Food processing industy
2. Reaction Acceleration – cavitation accelerates chemical and physical reactions.
3. Fine Particle
4. Dispersion – e.g. nanoparticle processing
5. Disruption and Cell Lysing – will break open biological tissues and
6. Cells to extract enzymes and DNA, prepare vaccines.

Advantages:

1. Core parts with Titanium materials
2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability, long working hours, radiation area is increased 2.5 times than traditional tools
7. Provide consulting services and custom reactor designs
8. Custom sizes available for laboratory and high volume industrial applications.

Pictures:

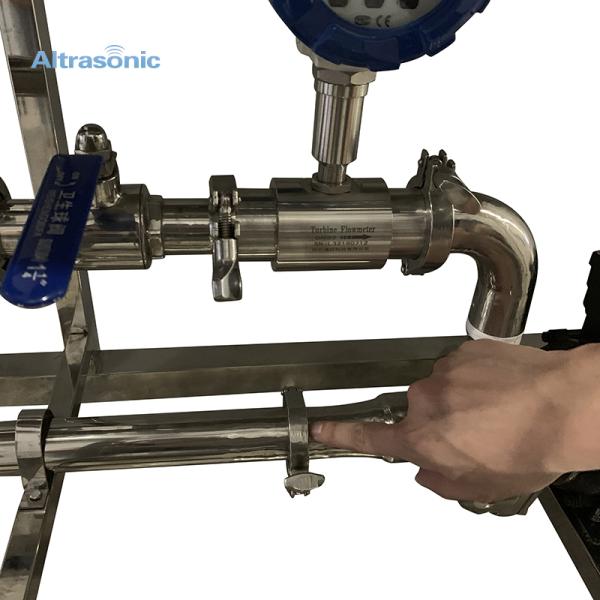

Digital Ultrasonic Liquid Homogenizer Machine 20kHz 500w
