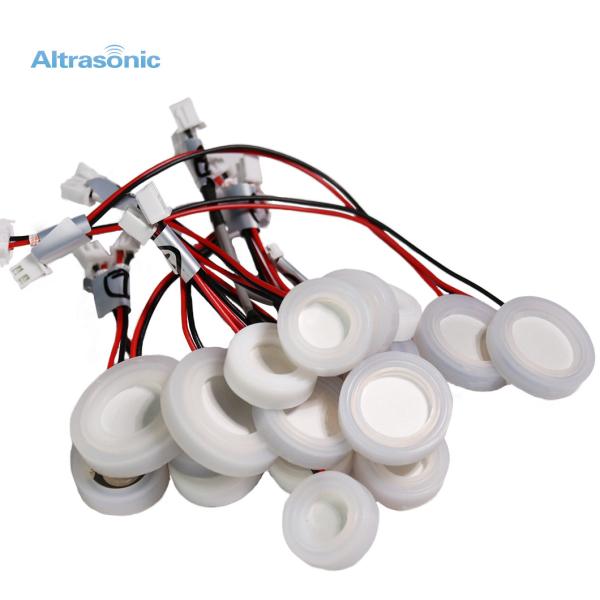

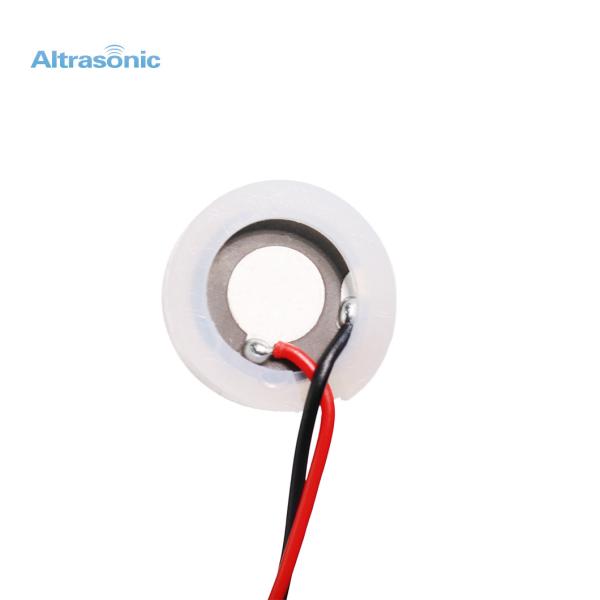

Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM
Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM
Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM
Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM
Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM
Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM
Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM
Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM
Specifications
Brand Name :
Altrasonic
Model Number :
HS-PC
Certification :
CE
Place of Origin :
China
MOQ :
20 units
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
350000 units per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Inside: foam box packaging; Outside: carton, wooden case
Frenquency :
20-150Khz
Shipping :
TNT DHL UPS FEDEX
Color :
Yellow
Warranty :
1 year
Description

Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM

Description:

Piezoelectric ceramics have good mechanical properties and stable piezoelectric properties. As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment,Atomization. etc.

Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.

Diameter Sizes(MM) Frequency(Khz) Shape Material
10-80 20-150 Ring,Tube, Rectangle,Squre, Plate PZT4/5/8

Pictures:

Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM

Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM

Sepcification:

Material Sizes(MM) OD*ID*Thickness Capacitance (pF) Frequency
(kHz)		 Dielectric dissipation factor tgδ(%) Coupling factor Kp (%) Qm
P31 Ceramic Rings φ15*6X2 1080 92 0.4 60 80
P43 Ceramic Rings φ4*φ2*2.5 45 347 0.3 60 1000
φ10*φ5*2 350 145 0.3 60 1000
φ20*φ10*5 1000 50.9 0.3 60 1000
φ25*φ10*5 1000 62.5 0.3 60 1000
φ25*φ9.5*5 1000 60 0.37 60 1000
φ25*φ10*3 1600 61 0.3 60 1000
φ25*φ9.5*3 1650 61.8 0.3 60 1000
φ25*φ10*3 1600 60 0.3 60 1000
φ30*φ12*5 1400 51 0.31 60 1000
φ30*φ12*4.5 1350 53.5 0.32 60 1000
φ30*φ8*5 1550 56.5 0.35 60 1000
φ32*φ9.5*6
φ35*φ15*5 1905 43.6 0.3 60 1000
φ35*φ15*5.5 1760 42 0.36 60 1000
φ36*φ10*4.5 2537 47.5 0.34 60 1000
φ38*φ15*5 2370 40.7 0.3 60 1000
φ38*φ15*6 2000 41 0.35 60 1000
φ38*φ13*6.35 1900 43 0.32 60 1000
φ38*φ15*6.35 1870 40.8 0.3 60 1000
φ45*φ15*5 3500 37.5 0.42 60 1000
φ45*φ15*6.35
φ50*φ17*5 4400 32 0.32 60 1000
φ50*φ17*6.5 3300 32.8 0.3 60 1000
φ50*φ20*3
φ50*φ20*6 3400 32 0.3 60 1800
φ50*φ20*6.5 3200 32 0.3 60 1800
φ50*φ20*7 2900 31 0.3 60 1000
φ60*φ30*10 2500 23.8 0.3 60 1000
φ65*φ30*10 3000 22.7 0.3 60 1000

Product Advantages:

1. The high Q value
2. Small impedance
3. High amplitude
4. Good consistency
5. Slow Performance decay

Package:


Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM

Related products:

Piezoelectric DIsc; Piezoelectric Tube; Piezoelectric Ring; Piezoelectric Square; Piezoelectric Rectangle

Piezoelectric Nebulizer Ceramic Disc Ultrasonic Atomization Sheet Chip φ20MM φ25MM φ16MM
