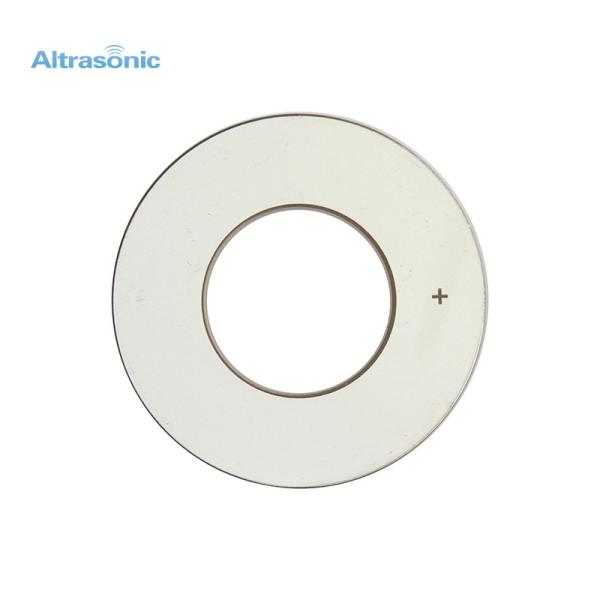

Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate
Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate
Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate
Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate
Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate
Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate
Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate
Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate
Specifications
Brand Name :
Altrasonic
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
350000 units per month
Delivery Time :
7 weekdays after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Frenquency :
20Khz
Shipping :
TNT DHL UPS FEDEX
Color :
Yellow
Warranty :
1 year
Description

Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate

Description:

Piezoelectric ceramics is a general term for ferroelectric ceramics with piezoelectric effect made by polarizing the polycrystals of mixed oxides (zirconia, lead oxide, titanium oxide, etc.), high temperature sintering and solid reaction.

Piezoelectric ceramics have good mechanical properties and stable piezoelectric properties. As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.

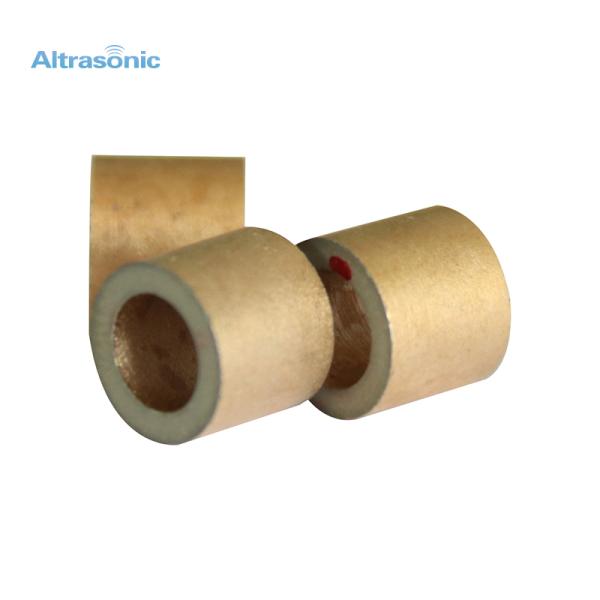

Piezoelectric ceramics have conventional sizes, and we can also customize different sizes and shapes according to customer requirements, such as circular, square, rectangular, tubular, hemispherical and so on.

Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.

Sepcification:

Sizes(MM) OD*ID*Thickness Capacitance (pF) Frequency
(kHz)		 Dielectric dissipation factor tgδ(%) Coupling factor Kp (%) Qm

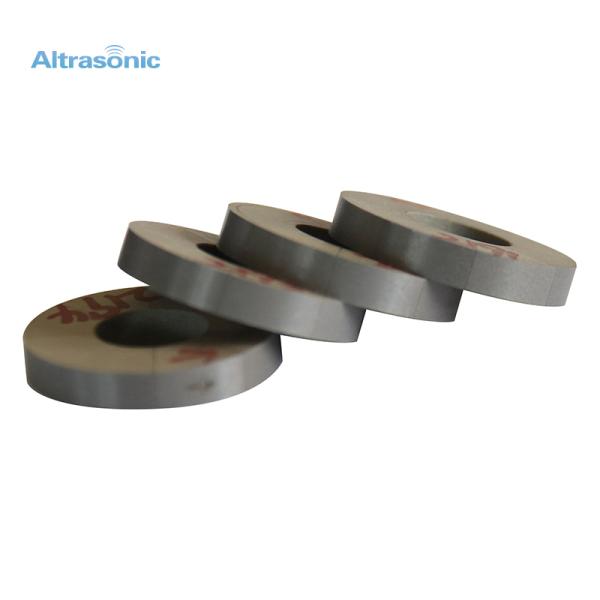

P83 Ring φ25*13*4 800 60.6 0.3 60 800
φ25*13*5 650 60 0.1 60 800
φ30*13*5 1100 53 0.12 60 800
φ38*15*6 1600 44.5 0.12 60 800
φ38*15*6.5 1450 44.5 0.12 60 800
φ45*15*5.5 2100 42 0.12 60 800
φ45*17*6.5 2000 37 0.12 60 800
φ50*17*5 3500 35.6 0.12 60 800
φ50*17*6.5 2750 35.2 0.12 60 800
φ50*20*6 2700 33.9 0.12 60 800
φ50*20*6.5 2500 33.7 0.12 60 800
φ55*26*5 3600 28 0.12 60 800
φ55*26*7.5 2400 28 0.1 60 800
φ60*30*7 2900 25 0.12 60 800
φ60*30*10 2090 25.8 0.12 60 800

Sizes(MM) OD*ID*Thickness Capacitance (pF) Frequency
(kHz)		 Dielectric dissipation factor tgδ(%) Coupling factor Kp (%) Qm
P43 Plate φ20*2 1900 109 0.41 60 1000
φ28*2 3700 78 0.41 60 1000
φ30*2 4000 71.8 0.35 60 1000
φ42.7*10 1700 50 0.35 60 1000
φ50*2.6 8300 44.5 0.35 60 1000
φ50.8*2.83
φ50.8*2.6

Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate

Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate

Application:

As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.

Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate

Related Products:

Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate

Package:

Non standard Sizes φ50.8*2.83 Ultrasonic Piezo PZT43 Electric Ceramic Plate

FAQ:

Q1: Do you have it in stock?
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through communication.

Q2: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.

Q3: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.

Q4: . Do you have operating manual? A: Of course, we will put it with the goods together. Also we will upload video in YouTube and inform you the related link.

Q5: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our main markets is USA and European etc

Q6: Could we as your agent?

A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
