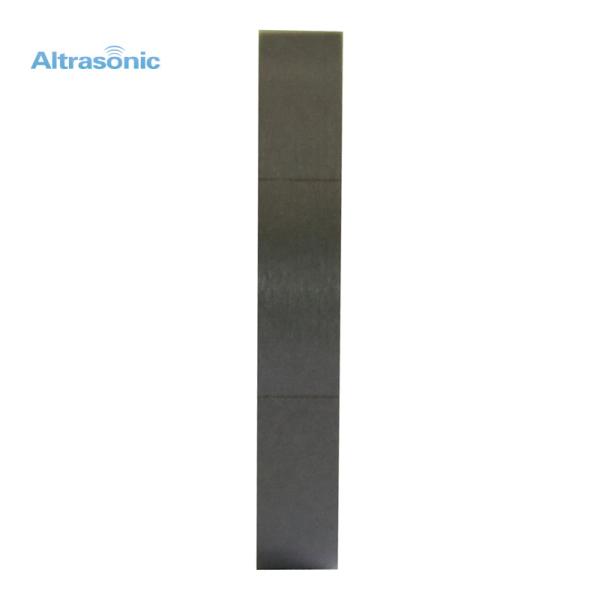

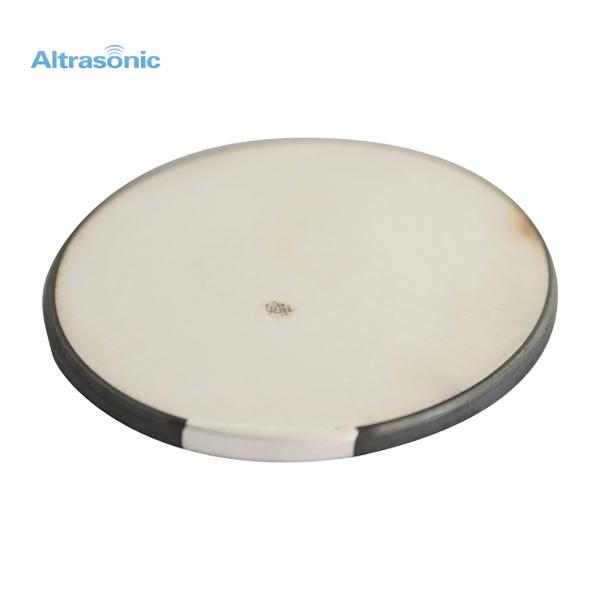

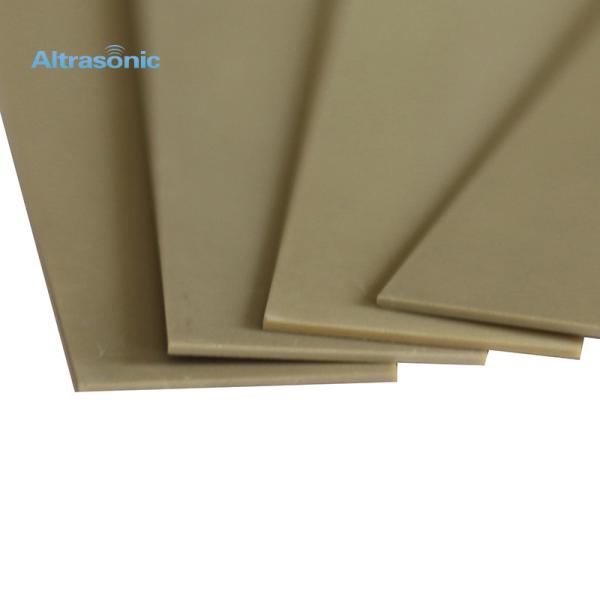

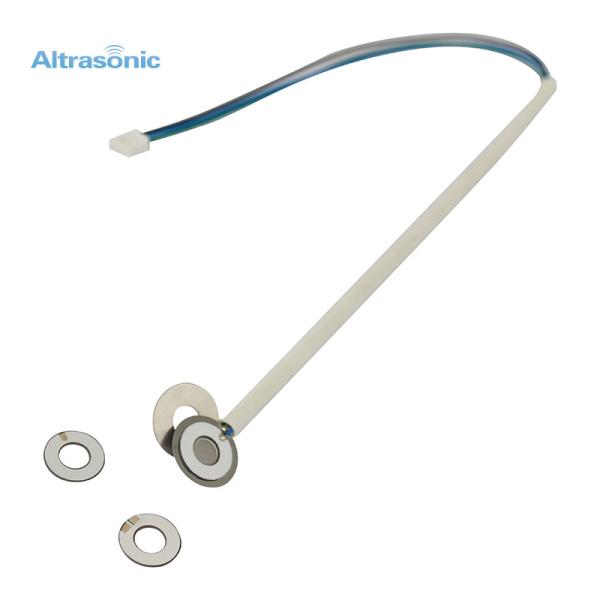

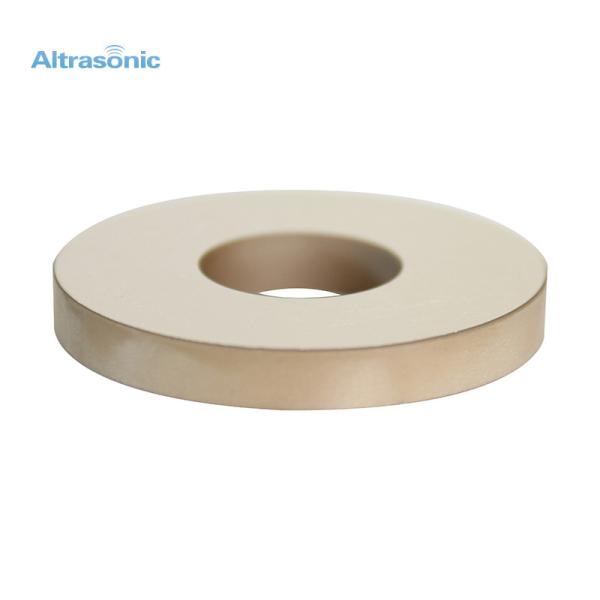

Ring Shape/Rectangular/Tube Piezoelectric Ceramic Used For Ultrasonic Welding/Cutting/Testing
Ring Shape/Rectangular/Tube Piezoelectric Ceramic Used For Ultrasonic Welding/Cutting/Testing
Ring Shape/Rectangular/Tube Piezoelectric Ceramic Used For Ultrasonic Welding/Cutting/Testing
Ring Shape/Rectangular/Tube Piezoelectric Ceramic Used For Ultrasonic Welding/Cutting/Testing
Ring Shape/Rectangular/Tube Piezoelectric Ceramic Used For Ultrasonic Welding/Cutting/Testing
Ring Shape/Rectangular/Tube Piezoelectric Ceramic Used For Ultrasonic Welding/Cutting/Testing
Ring Shape/Rectangular/Tube Piezoelectric Ceramic Used For Ultrasonic Welding/Cutting/Testing
Ring Shape/Rectangular/Tube Piezoelectric Ceramic Used For Ultrasonic Welding/Cutting/Testing
Ring Shape/Rectangular/Tube Piezoelectric Ceramic Used For Ultrasonic Welding/Cutting/Testing
Ring Shape/Rectangular/Tube Piezoelectric Ceramic Used For Ultrasonic Welding/Cutting/Testing
Specifications
Brand Name :
Altrasonic
Model Number :
HS-PC
Certification :
CE
Place of Origin :
China
MOQ :
20 units
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
350000 units per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Inside: foam box packaging; Outside: carton, wooden case
Frenquency :
20Khz
Shipping :
TNT DHL UPS FEDEX
Color :
Yellow
Warranty :
1 year
Description

Ring Shape/Rectangular/Tube Piezoelectric Ceramic Used For Ultrasonic Welding/Cutting/Testing

Description:

Piezoelectric ceramics is a general term for ferroelectric ceramics with piezoelectric effect made by polarizing the polycrystals of mixed oxides (zirconia, lead oxide, titanium oxide, etc.), high temperature sintering and solid reaction.

Piezoelectric ceramics have good mechanical properties and stable piezoelectric properties. As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.

Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.

As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.

Sepcification:

Sizes(MM) Frequency(Khz) Capacitance(±12.5%)pF Tanδ(%) Kr QM
50*17*5 34.8 3160 ≤0.3 ≥0.55 800
50*20*6 33.5 2490 ≤0.3 ≥0.46 800
50*17*6.5 34.8 3280 ≤0.3 ≥0.55 800
50*23*6 32.1 2340 ≤0.3 ≥0.46 800
50*27*6 29 2100 ≤0.3 ≥0.47 800

Product Advantages:

Low calorific value;
High vibration efficiency;
High Mechanical Q;

Good Stable;

Low Heat;

High Sensitivity

Package:


Ring Shape/Rectangular/Tube Piezoelectric Ceramic Used For Ultrasonic Welding/Cutting/Testing
