Specifications
Brand Name :
Altrasonic
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
350000 units per month
Delivery Time :
7 weekdays after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Frenquency :
20Khz
Shipping :
TNT DHL UPS FEDEX
Color :
Yellow
Warranty :
1 year
Description

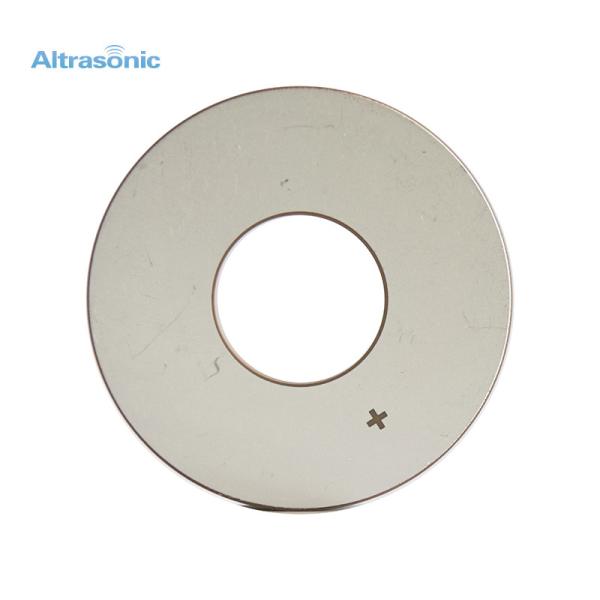

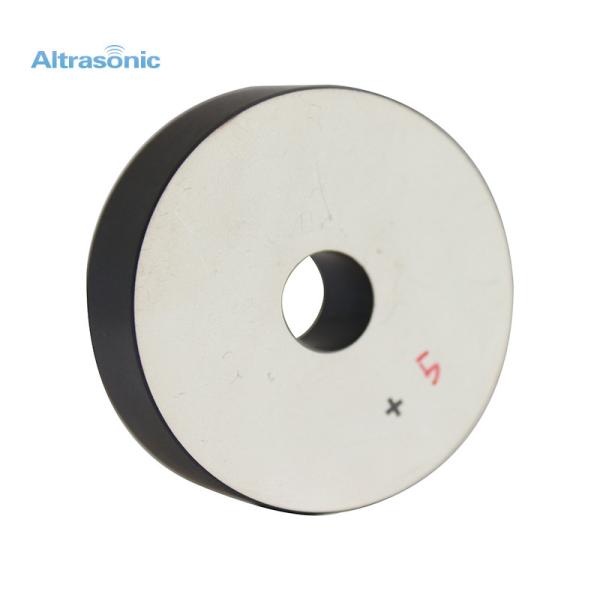

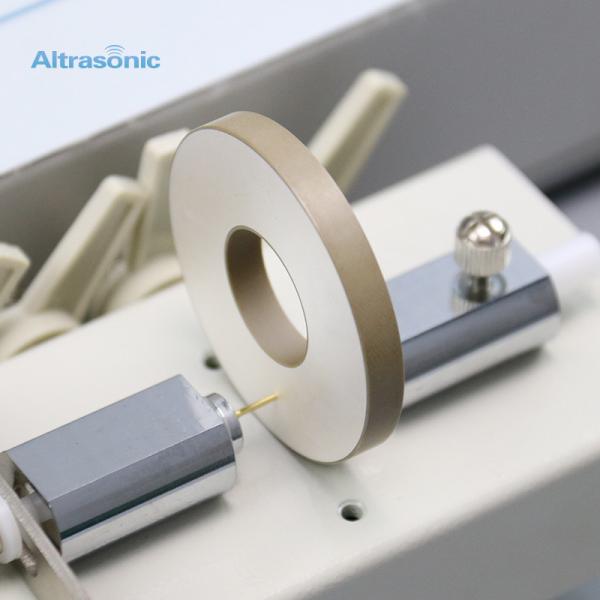

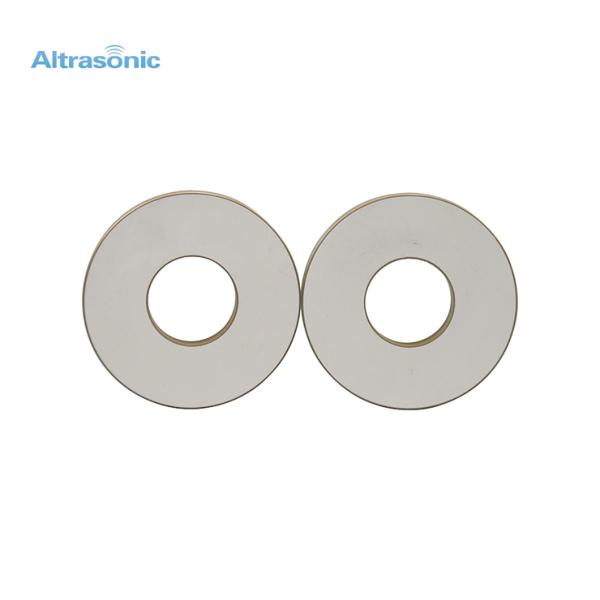

Resonant Frequency 20-200kHz Diameter 50 MM Piezo Ceramic Ring For 20KHhz Ultrasonic Transducer

Description:

Piezoelectric ceramics is a general term for ferroelectric ceramics with piezoelectric effect made by polarizing the polycrystals of mixed oxides (zirconia, lead oxide, titanium oxide, etc.), high temperature sintering and solid reaction. Piezoelectric ceramics have good mechanical properties and stable piezoelectric properties. As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.

Sepcification:

Sizes(MM) Frequency(Khz) Capacitance(±12.5%)pF Tanδ(%) Kr QM
50*17*5 34.8 3160 ≤0.3 ≥0.55 800
50*20*6 33.5 2490 ≤0.3 ≥0.46 800
50*17*6.5 34.8 3280 ≤0.3 ≥0.55 800
50*23*6 32.1 2340 ≤0.3 ≥0.46 800
50*27*6 29 2100 ≤0.3 ≥0.47 800

Advantage:

1. The packaging is firm and not easy to break;
2. Free regular size samples;
3. OEM available

Application:

As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.
