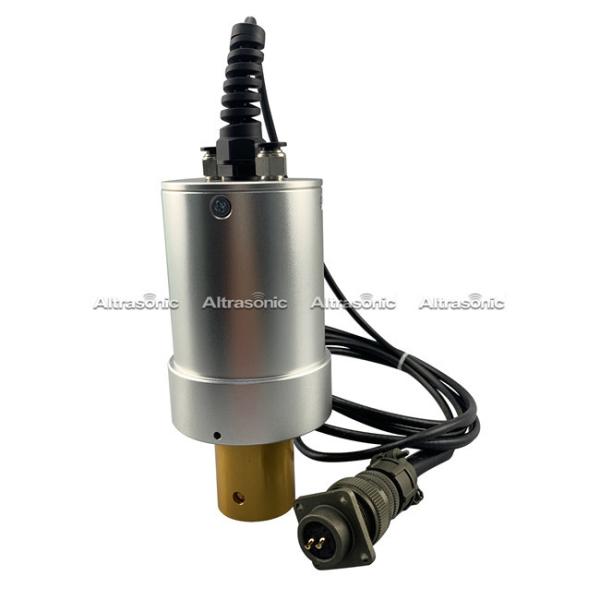

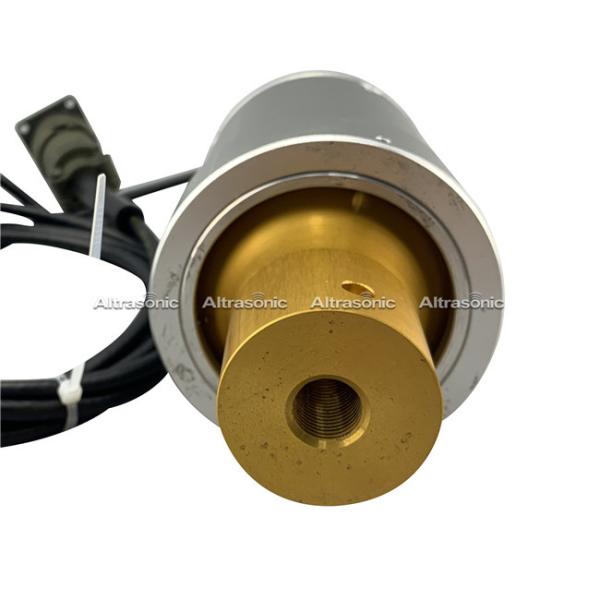

Dukane 41S30 Replacement Ultrasonic Transducer 20kHz 1000-3000 Watt
Dukane 41S30 Replacement Ultrasonic Transducer 20kHz 1000-3000 Watt
Dukane 41S30 Replacement Ultrasonic Transducer 20kHz 1000-3000 Watt
Dukane 41S30 Replacement Ultrasonic Transducer 20kHz 1000-3000 Watt
Dukane 41S30 Replacement Ultrasonic Transducer 20kHz 1000-3000 Watt
Dukane 41S30 Replacement Ultrasonic Transducer 20kHz 1000-3000 Watt
Specifications
Brand Name :
Altrasonic
Model Number :
HS-D41S30
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union,paypal
Delivery Time :
5 workdays
Frequency :
20kHz
Output Power :
1000-3000watt
Joint Bolt :
1/2-20 UNF
Ceramic disc Diameter :
50mm
Qty of ceramic discs :
4pcs
Capacitance :
11nf
Amplitude :
20 um
Application :
Plastic welding machine
Warranty :
1 Year
Aftersales service :
on-line service
Description

20kHz 1000-3000watt Ultrasonic Transducer Dukane 41S30 Replacement Ultrasound Converter

Ultrasonic Transducer Dukane 41S30 Replacement Ultrasound converter

Specifications:

Model HSD41S30
Frequency 20Khz
Output power 1000-3000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11nf
Amplitude 20 um
Application Plastic welding machine

Description:

It is applied to Dukane type ultrasonic welding machine.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries :
Automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing, packing, office supplies, toys, etc.
Our Service:

Conforming to the spirit of "Service First", ALTRASONIC provides lifetime maintenance to its products for as long as they are used by customers.

Altrasonic’s service team is 24/7 available for support. Our well trained and experienced service engineers advise and support on-line or if necessary on location. Whether a custom-made production line or a standard machine: we always ensure that production can be resumed as soon as possible.
