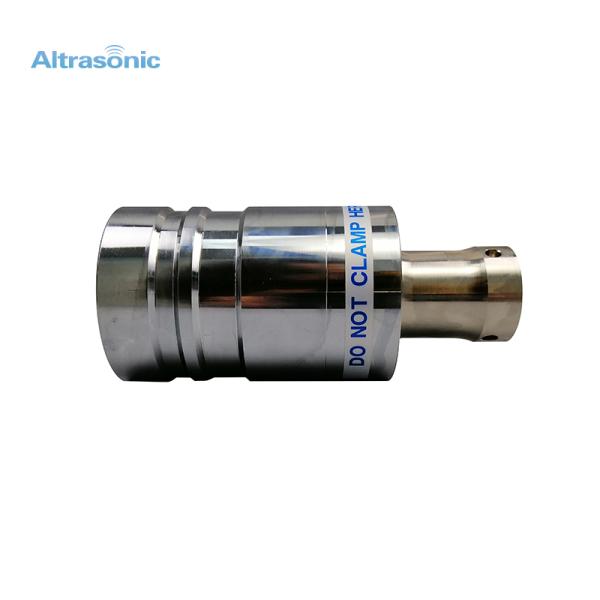

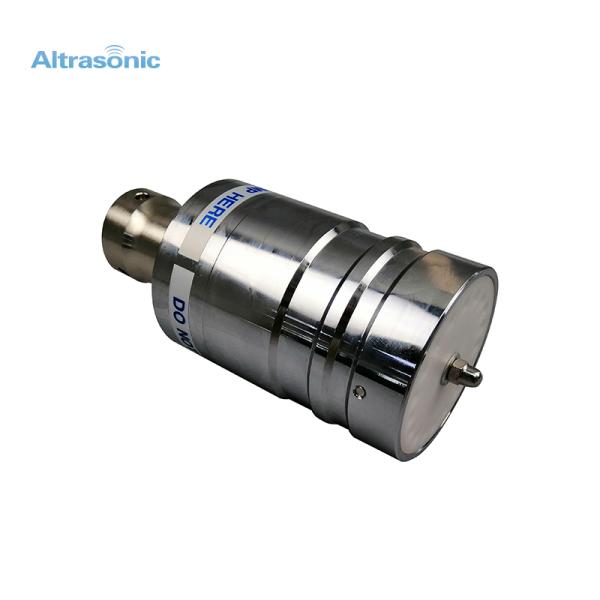

Plastic 20kHz Ultrasonic Transducer For Replacement Branson 803
Plastic 20kHz Ultrasonic Transducer For Replacement Branson 803
Plastic 20kHz Ultrasonic Transducer For Replacement Branson 803
Plastic 20kHz Ultrasonic Transducer For Replacement Branson 803
Plastic 20kHz Ultrasonic Transducer For Replacement Branson 803
Plastic 20kHz Ultrasonic Transducer For Replacement Branson 803
Specifications
Brand Name :
Altrasonic
Model Number :
HSB803
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10,00 units per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Packed in carton
Product Name :
Ultrasonic Converter
Frequency :
20 Khz
Ceramic Diameter :
50 mm
Joint Bolt :
1/2-20 UNF
Power :
1500W
Application :
Welding Machine
Amplitude :
20 Um
Ceramic Disc :
4 Pcs Or 6pcs
Material :
Titanium, Aluminum Materials Optional
Protective Housing :
Aluminum And Stainless Steel Optional
Description

20kHz Replacement Branson803 transducer Ultrasonic Plastic Converter

Specifications:

Model HSB803
Frequency 20 khz
Output power 1500 watt
Joint bolt 1/2-20unf
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs or 6pcs
Capacitance 11.5 - 12.5 nf
Amplitude 20 um
Application welding machine

Description:

The Ultrasonic Converter replacement for Branson Plastic Welding Machine Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.

Product features

All-new made in China

Meets or exceeds all Branson specifications

Directly replaces Branson803

Certified materials

Made in ISO-9002 registered facility


Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be

replaced (one time).

Competitive Advantage:

1. Titanium materials and Aluminum materials optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Plastic 20kHz Ultrasonic Transducer For Replacement Branson 803Plastic 20kHz Ultrasonic Transducer For Replacement Branson 803
