Ultrasound Machine Repair Toshiba Aplio 300/400/500 Mainboard PM30-38696

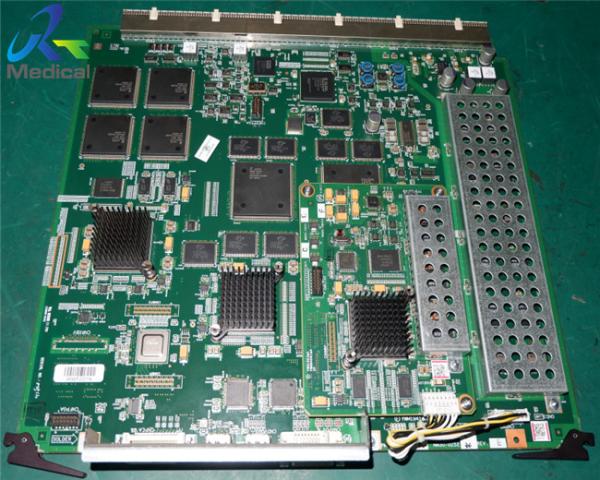

Repair Toshiba Aplio 300/400/500 Mainboard (P/N: PM30-38696)

1. Repair time: 2-4 days
2. Warranty: 60 days
3. Part number: PM30-38696
4.Compatible with Toshiba Aplio 300/400/500

Other ultrasound parts related to Toshiba that we can offer:

Knowledge point

Color-flow imaging

Color-flow imaging is an enhanced form of Doppler ultrasound technology. In a procedure similar to duplex ultrasound, it uses color to highlight the direction of blood flow. Vessels in which blood is flowing are colored red for flow in one direction and blue for flow in the other, with a color scale that reflects the speed of the flow.It can clearly understand the anatomical shape and activity of large blood vessels, and can visually display the direction, speed, range of blood flow, and whether there are blood flow disorders and abnormal pathways. The speed of blood flow determines the reflection frequency, which is represented by amplitude beam in spectral Doppler. The velocity of blood flow is fast, and the amplitude on the spectrum curve is high; the velocity of blood flow is slow, and the amplitude on the spectrum curve is low, so amplitude can accurately calculate the velocity of blood flow. Color Doppler images are displayed with different brilliance.

Back end refers to the PC background processing unit

1. Mainboard

2. ATX power supply

3. Graphics card

4. Memory

5. Hard disk

6. Front and back end connection board

Obstetric Ultrasound is the use of ultrasound scans in pregnancy

Obstetric ultrasound can be used to:

1. Date the pregnancy and estimate the expected date of confinement (EDC)

- this is valuable when the last menstrual period is not sure or inaccurate

- this can be achieved by measuring the size of the fetus

2. Viability

- when a pregnant woman has abdominal pain or vaginal bleeding, fetal viability is a concern

- fetal heart beat can be seen

3. Determine location of fetus

- to see the pregnancy is located in the right place (inside uterus) or abnormal place (outside uterus or called ectopic pregnancy)

4. Check the location of the placenta in relation to the cervix

- a low-lying placenta can cause vaginal bleeding

5. Check for the number of fetuses

- singleton or multiple pregnancy

- multiple pregnancy is associated with more complications than singleton pregnancy

6. Check for fetal abnormalities

- About 3% of pregnancy may be complicated by fetal abnormalities

- the use of ultrasound can detect some fetal abnormalities

7. Assess fetal growth

- to look for fetal growth problem

8. Assess fetal well-being

However, not all fetal abnormalities can be detected by prenatal ultrasound. Besides, false positive detection may result in patients being warned of birth defects when no such defect exists.
