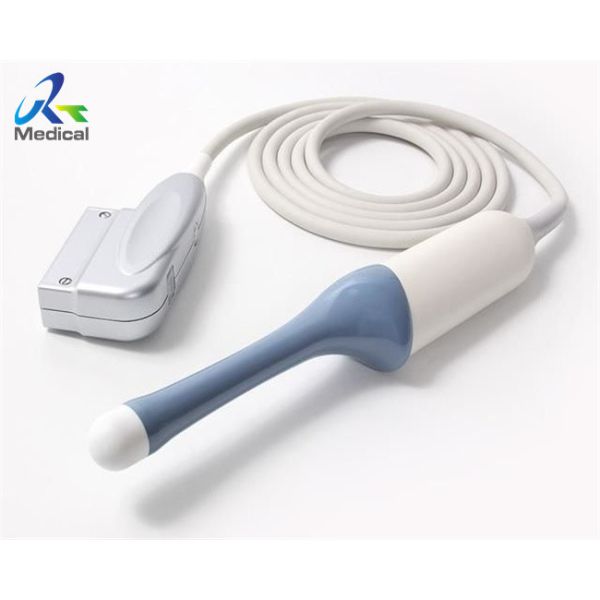

GE RIC5-9A-RS intracavity ultrasound transducer probe
GE RIC5-9A-RS intracavity ultrasound transducer probe
GE RIC5-9A-RS intracavity ultrasound transducer probe
GE RIC5-9A-RS intracavity ultrasound transducer probe
Specifications
Brand Name :
GE
Model Number :
RIC5-9A-RS
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
1-3 work days
Packaging Details :
Neutral Package
Applications :
medical ultrasound transducer
Category :
second hand hospital equipment
Warranty :
60 days
Service :
Outright sale, exchange sale, repair
Items :
high frequency probe ultrasound/hospital scanning machine/ultrasonic imaging system
Condition :
Used Original
Description

GE RIC5-9A-RS Intracavity 4D Ultrasound Transducer

1.Type: Linear
2.Frequency: 4-10 MHz
3.Application: Obstetitrics, Gynecological, Urological
4.Compatible system: Logiq E9 XDClear, Logiq P9, Logiq S7 XDClear, Logiq S8 XDClear.
5.Warranty: 60 days Warranty

GE RIC5-9A-RS intracavity ultrasound transducer probe

Knowledge Point

The RIC5-9A-RS Realtime 4D Endocavity Probe-A is used in the ultrasound machines. It is an assembly that consists of the probe, a probe care card and a document for Certification of Compliance (CoC). There are parts like the EMI shield, heat shrink tube, LED, nose-piece and few other accessories are found in the probe assembly. This particular probe is wideband micro convex endo-cavitary volume real time 4D transducer, which is used in significantly for transrectal, obstetrics and gynecology applications. The ultrasound waves spread through the body, producing an echo where density changes occur. The echoes return to the transducer where they are converted back into electrical signals, thus resulting the quality of images. The probe generates mechanical high-frequency waves, transmits via digital memory to the computer, and forms as an image. It has the individual label with the product details, environment label for packaging and Quality Assurance (QA) seal. All these are arranged and kept in a carrying case with the shipment label. The RIC5-9W-RS Probe type is used in Voluson™ S10 expert, Voluson™ S8 and Voluson™ S10 and other medical diagnostic equipment

Additional Features

  • Edges rounded for safe handling
  • High performance
  • Accurate and sensitive
  • Comfortable for patient
  • Increased life span
  • Enhanced durability
  • Highly reliable
  • RoHS compliant

Parts of GE probes we can offer:

Brand Model Compatible System
GE 3.5C Logiq 3/ Logiq 5/ Logiq 7/ Logiq 9/ Logiq A5/ Logiq P5/ Logiq S6/Vivid7
GE 3C Logiq 3/ Logiq 5
GE 3Cb Logic 200 Pro
GE 3CRF Logiq S6
GE 3CRF-D Logiq S8/ Logiq E9
GE 3SP LOGIQ P
GE 3Sp-D Voluson E6/Voluson E8 / Bt08 & Higher version
GE 3S vivid & Logiq series
GE 3S-RS Loqigbook/XP/ Vivid-I
GE 3S-SC venue 40
GE 3S-RC Logiq C5/ Logiq C2/ Logiq C3
GE 3SC-RS Vivid S5/ Vivid iq/ Vivid i
GE 3.8CA Logiq P3
GE 3V-D Vivid E9
GE 3.8C-RC Loqig C2/Logiq C3/ Logiq C5/ Logiq premiums
GE 4C Logiq & Vivid Series
GE 4C-RC Logiq C2/Logiq C3/Logiq C5/Logiq Premium
GE 4C-RS Vivid i Square/ Logiq e/ Vivid e
GE 4C-SC Venue 40
GE 4C-A Voluson 730
GE 4C-D Voluson E6/ E8 and Vivid E9
GE 4D3C-L Logiq 9/ Logiq A5/ Logiq P5/ Logiq S6
GE 4V-D Vivid E9
GE 4S Logiq and Vivid series
GE 5S pediatric cardiac
GE 5S-RS Vivid q/ Vivid i/Vivid S5/Vivid S6
GE 6.5C-RC Vivid q/ Vivid i
GE 7L Logiq and Vivid series
GE 7L-RC Logiq C2/ C5/ Logiq Premium
GE 739L Logiq 500 Pro/Vivid 3/Logiq 400 MD/Logiq 500 MD
GE 7S Logiq9/ Logiq 7/ Logiq S6/ Logiq 5/ Logiq 3 /Vivid 7/Vivid 3
GE 7.5L-RC Logiq C2/Logiq C3/Logiq C5/Logiq Premium
GE 8C Logiq & Vivid series
GE 8C-RS Voluson i/ Voluson e/ Logiq i/ Logiqbook XP/ Logiqbook/ Vivid i (from rev. 6.1.0)/ Vivid S5
GE 8L-RS Logiq e/ Vivid e/ Vivid i and Logiq Book XP
GE 9L Vivid 7 Pro/Vivid 3/Logiq 9/ Logiq 7/Logiq 5/Logiq 3/ Logiq 400
GE 9L-D Voluson E6/Voluson E8/Vivid E9
GE 9L-RS logiq e/ vivid e/ vivid I/ vivid q/ vivid s5/ vivid s6
GE 10Lb-RS Logiq book
GE 10S-RS Logiq Book/ Logiq e/ Vivid e/ Vivid i/ Logiq i/ Vivid i Square
GE 10L Logiq 3/5/7/9/ Vivid 3/4/A5/P5/7 Expert/7 Pro/ Logiq S6
GE 11L Logiq P5/A5/A5Pro/ Logiq P6/P6 Pro
GE 11L-D premium GE ultrasound machines
GE 12L Logiq & Vivid series
GE 12L-RS Logiq e/ Logiq l/ Vivid e/Vivid I Voluson e/Voluson I/Vivid Q/Vivid S5/ Vivid S6
GE 12L-SC Venue 40
GE 12S-D Vivid E9
GE AB2-7 Voluson S6/ Voluson S8/Voluson 730
GE AC2-5 Voluson 730
GE BE9C Logiq series
