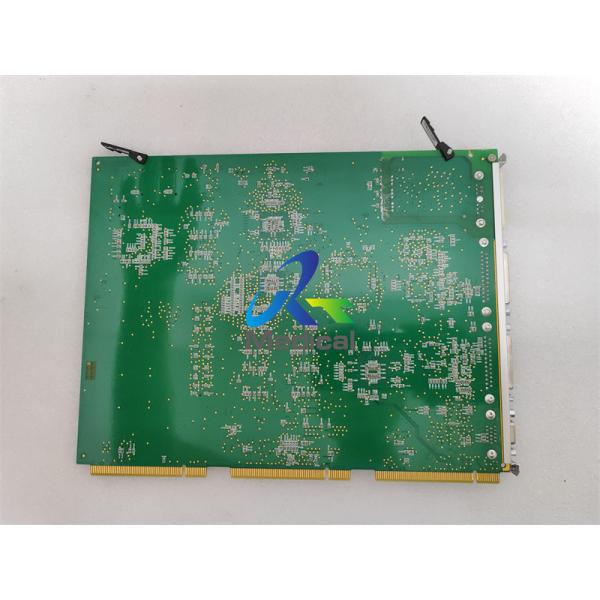

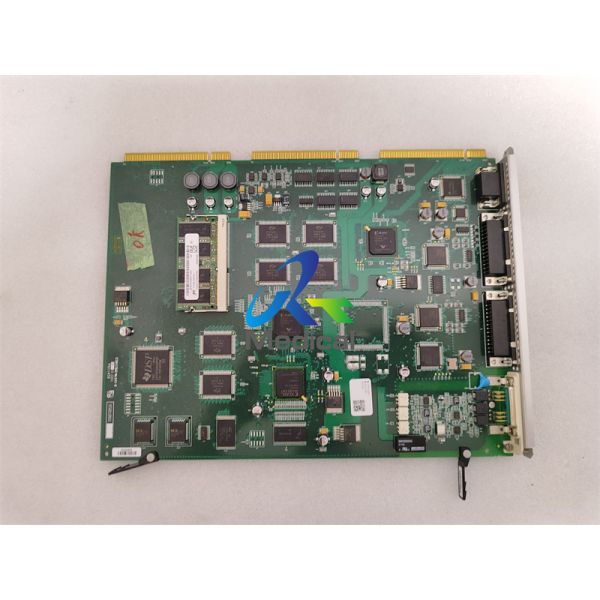

Esaote Biosound MyLab 40 Video Board 9501081
1. Part number: 9501081
2. Compatible with Biosound MyLab 40
3. Condition: Original and used,in good working condition
4. With 60 days warranty and 2-4 days lead time

Function of this Video Board

1) Its main function is responsible for the collection, processing, display and transmission of ultrasound images.
2) Digitally process the original image signals collected by the ultrasound probe, including amplification, enhancement, enhancement and other steps to improve image quality.
3) The processed images can be displayed through the internal monitor or external video interface (such as HDMI, DVI, etc.) for doctors to diagnose.

The information mentioned is unofficial and is for informational purposes only.

Technical features

1) Considering the high performance of Mylab 40, its video board uses advanced image processing chips and algorithms to ensure high definition and real-time performance of images.
2) It may support multiple imaging modes (such as B mode, M mode, D mode, etc.) and advanced imaging technologies (such as TEI, XHF, CnTI, etc.) to meet different diagnostic needs.
3) In terms of data transmission, it supports high-speed data transmission interface to ensure fast transmission and real-time display of image data.

Related imformation

Mylab 40:
As an advanced whole-body color Doppler ultrasound diagnostic system, MyLab™40 has become an important diagnostic tool in the medical field with its high-quality imaging technology, rich clinical applications and convenient operating functions.

1. Technical characteristics
19” high-performance LCD monitor: Increase operator comfort and reduce visual fatigue.
Whole body tissue enhanced imaging technology (TEI): Using ultra-fine line scanning technology, combined with ultra-wide dynamic range processing and natural harmonic (THI) imaging, it comprehensively improves image clarity and fineness, eliminates speckle noise, and brightens the image. This technology improves the spatial resolution of images and greatly improves the ability to detect small lesions and early lesions.
Ultra-high frequency imaging technology (XHF): New wafer cutting technology makes ultra-high frequency probes and their imaging technology possible. Esaote is a leader in the field of high-frequency and ultra-high-frequency ultrasound. Currently, the high-frequency bandwidth operates between 6-20MHz, and the highest two-dimensional imaging center frequency can reach 18MHz. It provides clinical microsurgery and various glands (such as breast). Excellent detail display.

Whole-body wide-view imaging technology (Vpan): Through wide-view scanning technology, grayscale images and color images can be displayed over a longer range of anatomical structures, and ultra-wide field of view ultrasound images can be obtained. It is an absolute excellence in ultrasound examination and diagnosis of muscle and soft tissue. Best tool.
Real-time contrast-enhanced ultrasound function: Equipped with Esaote's world-leading new generation, whole-body application low-sound pressure real-time ultrasound contrast matching imaging technology - CnTI, which can be used for a variety of clinical applications such as the heart, blood vessels, abdomen, small organs, etc., to achieve whole-body low-sound pressure , real-time perfusion ultrasound imaging.
Multi-parameter contrast agent quantitative analysis technology (Qontrast): Provides multi-parameter, true and fast contrast agent quantitative analysis technology, which not only realizes intuitive color coding of contrast agents, but also provides three-dimensional quantitative analysis technology.

2. Clinical application

MyLab™40 can meet the needs of general imaging and cardiovascular examinations for adults and children, mainly including various application fields such as heart, peripheral blood vessels, abdomen, small organs, breast, obstetrics and gynecology, urology and musculoskeletal system. Its built-in integrated cardiac exercise stress test (StressEcho) and comprehensive anatomical M-mode (CompassMMode) and other technologies further enhance its capabilities in cardiac disease diagnosis.

3. Other functions
Real-time 3D/4D technology: 3D images are acquired in real time through a new generation of volume probes, allowing doctors to clearly observe the dynamics of the fetus.
Multi-mode cardiac tissue Doppler imaging technology (TVM): displays the heart movement speed on a two-dimensional image in a color-weighted manner, which helps to identify non-pulsating parts and abnormal early contraction parts caused by myocardial infarction.
Radiofrequency signal vessel wall intima analysis technology (QIMT): used to track and measure various parameters such as intima-media thickness of arterial vessel walls, is an important means for early detection of potential risk factors for cardiovascular disease.
Patient digital file management system: Provides novel embedded digital files and patient data management software to facilitate doctors to scan and store dynamic and static ultrasound images in real time.

Other ultrasound parts that we can offer:

Knowledge point


Fetal Ultrasound

1. A fetal ultrasound, also called a fetal sonogram, is a test that uses sound waves to see images of an unborn baby in the mother's womb.
2. As the mother grows closer to the date of delivery, a prenatal ultrasound will be used to determine the fetal position. This is important to plan the best method of delivery to attempt for the safety of the mother and child.
