15KHz 2600W Ultrasonic Welding Generator for Spot Plastic Welding
15KHz 2600W Ultrasonic Welding Generator for Spot Plastic Welding
15KHz 2600W Ultrasonic Welding Generator for Spot Plastic Welding
15KHz 2600W Ultrasonic Welding Generator for Spot Plastic Welding
15KHz 2600W Ultrasonic Welding Generator for Spot Plastic Welding
15KHz 2600W Ultrasonic Welding Generator for Spot Plastic Welding
Specifications
Brand Name :
KnMTech
Model Number :
KM-QD-GPLC1526
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500sets per month
Delivery Time :
3-7 work days
Packaging Details :
paper/wood carton
Product Name :
2600W Portable Welder Generator
Frequency :
15KHz
Frequency Tuning Method :
Auto Tuning
Output power :
0-2600W
Range of Welding Time :
0.05-10/Sec
Power supply :
220V/110V±10% 50/60Hz
Usage :
Non Woven Fabric Welding,Ultrasonic Welding
Warranty :
1 Year
Description

15KHz 2600W Digital Ultrasonic Welding Generator Power Supply With Auto Tuning Function

Technical parameters:

Model Frequency Power Frequency Range Voltage Air source
KM-QD-GPLC1526/1530/1540(H) 15kHz 2600w/3000w/4000w 14.40-15.20kHz 220V+-10% Built-in PLC Control/
KM-QD-GPLC2025/2030(H) 20kHz 2500w/3000w 19.40-20.20kHz 220V+-10% plastic /Continuous Welding
KM-QD-GPLC3010(H) 30kHz 1000w 29.30-30.30kHz 220V+-10% optional, horizontal and verticle type optional
KM-QD-GPLC3510(H) 35kHz 1000w 34.20-35.40kHz 220V+-10%
KM-QD-GPLC4080(H) 40kHz 800w 39.20-40.40kHz 220V+-10%

Features:

* Frequency automatic tracking & frequency sweeping;
* Adjust amplitude output to control power output;
* Different working modes are available(continuous mode, time mode, grounding mode, energy mode);
* High stability: All-digital integrated circuits, simplify the hardware structure, improving the reliability of the system;
* Amplitude step-less adjustment: Amplitude settings range from 10% to 100%.


The PLC type digital ultrasonic generator with high-power ultrasonic technology program design adopts advanced microcomputer control technology and new circuit geometry. It has the frequency automatic tracking function and amplitude compensation function. The protection system of the generators includes overload protection, voltage protection, and transducer voltage protection. Using the touch screen, you can set the ultrasonic parameters according to your products easily. And ultrasonic welding results can ensure solidity, performance, appearance, and customer satisfaction.

Application:

Automotive

car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding, cotton insulation doors, engine cover, radiator cap spot, etc

Electronics

Switches and sockets, electronic swatter, remote control unit,etc

Home appliances

computer, electronic clock, electric kettle air-Hsiang, , etc

Toy

plastic toys, plastic gifts, etc

Packaging

Corrugated tray, hollow crate welding, zip lock welded, etc

Medical

Testing Equipment,filters,I-V units,insulated trays..etc.

FAQ:

1. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 7 days, while, 15-25 days for large orders and customized production line.
1-2 units we could send by EXPRESS(DHL,UPS,FEDEX,TNT,EMS), heavyweight more than 50kg, we suggest to use sea freight LCL or by air

2. How can you guarantee we receive a good quality generator?

First, we have a serious inspection process team to control the quality, you can come to our factory to check and inspect the machine with your sample raw material.

Detailed Photos:

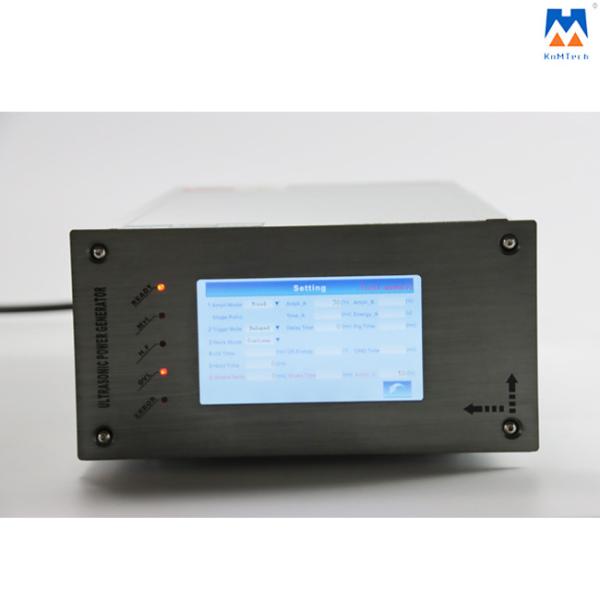

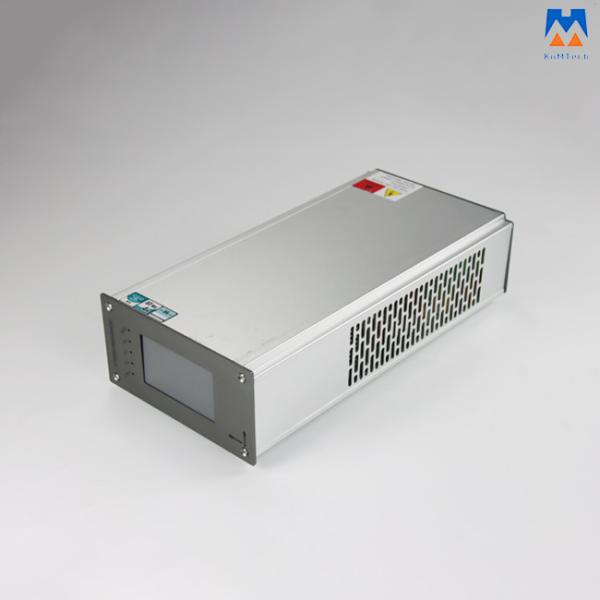

15KHz 2600W Ultrasonic Welding Generator for Spot Plastic Welding

15KHz 2600W Ultrasonic Welding Generator for Spot Plastic Welding

Warehouse:

15KHz 2600W Ultrasonic Welding Generator for Spot Plastic Welding

Packing:

15KHz 2600W Ultrasonic Welding Generator for Spot Plastic Welding
