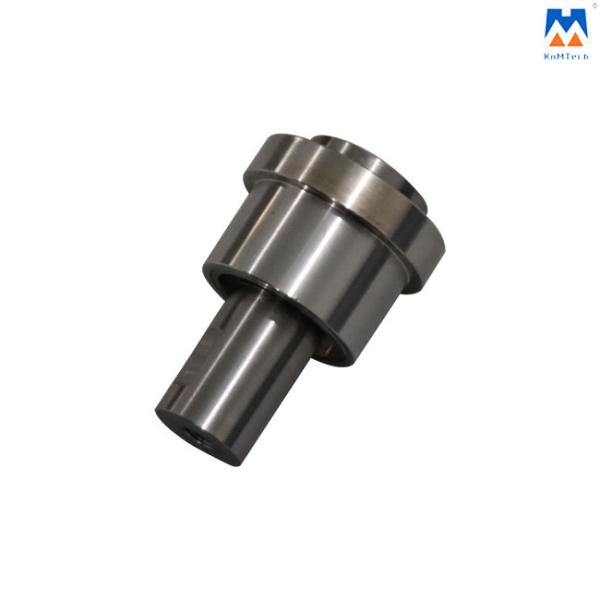

Titanium 2kg 20KHz 1:2 Ultrasonic Welding Boosters For Ultrasound Welder
Titanium 2kg 20KHz 1:2 Ultrasonic Welding Boosters For Ultrasound Welder
Titanium 2kg 20KHz 1:2 Ultrasonic Welding Boosters For Ultrasound Welder
Titanium 2kg 20KHz 1:2 Ultrasonic Welding Boosters For Ultrasound Welder
Titanium 2kg 20KHz 1:2 Ultrasonic Welding Boosters For Ultrasound Welder
Titanium 2kg 20KHz 1:2 Ultrasonic Welding Boosters For Ultrasound Welder
Specifications
Brand Name :
KnMTech
Model Number :
KM-QDB20
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000sets/Month
Delivery Time :
3-7 work days
Packaging Details :
paper/wood carton
Product Name :
20KHz 1:2 Ultrasonic Welding Boosters
Frequency :
20KHz
Machine Type :
Ultrasonic welding booster
Voltage :
220V 50Hz
Weight :
1.5kg
Usage :
Booster for ultrasonic welding machine
Operating Temperature :
-10ºC;~+500ºC;
Description

20KHz 1:2 Ultrasonic Welding Boosters

What is the ultrasonic booster?

Ultrasonic booster is a key part in the ultrasonic welding system, which is a one-half-wave length long resonant section made of aluminum or titanium.

How does the ultrasonic booster work?

To provide an amplitude change, the ultrasonic booster will have different diameters on either side of its center. A smaller diameter at the end attached to the horns means the ultrasonic amplitude increase. the ultrasonic booster will help enlarge the ultrasonic vibration amplitude and amplify the welding power during the vibration.

Technical parameters:

Product Name 20KHz 1:2 Ultrasonic Welding Boosters
Voltage 220V 50Hz
Frequency 20KHz
Material Aluminum /Titanium
Booster gain 1:2
Screw size 3/8
Operating Temperature -10ºC;~+500ºC;
Usage Ultrasonic Welding Machine
Weight 1.5kg

Features:

1. High output power
2. High quality
3.15KHz-40KHz supplied, customized available

Detailed Photos:

Titanium 2kg 20KHz 1:2 Ultrasonic Welding Boosters For Ultrasound Welder
