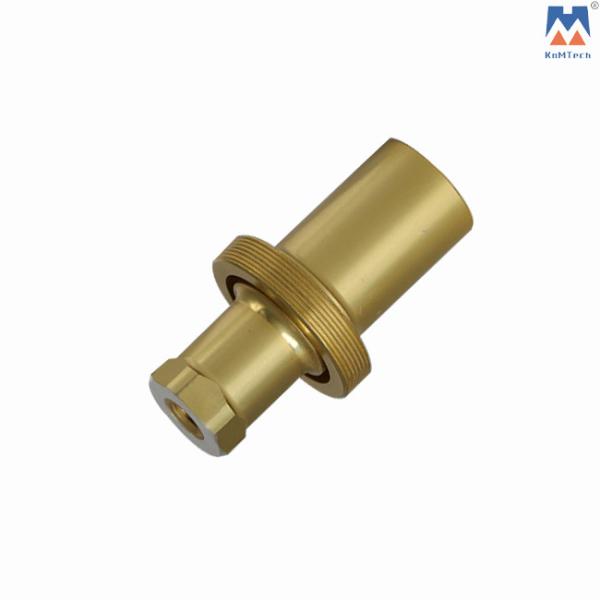

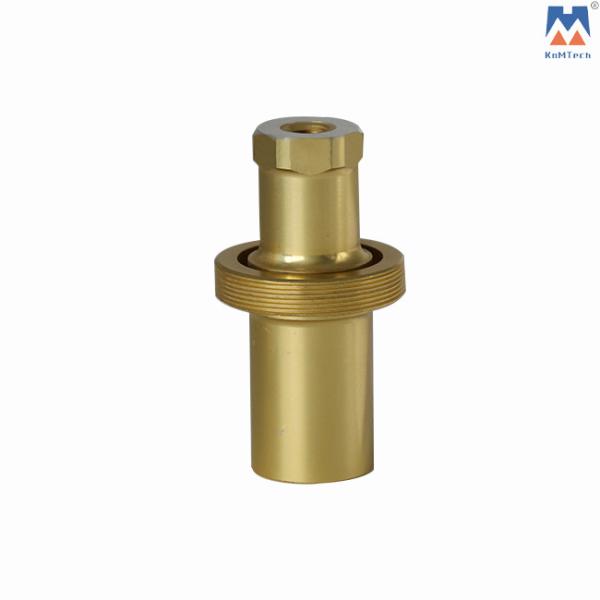

1:1.5 Booster Gain Yellow Aluminum 35kHz Ultarsonic Transducer Ultrasonic Booster
1:1.5 Booster Gain Yellow Aluminum 35kHz Ultarsonic Transducer Ultrasonic Booster
1:1.5 Booster Gain Yellow Aluminum 35kHz Ultarsonic Transducer Ultrasonic Booster
1:1.5 Booster Gain Yellow Aluminum 35kHz Ultarsonic Transducer Ultrasonic Booster
1:1.5 Booster Gain Yellow Aluminum 35kHz Ultarsonic Transducer Ultrasonic Booster
1:1.5 Booster Gain Yellow Aluminum 35kHz Ultarsonic Transducer Ultrasonic Booster
Specifications
Brand Name :
KnMTech
Model Number :
KM-B35
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
1000 sets per month
Delivery Time :
3-7 work days
Packaging Details :
foam/paper/wood carton
Porduct Name :
35kHz Ultrasonic Welding Booster
Weight :
1.5kg
Frequency :
35kHz
Material :
Aluminum
Booster Gain :
1:1.5
keyword :
ultrasonic booster
Voltage :
AC 220V 50/60HZ
Usage :
Ultrasonic Welding Machine
Description

What's the ultrasonic booster?

There are three types of ultrasonic boosters with different mounting systems:
1) standard mount;

2) rigid mount with square O-rings and removable clamp rings (which also is repairable);

3) solid mount that provides improved rigidity.

For continuous applications, solid mount ultrasonic boosters deliver more energy to the product, while in plunge applications, improved alignment is possible.

According to the type of vibration, it can be divided into longitudinal vibration, torsional vibration, bending vibration, and composite vibration (longitudinal bending, longitudinal torsion, bending torsion). In the processing and processing applications of power ultrasound, longitudinal vibration applications are most common.

The booster will have different diameters on either side of its center or nodal point. A smaller diameter at the end attached to the horns means that the boosters are for amplitude increasing. A bigger diameter at the end attached to the horn means the booster is for amplitude decreasing.

Technical parameters:

Product Name: Ultrasonic Welding Booster
Frequency: 35KHz
Material : Aluminum
Booster gain: 1:1.5
Screw size: 2/1
Usage Ultrasonic Welding Machine

Features:

1. High output power
2. High quality
3.15KHz-40KHz supplied, customized available

4. 300W/600W/900W /1500W/2000W/2600W/3200W/4200W supplied

Booster gain:


1.0:1
1.5:1
1.75:1
2.0:1
2.5:1

3:1

Detailed Photos:

1:1.5 Booster Gain Yellow Aluminum 35kHz Ultarsonic Transducer Ultrasonic Booster
1:1.5 Booster Gain Yellow Aluminum 35kHz Ultarsonic Transducer Ultrasonic Booster
