20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine
20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine
20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine
20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine
20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine
20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine
20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine
20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine
20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine
20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine
Specifications
Brand Name :
KnMTech
Model Number :
KM-QDH20270
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000sets/Month
Delivery Time :
15 work days
Packaging Details :
paper/wood carton
Product Name :
20KHz Ultrasonic Welding Horn
Frequency :
20KHz
Size :
270*25
Size of Screw :
M12-M3/8
Material :
Stainless Steel
weight :
4.5kg
Description

20KHz 270*25mm Stainless steel Ultrasonic welding tooling, Ultrasonic Horn, Mould

The frequency of the ultrasonic welding horn is analyzed and calculated by the professional software according to the material, size, and shape of the workpiece by the ultrasonic manufacturer. The frequency of each welding horn must be tested and matched with the ultrasonic generator and transducer before it is done. Usually, the welding horn of the ultrasonic plastic welding machine frequency is divided into 15KHz, 20KHz, 28KHz, 30KHz, 35KHz, 40KHz, and so on. The higher the frequency is, the shorter the welding horn is, all ultrasonic horns are half wavelength.

Technical parameters:

Product Name Stainless steel Ultrasonic welding Mould
Frequency 20KHz
size 270*25mm
Welding Area 270*25mm
Size of screw M12 or 3/8
Weight 4.5kg
Material Stainless steel
Usage for ultrasonic welding, sealing
Color Metal Color

Features:

1. High hardness, not easy to wear;

2. Strong and durable, not easy to crack;

3. With low cost compared with titanium alloy;

4. Cutting chemical fiber fabrics without loose edges;

5. Longer horn service time;

6. High stability；

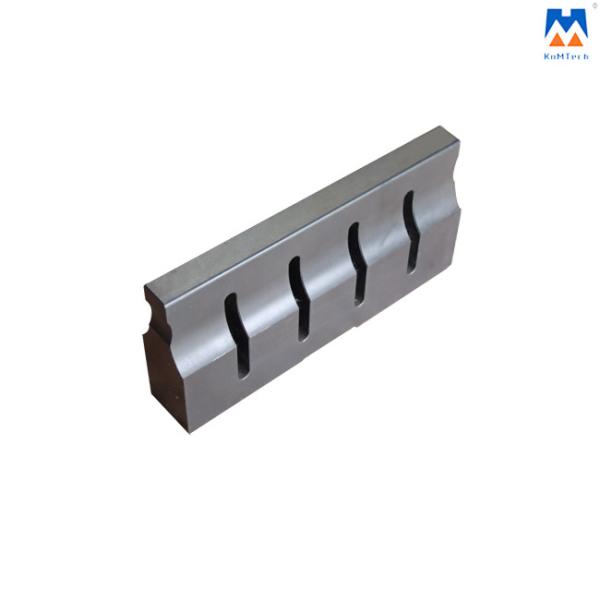

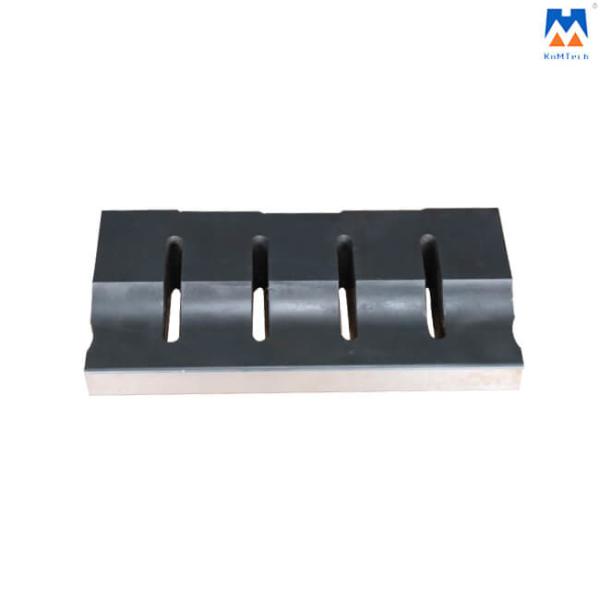

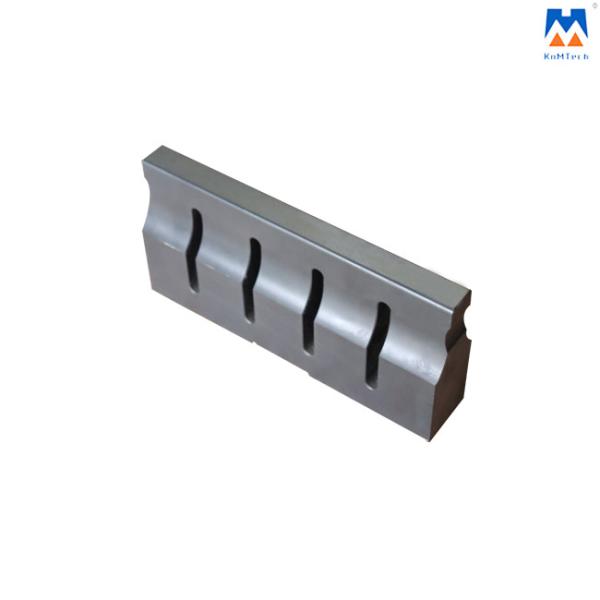

Detailed Photos:

20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine

Packing:

20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine
