Automatic Frequency Tracking 2600W Ultrasonic Welding Generator for Plastic Welding
Automatic Frequency Tracking 2600W Ultrasonic Welding Generator for Plastic Welding
Automatic Frequency Tracking 2600W Ultrasonic Welding Generator for Plastic Welding
Automatic Frequency Tracking 2600W Ultrasonic Welding Generator for Plastic Welding
Automatic Frequency Tracking 2600W Ultrasonic Welding Generator for Plastic Welding
Automatic Frequency Tracking 2600W Ultrasonic Welding Generator for Plastic Welding
Specifications
Brand Name :
KnMTech
Model Number :
KM-QD-G1526
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000sets/Month
Delivery Time :
3-7 work days
Packaging Details :
paper/wood carton
Product Name :
2600W Ultrasonic Welding Generator KM-QD
Frequency :
15KHz
Input Power :
2600W
Capacitance :
12.1nf
Power supply :
AC220V 50Hz
Power fluctuation :
≤ 5%
Usage :
Plastic Welding,ultrasonic welding
Warranty :
1 Year
Description

15Khz 2600W Ultrasonic Welding Generator Ultrasonic Power Supply for Plastic Welding

The ultrasonic generator has an automatic frequency tracking function, it uses a high-performance anti-interference microprocessor, electronic control, fusion control of all parameters through microcomputer management, intelligent frequency control system from the inconvenience of manual frequency modulation. Automatic acoustic overload detection, real-time tracking of the best resonance point, vibration group temperature maintains the lowest point, welding horn/mold temperature rises to follow the frequency changes, the digital machine automatically adjusts the operation which makes the generator more stable.

Technical parameters:

Product Name 2600W Ultrasonic Welding Generator
Frequency 15KHz
Trigger mode delay
Power 2600W
Steady output 200-240VAC
Welding modes time, energy, and grounding
4-core 32-bit processor
Segmented amplitude function
Welding amplitude 10-100% adjustable (1% accuracy)

Features:

1. Mold impedance analysis + protection;

2. 485 communication port;

3. Real-time frequency automatic tracking function;

4. Amplitude compensation function;

5. Transducer voltage protection;

6. This type of generator also has overload protection.

FAQ:

1. What's the warranty of your generators?
One-year Warranty.
2. Can we agent your digital ultrasonic generators in our country or city?
Of course. We are looking for sole agents who are willing to cooperate with us for a long business term.
3. How about payment?
100%T/T in advance before shipment.
4. How about the quality?
Each generator will be checked and tested by our QC team before delivery,we have exported our generators to many other customers from all over the world, the feedback is good, quality ranks first in our company.

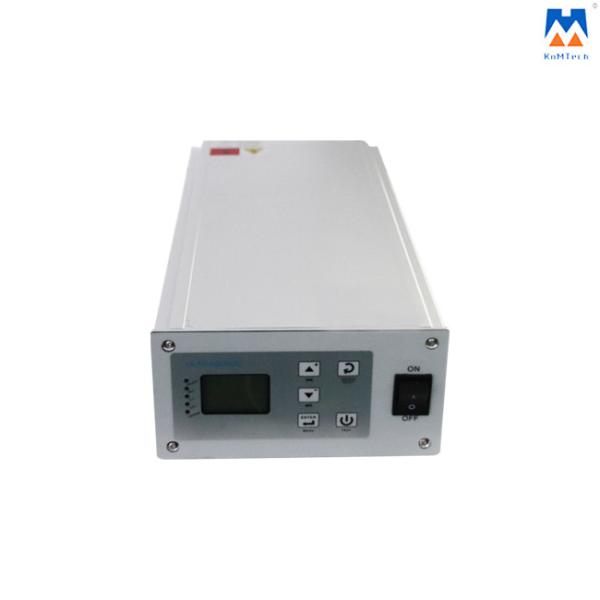

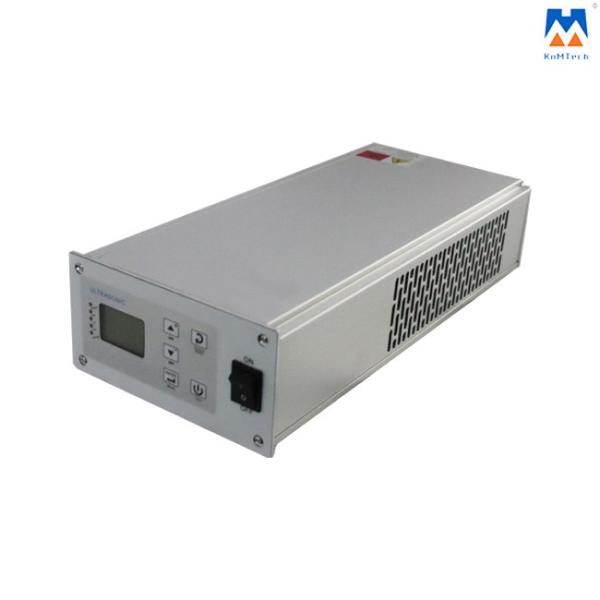

Detailed Photos:

Automatic Frequency Tracking 2600W Ultrasonic Welding Generator for Plastic Welding

Packing:

Automatic Frequency Tracking 2600W Ultrasonic Welding Generator for Plastic Welding
