15KHz Ultrasonic Welding Machine For Plastic PUC PS PPS PBT ABS PP PE PC
15KHz Ultrasonic Welding Machine For Plastic PUC PS PPS PBT ABS PP PE PC
15KHz Ultrasonic Welding Machine For Plastic PUC PS PPS PBT ABS PP PE PC
15KHz Ultrasonic Welding Machine For Plastic PUC PS PPS PBT ABS PP PE PC
15KHz Ultrasonic Welding Machine For Plastic PUC PS PPS PBT ABS PP PE PC
15KHz Ultrasonic Welding Machine For Plastic PUC PS PPS PBT ABS PP PE PC
Specifications
Brand Name :
Dongho
Model Number :
GEL-S S1545
Certification :
ISO1400 & ISO9001 & CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
300 sets per month
Delivery Time :
10 work days
Packaging Details :
wood carton
Product Name :
15KHz High Power Ultrasonic Welding Machine
Frequency :
15KHz
Power :
4500W
Triggering Method :
Time/position
Welding Method :
Time/Energy/absolute position
Amplitude control :
Single stage amplitude
Max Welding Time :
≤6S
Z traveling precision(mm) :
±0.02mm accuracy
Description

15KHz High Power Ultrasonic Welding Machine For Plastic PUC PS PPS PBT ABS PP PE PC

Dongho embedded system-the 6th generation iQS operating system, is equipped with multiple, innovative & high-end functions. Its operating system is facing the future, with diversified and flexible welding modes. The welding power can reach as high as 5KW and meet the diverse needs of products. Good choice for large plastic workpieces welding.

Technical Parameters:

Model GEL-S S1545
Frequency 15KHz
Power 4500W
Triggering Method Time/position
Welding Method Time/Energy/absolute position
Max Working Stroke(mm) 100mm±1mm
Max Welding Time ≤6S
Amplitude control Single-stage amplitude
Quality control Time/Energy/Power/absolute position
Output interface 10" color touch screen
Voltage(V) AC220V±5% 50/60Hz
Z traveling precision(mm) ±0.02mm accuracy
Max. air pressure(mpa) 1mpa
Air source Compressed air must be clean, dry and free of lubricant
Dimension(L*W*H)mm 750*1000*1920
Weight(kg) 300KG

Features:

1. The sixth generation of iQS operating system, intelligent automatic frequency chasing generator;

2. A variety of welding modes, flexible to meet the diverse needs of products;

3. Support for four brands of scan guns for data storage and traceability;

4. Embedded overload protection system ensures real-time safe operation of the welding machine;

5. Parameters such as welding frequency, welding time, welding energy, and absolute position of the storage device;

6. High-performance steel square column structure, anti-torsion design, full series of modular structure, easy to expand;

7. Standard external auxiliary tools such as PLC, grating, coil device, sound insulation cover, etc., and equipped with quality monitoring function;

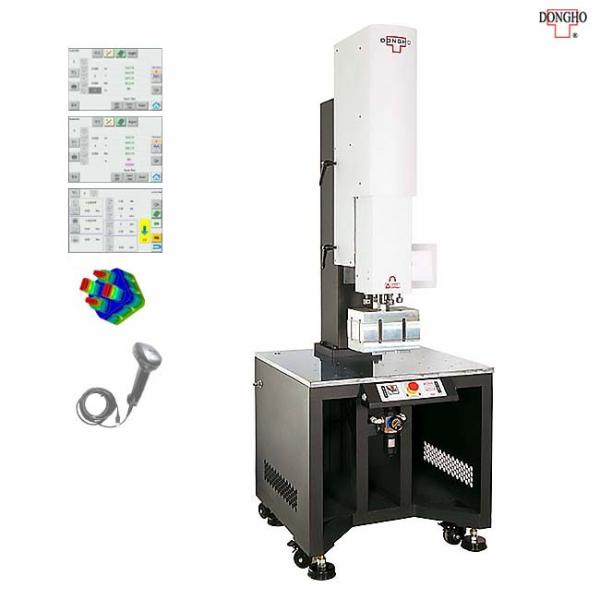

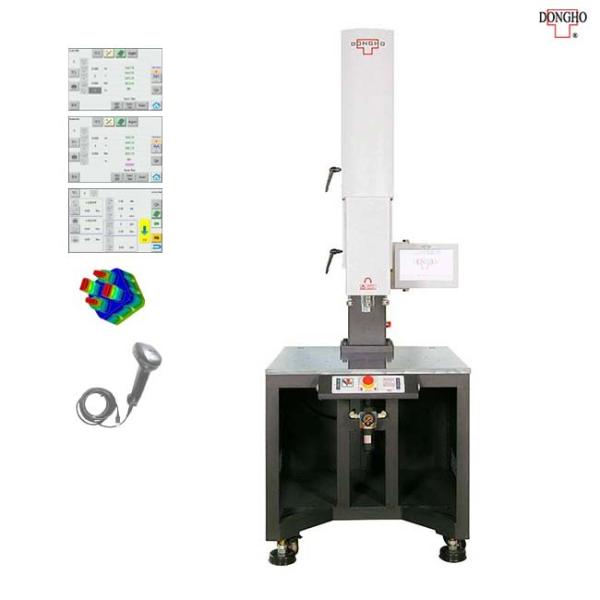

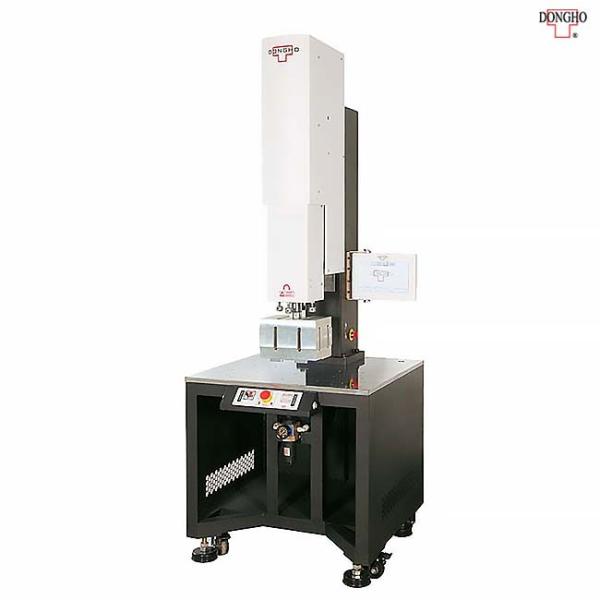

Detailed Photos:

15KHz Ultrasonic Welding Machine For Plastic PUC PS PPS PBT ABS PP PE PC15KHz Ultrasonic Welding Machine For Plastic PUC PS PPS PBT ABS PP PE PC
