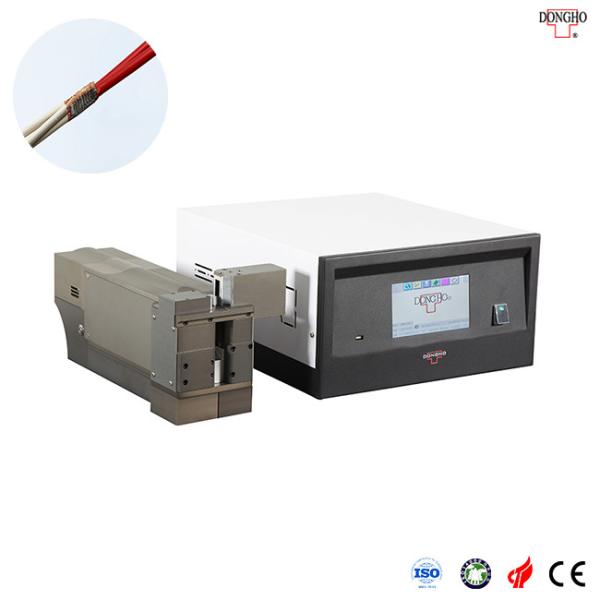

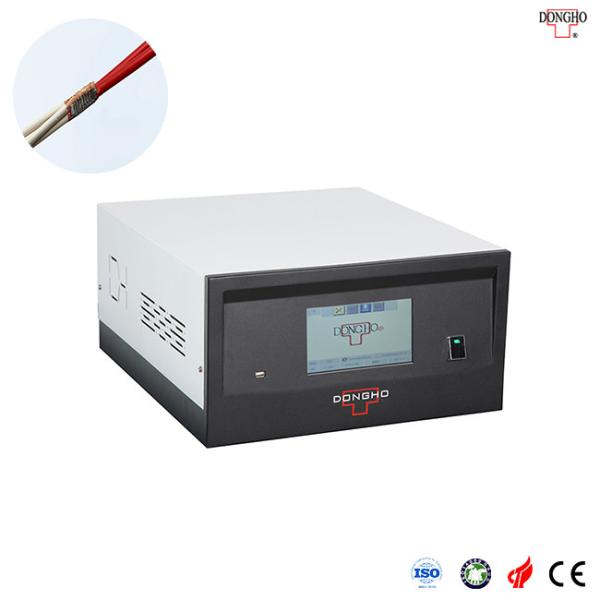

20kHz 4800W Ultrasonic Wire Welder For Metal Bonding Spot Soldering
20kHz 4800W Ultrasonic Wire Welder For Metal Bonding Spot Soldering
20kHz 4800W Ultrasonic Wire Welder For Metal Bonding Spot Soldering
20kHz 4800W Ultrasonic Wire Welder For Metal Bonding Spot Soldering
20kHz 4800W Ultrasonic Wire Welder For Metal Bonding Spot Soldering
20kHz 4800W Ultrasonic Wire Welder For Metal Bonding Spot Soldering
20kHz 4800W Ultrasonic Wire Welder For Metal Bonding Spot Soldering
20kHz 4800W Ultrasonic Wire Welder For Metal Bonding Spot Soldering
Specifications
Brand Name :
Dongho
Model Number :
TH-M2048
Certification :
ISO1400 & ISO9001 & CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
300 sets/Month
Delivery Time :
10 work days
Packaging Details :
wood carton
Product Name :
ultrasonic wire bonding machine
Frequency :
20KHz
Power Range :
<=4800W
Welding Force :
1200 Newton Max.
Control Voltage :
24V
Welding Stroke :
30mm
Cross Section Wire :
0.35mm²-75mm²
application :
metal spot soldering bonding
Description

Ultrasonic Wire Welder For Metal Bonding Spot Soldering 20kHz 4800W

Technical Parameters:

Model TH-M
Product Name Ultrasonic Spot Soldering Machine
Frequency 20KHz
Power 2400W, 3600W, 4800W, 6000W
Welding Force 1200 Newton Max.
Control Voltage 24V
Welding Stroke 30mm
Cross Section Wire 0.35mm²-75mm²
Wire Type Copper(Cu) , Aluminium(Al) , Tin Coated , Enamel Coated

Unique Features:

* The 6th generation iQS operation system, multi-level password protection with hierarchical authorization.

* Supportable to MES, DPS, and PC configuration for real-time data management.

* Profiling of the bonding process

* Built-in scanning port supporting four brands of scanning guns for data traceability.

* Available for different bonding modes

* Applicable to copper and aluminum stranded wires bonding.

* Bonding parameters record and QA diagnosis and control.

* Multiple functions available for integration of an automatic production line.

* Low impedance and high resistance to corrosion.

Advantages of Ultrasonic Metal Soldering Technology:


1, Good electrical conductivity after bonding, very low or almost zero resistivity;
2, The ultrasonic metal soldering machine is close to cold processing, the workpiece is not annealing, no oxidation trace;
3, High fusion strength;
4, Ultrasonic metal soldering machine for welding metal surface requirements are low, oxidation and electroplating can be welded;
5, Ultrasonic metal wire welders do not need any flux, gas, solder, welding time is short;
6, The welding process does not need water cooling and gas protection, welding parts do not deformation.

20kHz 4800W Ultrasonic Wire Welder For Metal Bonding Spot Soldering20kHz 4800W Ultrasonic Wire Welder For Metal Bonding Spot Soldering
