Specifications
Brand Name :
H&W
Model Number :
CUF-600-042G3-DL
Certification :
CE RoHS
Place of Origin :
China
MOQ :
30 Sets
Price :
Negotiable
Payment Terms :
T/T, L/C,
Supply Ability :
50000 sets per month
Delivery Time :
10~15 days
Packaging Details :
Carton
Model Name :
CUF-600-042G3-DL
Work Style :
DALI
Output Power :
20~28W
Output Current :
600mA
Output Voltage :
24~42V
Application :
LED Strip Light, Linear Light
Power Factor :
>0.95
Warranty :
5 Years
Description

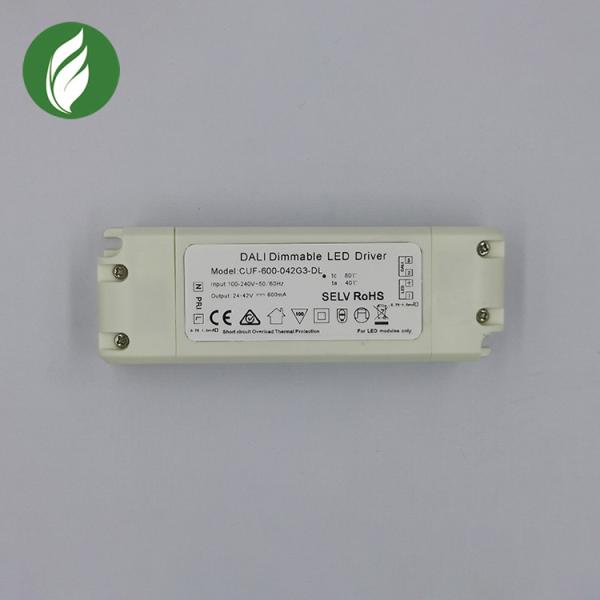

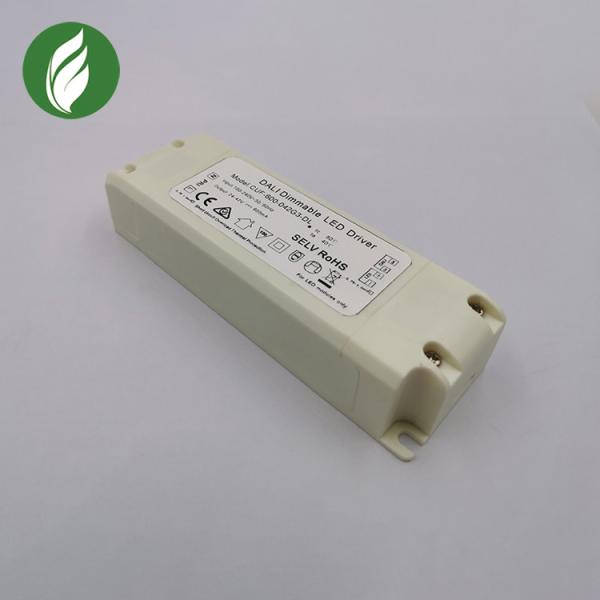

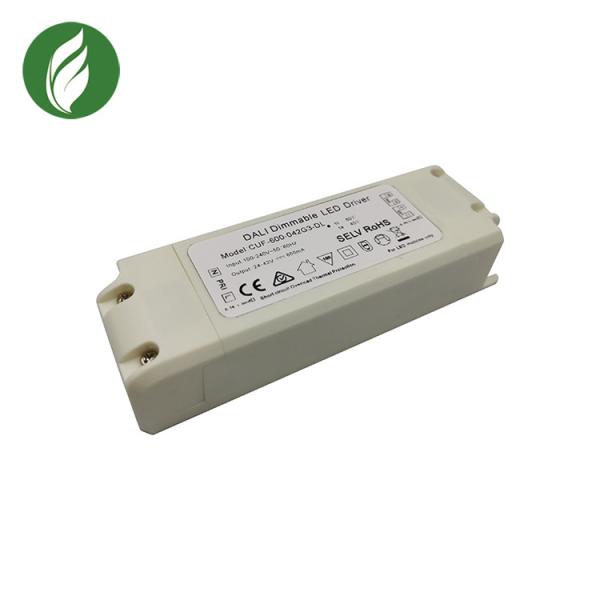

CC Dali Driver 24V 42V DC 600mA Constant Current Dali Dimmable LED Driver

Dimmable LED Driver Product Features

*Dimmingfunction:BuiltinDALIinterfacedimmingfunctionconformtoDALIProtocol
*Workwithleadingedgeandtrailingedgedimmers
*SELVoutputbyisolateddesign
*100%burn-intestingwithfullload
*Open/Short/Over-Voltage/Over-Temperatureprotection `
*5yearswarranty

Dimmable LED Driver Product Specification

Item No. CUF-600-042G3-DL
Output Current 600mA
Output Voltage 24~42V
Output Power 20~28W
Input Voltage 220-240V
Input Frequency 50/60 Hz
Dimension(mm) L130*W43*H21(mm)
Efficiency 88%
Approval CE RoHS


Installation Size

42V Lightweight Dali Dimmers For LED , Durable Dali Constant Current LED Driver

Why Choosing Us?

* Huawei New Energy sole focus on LED drivers and accessories since 2008, which owns an experience R&D team with dozens of patents

* The 20w ultra thin power supply is up to 12mm thickness. We are one of the manufacturers in the world that can produce such thin LED driver in the field of this industry.

* Huawei New Energy can provide customized service and give one stop solution according to different client/application. Such as parameter customization, products consulting/selection and OEM/ODM service.

* Our products are strictly compliant to all major international safety and performance standard. All of our units are 100% tested by a set of rigorous standard control procedures before shipment.

* The products are quite mature and highly recognized by the market. We have already built the sales network in the world thanks to the partners' trust, such as Europe, Australia, US and Southeast Asia etcs.

Our Strength

1. Over Decade Long Experience.

Experience doesn't always count, but 10 years on does!

2. Market Driven R&D

It's not about what we can make, it's what you drive us to make.

3. Flexible Partnership

What MOQ? Let's OEM, ODM & RTS it how you like it!

4. Focus on Delivering Value

Quality is important, so does costs, speed and peace of mind.

5. Dedicated Partner Support

24/7 support is the past, how about a lifelong acquaintance?

6. One Step Ahead

Our core strength lies in the understanding of change and embraces it

Packing

Neutral white/brown or customized color box +Carton(double wall corrugated board, G.W. less than 20KGS); Wood case if necessary.

Shipping

1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;

2. By Air freight or by Sea for large quantity, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

Dimmable LED Driver FAQ

Q1. How can I obtain a sample?
A: Contact us and we will handle it.

Q2. Can I add my own logo?
A: Sure, we offer flexible OEM & ODM solutions. You can have your logo on the product, packaging, user manual, you name it.

Q3. What is your MOQ?
A: None.

Q4. What is the production lead time?
A: We keep a ready to ship stock level on certain product lines, others usually take 2-4 weeks.

Q5. What is the delivery time?
A: We offer shipping via sea, road, rail and air. The shipment time depends on the choice of transportation.

Q6. What is the warranty?
A: We offer a minimum three years warranty along with a comprehensive after sale service.


Q7. Are the products certified?
A: Yes, we are fully certified for the EU and UK markets. If you require any other forms of certificates, do get in
touch.
