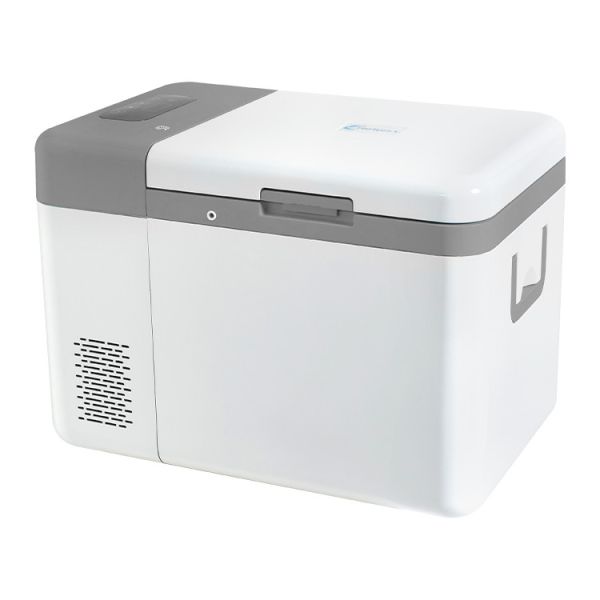

Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Specifications
Place of Origin :
Chian
Brand Name :
Refport
Model Number :
DW-4525
Type :
PORTABLE FREEZER
Style :
Single-Temperature
Capacity :
25L
Temperature :
+25C to -45C
Climate Type :
ALL
Refrigerant :
Helium
Product name :
Portable Ultra Low Temperature Freezer
Application :
Vaccine
Voltage (V) :
110/220V 50/60Hz 12V/24V
Cooling system :
Stirling Cooling System
Compressor :
free piston stirling cooler
Warranty :
1 Year
Temperature Range :
+25C to -45C
Defrost :
Manul
Net Weight (KG) :
17.5KG
Temperature Control :
±1C
Packaging Details :
Carton and Pearl wool;
Allow customization
Price :
$500.00/pieces 1-9 pieces
MOQ :
1 piece
Description
Specification
Name
Portable Ultra Low Temperature Freezer
Type
DW-4525
Storage Volume
25L
Electric Power
100V AC to 240V AC；50Hz,60Hz；12V DC to 24V DC
Maximum Power
60W (0.5A@220V,4.6A@24V)
Cooling Engine
Free-piston Stirling Engine
Refrigerant
Helium (He)
Heat Transport System
Gravity driven thermosiphon
Temperature Range
25℃ to Minus 45℃
Environmental Conditions
Non-corrosive, Non-flammable, Non-explosive, Altitude up to 2000m
Temperature 5℃ to 35℃,maximum relative humidity 80%
Performance Data
Ambient temperature is 25℃；Empty Cabinet
Take 1.5 hours from 25℃ to -45℃
Steady State Energy
Ambient temperature is 25℃
15W
Insulation
High performance vacuum insulated panels, polyurethane foam
Noise
＜55dB
Control Sensor
One RTD(PT100 Class B),precision±0.3
Security
Optional accessories
Warm and cold alarms
Optional accessories
Defrost Method
Manual
Certification
CE/EMC、CE/LVD、CQC
Interior(LxWxD)
300*250*300mm
Exterior(LxWxD)
616*392*455mm
Net Weight, Empty
17.5KG
Shipping(LxWxD)
710*472*522mm
Shipping Weight
20KG
Our Advantages
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Products Description
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Company Profile
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Certifications
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
Product packaging
Vaccine Laboratory Freezer with Ultra Low Temperature and Precise Temperature Control
FAQ

Q&A

Q1. How long will receive the items?
A:Please provide your detail address to us, and we will ask the profession logistics team to figure out it.
Q2.Can I have a sample order?
A:Sure, every item in our company has sample.
Q3.What’s the MOQ?
A:We accept 1 piece order and 10000+ pieces order, The different between them only in price.
Q4.Whether to accept custom or not?
A:We accept OME and ODM, Even OBM is ok.
Q5.What’s Free-piston Stirling engine?
A:FPSC (Free Piston Stirling Cooler) is a new type of completely cfc-free, high efficiency, energy saving and environmental
protection Cooler, which uses a small amount of helium as the coolant. The brief mechanism is that the cylinder (fin) protruding from the main body is cooled by heat exchange, which is a process of repeated cycle of compression, and the stainless steel piston in the main body is constantly moving up and down, resulting in gas explosion.
Q6:What’s the advantages of Free-piston Stirling engine?
A:
1.Oil-Free, Ultra Quiet, Vibration-Free
2.Smallest & Lightest, 2.0kgs (only 1/5 weight of normal compressor)
3.For liquid freezing application, 30% at least energy savings
4.For air cooled application, 50% at least energy savings
5.MagLev technology better reduce system redundancy
6.Ultra compact
7.Light weight
8.Portable
9.Efficient
