Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Refport
Model Number :
JX-80W
Type :
Stirling cooler
Style :
Single-Temperature
Capacity :
N/A
Temperature :
-145C, 0C to -145C
Climate Type :
ALL
Refrigerant :
helium (He), HE
Product name :
Free Piston Stirling Cooler
Cooling System :
Stirling system
Voltage :
100V to 240V 12V/24V
Weight :
3KG
Brand :
Refport
Certificate :
CE/ISO9001
Out Power :
100w
Warranty time :
3 Years
MOQ :
1 piece
Price :
$400.00/pieces 2-99 pieces
Description
Specification
Porduct Name
Free-piston Stirling Cooling Engine
Type
JX-80W1
Input Date
Rated input voltage
24V DC
Rated input voltage range
21.6V to 26.4V DC
Rated input current
≤6A
Output Date
Output current range
0 to 9A
Output voltage range
0 to 16V
Output frequency
80.0Hz
Basic Date
Exterior(LxWxD)
165*140*290mm
Net Weight
3.2KG

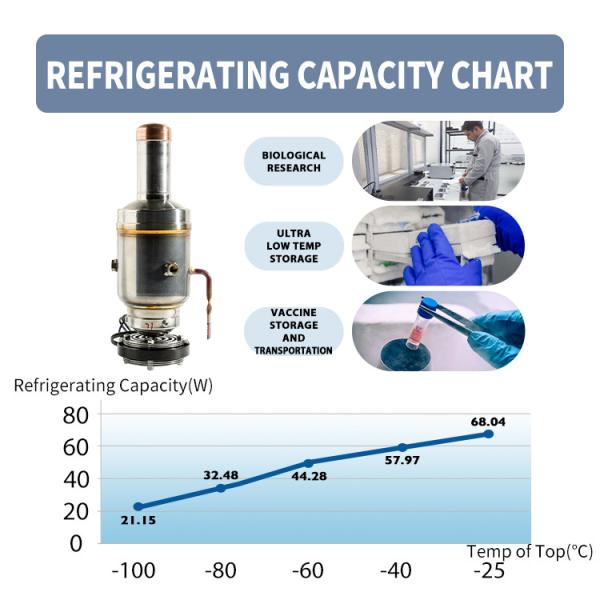

Refrigerating capacity
over 30W @ Minus 80 Degree
Top head temperature
Minus 120 Degree
Work temperature
Minus 10 Degree to 32 Degree
Storage temperature
Minus 20 Degree to 60 Degree
Humidity
20% to 90%
Heat dissipation
Air cooling
Noise
≤55dB
Our Advantages
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Installation methods
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions

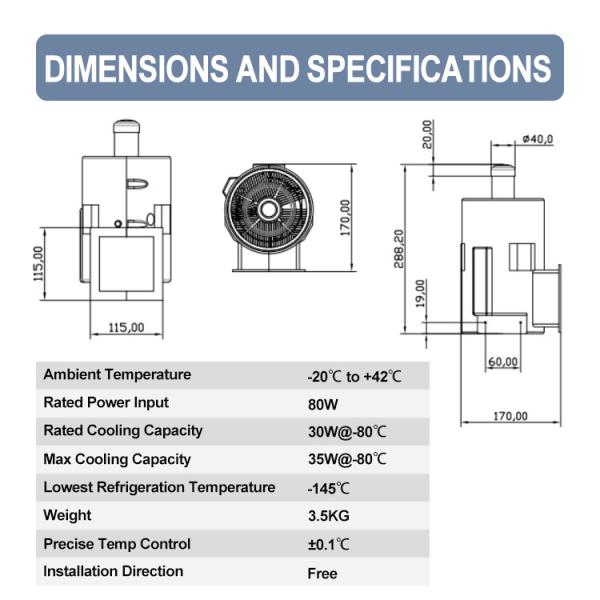

Installation Dimension
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Application field
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Company Profile
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Certifications
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions
Product packaging
Voltage 100V to 240V 12V/24V Free Piston Stirling Cooler -145C for Cooling Solutions

Q&A

Q1. How long will receive the items?
A:Please provide your detail address to us, and we will ask the profession logistics team to figure out it.
Q2.Can I have a sample order?
A:Sure, every item in our company has sample.
Q3.What’s the MOQ?
A:We accept 1 piece order and 10000+ pieces order, The different between them only in price.
Q4.Whether to accept custom or not?
A:We accept OME and ODM, Even OBM is ok.
Q5.What’s Free-piston Stirling engine?
A:FPSC (Free Piston Stirling Cooler) is a new type of completely cfc-free, high efficiency, energy saving and environmental
protection Cooler, which uses a small amount of helium as the coolant. The brief mechanism is that the cylinder (fin) protruding from the main body is cooled by heat exchange, which is a process of repeated cycle of compression, and the stainless steel piston in the main body is constantly moving up and down, resulting in gas explosion.
Q6:What’s the advantages of Free-piston Stirling engine?
A:
1.Oil-Free, Ultra Quiet, Vibration-Free
2.Smallest & Lightest, 2.0kgs (only 1/5 weight of normal compressor)
3.For liquid freezing application, 30% at least energy savings
4.For air cooled application, 50% at least energy savings
5.MagLev technology better reduce system redundancy
6.Ultra compact
7.Light weight
8.Portable
9.Efficient
