Product Description
ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.
1. Applications
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design without sacrificing ampacity.
2. Construction

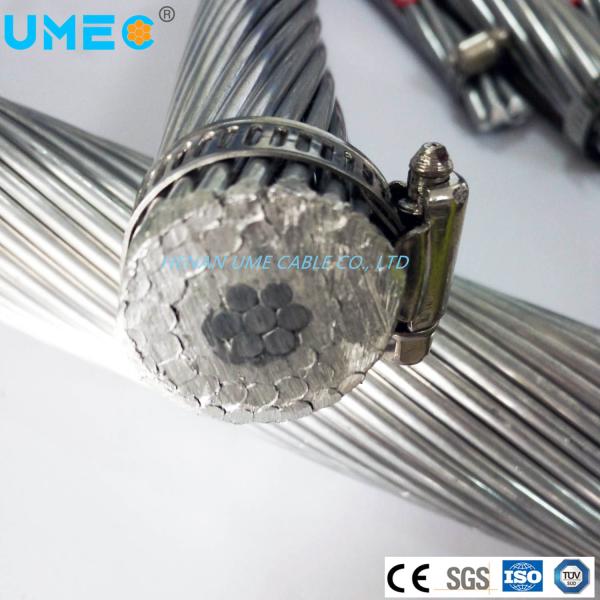

Aluminum wires are concentrically stranded about a steel core. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
3. Standard
ASTM B232, BS215 part2, DIN 48204, IEC 61089,GB/T1179-2008
Product Parameters
BS 215 PART2
Code
Name | Nominal
Area | No. / Nominal Dia. of Wire | Approx. Overall
Dia. | Sectional Area | Approx.
Weight | Nominal Breaking
Load | Max. DC Resistance
at 20°C |
|
|
| Aluminum | Steel | Aluminum | Steel | Total |
| mm2 | No./mm | No./mm | mm | mm2 | mm2 | mm2 | kg/km | kN | Ω/km |
| Gopher | 25 | 6/2.36 | 1/2.36 | 7.08 | 26.24 | 4.38 | 30.62 | 106 | 9.61 | 1.093 |
| Weasel | 30 | 6/2.59 | 1/2.59 | 7.77 | 31.61 | 5.27 | 36.88 | 128 | 11.45 | 0.9077 |
| Ferret | 40 | 6/3.00 | 1/3.00 | 9.00 | 42.41 | 7.07 | 49.48 | 172 | 15.2 | 0.6766 |
| Rabbit | 50 | 6/3.35 | 1/3.35 | 10.05 | 52.88 | 8.82 | 61.7 | 214 | 18.35 | 0.5426 |
| Horse | 70 | 12/2.79 | 7/2.79 | 13.95 | 73.37 | 42.83 | 116.2 | 538 | 61.2 | 0.3936 |
| Dog | 100 | 6/4.72 | 7/1.57 | 14.15 | 105.0 | 13.5 | 118.5 | 394 | 32.7 | 0.2733 |
| Dingo | 150 | 18/3.35 | 1/3.35 | 16.75 | 158.7 | 8.8 | 167.5 | 506 | 35.7 | 0.1815 |
| Wolf | 150 | 30/2.59 | 7/2.59 | 18.13 | 158.1 | 36.8 | 194.9 | 726 | 69.2 | 0.1828 |
| Lynex | 175 | 30/2.79 | 7/2.79 | 19.53 | 183.4 | 42.8 | 226.2 | 842 | 79.8 | 0.1576 |
| Caracal | 175 | 18/3.61 | 1/3.61 | 18.05 | 184.3 | 10.2 | 194.5 | 587 | 41.1 | 0.1563 |
| Panther | 200 | 30/3.00 | 7/3.00 | 21.00 | 212.1 | 49.4 | 261.5 | 974 | 92.25 | 0.1363 |
| Jaguar | 200 | 18/3.86 | 1/3.86 | 19.30 | 210.6 | 11.7 | 222.3 | 671 | 46.55 | 0.1367 |
| Zebra | 400 | 54/3.18 | 7/3.18 | 28.62 | 428.9 | 55.6 | 484.5 | 1621 | 131.9 | 0.0674 |
IEC 61089
Code
Number | Nominal Area | No. / Nominal Dia. of Wire | Approx.Overall
Dia. | Approx.
Weight | Nominal Breaking
Load | Max. DC Resistance
at 20°C |
|
|
|
| Aluminum | Steel | Total | Aluminum | Steel |
| mm2 | mm2 | mm2 | No./mm | No./mm | mm | kg/km | kN | Ω/km |
| 16 | 16 | 2.67 | 18.7 | 6/1.84 | 1/1.84 | 5.52 | 64.6 | 6.08 | 1.7934 |
| 25 | 25 | 4.17 | 29.2 | 6/2.30 | 1/2.30 | 6.9 | 100.9 | 9.13 | 1.1478 |
| 40 | 40 | 6.67 | 46.7 | 6/2.91 | 1/2.91 | 8.73 | 161.5 | 14.4 | 0.7174 |
| 63 | 63 | 10.5 | 73.5 | 6/3.66 | 1/3.66 | 10.98 | 254.4 | 21.63 | 0.4555 |
| 100 | 100 | 16.7 | 117 | 6/4.61 | 1/4.61 | 13.83 | 403.8 | 34.33 | 0.2869 |
| 125 | 125 | 6.94 | 132 | 18/2.97 | 1/2.97 | 14.85 | 397.9 | 29.17 | 0.2304 |
| 125 | 125 | 20.4 | 145 | 26/2.47 | 7/1.92 | 15.64 | 503.9 | 45.69 | 0.2310 |
| 160 | 160 | 8.89 | 169 | 18/3.36 | 1/3.36 | 16.8 | 509.3 | 36.18 | 0.1800 |
| 160 | 160 | 26.1 | 186 | 26/2.80 | 7/2.18 | 17.74 | 644.9 | 57.69 | 0.1805 |
| 200 | 200 | 11.1 | 211 | 18/3.76 | 1/3.76 | 18.8 | 636.7 | 44.22 | 0.1440 |
| 200 | 200 | 32.6 | 233 | 26/3.13 | 7/2.43 | 19.81 | 806.2 | 70.13 | 0.1444 |
| 250 | 250 | 24.6 | 275 | 22/3.80 | 7/2.11 | 21.53 | 880.6 | 68.72 | 0.1154 |
| 250 | 250 | 40.7 | 291 | 26/3.50 | 7/2.72 | 22.16 | 1007.7 | 87.67 | 0.1155 |
| 315 | 315 | 21.8 | 337 | 45/2.99 | 7/1.99 | 23.91 | 1039.6 | 79.03 | 0.0917 |
| 315 | 315 | 51.3 | 366 | 26/3.93 | 7/3.05 | 24.87 | 1269.7 | 106.83 | 0.0917 |
| 400 | 400 | 27.7 | 428 | 45/3.36 | 7/2.24 | 26.88 | 1320.1 | 98.36 | 0.0722 |
| 400 | 400 | 51.9 | 452 | 54/3.07 | 7/3.07 | 27.63 | 1510.3 | 123.04 | 0.0723 |
| 450 | 450 | 31.1 | 481 | 45/3.57 | 7/2.38 | 28.56 | 1485.2 | 107.47 | 0.0642 |
| 450 | 450 | 58.3 | 508 | 54/3.26 | 7/3.26 | 29.34 | 1699.1 | 138.42 | 0.0643 |
| 500 | 500 | 34.6 | 535 | 45/3.76 | 7/2.51 | 30.09 | 1650.2 | 119.41 | 0.0578 |
| 500 | 500 | 64.8 | 565 | 54/3.43 | 7/3.43 | 30.87 | 1887.9 | 153.8 | 0.0578 |
| 560 | 560 | 38.7 | 599 | 45/3.98 | 7/2.65 | 31.83 | 1848.2 | 133.74 | 0.0516 |
| 560 | 560 | 70.9 | 631 | 54/3.63 | 19/2.18 | 32.68 | 2103.4 | 172.59 | 0.0516 |
| 630 | 630 | 43.6 | 674 | 45/4.22 | 7/2.81 | 33.75 | 2079.2 | 150.45 | 0.0459 |
| 630 | 630 | 79.8 | 710 | 54/3.85 | 19/2.31 | 34.65 | 2366.3 | 191.77 | 0.0459 |
| 710 | 710 | 49.1 | 759 | 45/4.48 | 7/2.99 | 35.85 | 2343.2 | 169.56 | 0.0407 |
| 710 | 710 | 89.9 | 800 | 54/4.09 | 19/2.45 | 36.79 | 2666.8 | 216.12 | 0.0407 |
| 800 | 800 | 34.6 | 835 | 72/3.76 | 7/2.51 | 37.61 | 2480.2 | 167.41 | 0.0361 |
| 800 | 800 | 66.7 | 867 | 84/3.48 | 7/3.48 | 38.28 | 2732.7 | 205.33 | 0.0362 |
| 800 | 800 | 101 | 901 | 54/4.34 | 19/2.61 | 39.09 | 3004.9 | 243.52 | 0.0362 |
| 900 | 900 | 38.9 | 939 | 72/3.99 | 7/2.66 | 39.9 | 2790.2 | 188.33 | 0.0321 |
| 900 | 900 | 75 | 975 | 84/3.69 | 7/3.69 | 40.59 | 3074.2 | 226.5 | 0.0322 |
| 1000 | 1000 | 43.2 | 1043 | 72/4.21 | 7/2.80 | 42.08 | 3100.3 | 209.26 | 0.0289 |
| 1120 | 1120 | 47.3 | 1167 | 72/4.45 | 19/1.78 | 44.5 | 3464.9 | 234.53 | 0.0258 |
| 1120 | 1120 | 91.2 | 1211 | 84/4.12 | 19/2.47 | 45.31 | 3811.5 | 283.17 | 0.0258 |
| 1250 | 1250 | 102 | 1352 | 84/4.35 | 19/2.61 | 47.85 | 4253.9 | 316.04 | 0.0232 |
| 1250 | 1250 | 52.8 | 1303 | 72/4.70 | 19/1.88 | 47 | 3867.1 | 261.75 | 0.0231 |
ASTM B232 Code
Name | Nominal Area | No. / Nominal Dia. of Wire | Approx. Overall
Dia. | Approx.
Weight | Nominal Breaking
Load | Max. DC Resistance
at 20°C |
|
|
|
| Aluminum | Steel | Total | Aluminum | Steel |
| mm2 | mm2 | mm2 | No./mm | No./mm | mm | kg/km | kN | Ω/km |
| Turkey | 13.3 | 2.22 | 15.52 | 6/1.68 | 1/1.68 | 5.04 | 53.6 | 4.98 | 2.1499 |
| Swan | 21.18 | 3.53 | 24.71 | 6/2.12 | 1/2.12 | 6.36 | 85.3 | 7.83 | 1.3501 |
| Swanate | 21.12 | 5.35 | 26.47 | 7/1.96 | 1/2.61 | 6.53 | 99.6 | 9.79 | 1.3539 |
| Sparrow | 33.59 | 5.6 | 39.19 | 6/2.67 | 1/2.67 | 8.01 | 135.7 | 11.92 | 0.8512 |
| Sparate | 33.54 | 8.55 | 42.09 | 7/2.47 | 1/3.30 | 8.24 | 158.7 | 15.08 | 0.8525 |
| Robin | 42.41 | 7.07 | 49.48 | 6/3.00 | 1/3.00 | 9.00 | 171.1 | 14.86 | 0.6742 |
| Raven | 53.52 | 8.92 | 62.44 | 6/3.37 | 1/3.37 | 10.11 | 216.1 | 18.33 | 0.5343 |
| Quail | 67.33 | 11.22 | 78.55 | 6/3.78 | 1/3.78 | 11.34 | 272 | 22.46 | 0.4247 |
| Pigeon | 85.12 | 14.19 | 99.31 | 6/4.25 | 1/4.25 | 12.75 | 343 | 28.02 | 0.3359 |
| Penguin | 107.22 | 17.87 | 125.09 | 6/4.77 | 1/4.77 | 14.31 | 432.7 | 35.36 | 0.2667 |
| Waxwing | 134.98 | 7.5 | 142.48 | 18/3.09 | 1/3.09 | 15.45 | 430.2 | 29.80 | 0.2129 |
| Partridge | 134.87 | 21.99 | 156.86 | 26/2.57 | 7/2.00 | 16.28 | 545.9 | 47.15 | 0.2141 |
| Ostrich | 152.19 | 24.71 | 176.9 | 26/2.73 | 7/2.12 | 17.28 | 613.4 | 53.38 | 0.1897 |
| Merlin | 170.22 | 9.46 | 179.68 | 18/3.47 | 1/3.47 | 17.35 | 542.8 | 37.36 | 0.1688 |
| Linnet | 170.55 | 27.83 | 198.38 | 26/2.89 | 7/2.25 | 18.31 | 687.5 | 59.16 | 0.1693 |
| Oriole | 170.5 | 39.78 | 210.28 | 30/2.69 | 7/2.69 | 18.83 | 783.3 | 72.06 | 0.1698 |
| Chickadee | 200.93 | 11.16 | 212.09 | 18/3.77 | 1/3.77 | 18.85 | 641.3 | 43.15 | 0.1430 |
| Brant | 201.56 | 26.13 | 227.69 | 24/3.27 | 7/2.18 | 19.62 | 761 | 61.83 | 0.1433 |
| Ibis | 201.34 | 32.73 | 234.07 | 26/3.14 | 7/2.44 | 19.88 | 812.4 | 68.05 | 0.1434 |
| Lark | 200.9 | 46.88 | 247.78 | 30/2.92 | 7/2.92 | 20.44 | 925.2 | 84.07 | 0.1441 |
| Pelican | 242.31 | 13.46 | 255.77 | 18/4.14 | 1/4.14 | 20.70 | 769.7 | 51.15 | 0.1186 |
| Flicker | 241.58 | 31.4 | 272.98 | 24/3.58 | 7/2.39 | 21.49 | 913.5 | 72.06 | 0.1195 |
| Hawk | 241.65 | 39.19 | 280.84 | 26/3.44 | 7/2.67 | 21.77 | 975.1 | 81.84 | 0.1195 |
| Hen | 241.27 | 56.3 | 297.57 | 30/3.20 | 7/3.20 | 22.40 | 1110.6 | 98.30 | 0.1200 |
| Osprey | 282.47 | 15.69 | 298.16 | 18/4.47 | 1/4.47 | 22.35 | 897.7 | 59.60 | 0.1017 |
| Parakeet | 282.31 | 36.6 | 318.91 | 24/3.87 | 7/2.58 | 23.22 | 1065.6 | 83.18 | 0.1023 |
| Dove | 282.59 | 45.92 | 328.51 | 26/3.72 | 7/2.89 | 23.55 | 1138.6 | 94.30 | 0.1022 |
| Eagle | 282.07 | 65.82 | 347.89 | 30/3.46 | 7/3.46 | 24.22 | 1295.6 | 114.76 | 0.1026 |
| Peacock | 306.13 | 39.78 | 345.91 | 24/4.03 | 7/2.69 | 24.19 | 1158.9 | 90.74 | 0.0943 |
| Squab | 305.83 | 49.81 | 355.64 | 26/3.87 | 7/3.01 | 24.51 | 1237 | 101.41 | 0.0944 |
| Wood Duck | 307.06 | 71.65 | 378.71 | 30/3.61 | 7/3.61 | 25.27 | 1408.4 | 121.43 | 0.0943 |
| Teal | 307.06 | 69.62 | 376.68 | 30/3.61 | 19/2.16 | 25.24 | 1396.6 | 124.54 | 0.0943 |
| Kingbird | 323.01 | 17.95 | 340.96 | 18/4.78 | 1/4.78 | 23.90 | 1026.6 | 68.05 | 0.0890 |
| Swift | 323.02 | 8.97 | 331.99 | 36/3.38 | 1/3.38 | 23.66 | 956.5 | 60.05 | 0.0890 |
| Rook | 323.07 | 41.88 | 364.95 | 24/4.14 | 7/2.76 | 24.84 | 1217.5 | 95.19 | 0.0894 |
| Grosbeak | 321.84 | 52.49 | 374.33 | 26/3.97 | 7/3.09 | 25.15 | 1300.8 | 104.97 | 0.0897 |
| Scoter | 322.56 | 75.26 | 397.82 | 30/3.70 | 7/3.70 | 25.90 | 1480.7 | 127.66 | 0.0897 |
| Egret | 322.56 | 73.54 | 396.1 | 30/3.70 | 19/2.22 | 25.90 | 1469 | 130.77 | 0.0897 |
| Flamingo | 337.27 | 43.72 | 380.99 | 24/4.23 | 7/2.82 | 25.38 | 1276.6 | 99.64 | 0.0856 |
| Gannet | 338.26 | 54.9 | 393.16 | 26/4.07 | 7/3.16 | 25.76 | 1363.3 | 110.31 | 0.0854 |
| Stilt | 363.27 | 46.88 | 410.15 | 24/4.39 | 7/2.92 | 26.32 | 1370.4 | 107.20 | 0.0795 |
| Starling | 361.93 | 59.15 | 421.08 | 26/4.21 | 7/3.28 | 26.68 | 1463.7 | 118.32 | 0.0798 |
| Redwing | 362.06 | 82.41 | 444.47 | 30/3.92 | 19/2.35 | 27.43 | 1650.6 | 143.23 | 0.0799 |
| Coot | 401.86 | 11.16 | 413.02 | 36/3.77 | 1/3.77 | 26.39 | 1195.8 | 73.39 | 0.0715 |
| Tern | 403.77 | 27.83 | 431.6 | 45/3.38 | 7/2.25 | 27.03 | 1331.8 | 94.30 | 0.0715 |
| Condor | 402.33 | 52.15 | 454.48 | 54/3.08 | 7/3.08 | 27.72 | 1520.7 | 118.32 | 0.0718 |
| Cuckoo | 402.33 | 52.15 | 454.48 | 24/4.62 | 7/3.08 | 27.72 | 1522.2 | 117.43 | 0.0718 |
| Drake | 402.56 | 65.44 | 468 | 26/4.44 | 7/3.45 | 28.11 | 1626.4 | 131.66 | 0.0717 |
| Mallard | 403.84 | 91.78 | 495.62 | 30/4.14 | 19/2.48 | 28.96 | 1836 | 159.24 | 0.0717 |
| Ruddy | 455.5 | 31.67 | 487.17 | 45/3.59 | 7/2.40 | 28.74 | 1507.3 | 104.53 | 0.0634 |
| Canary | 456.28 | 59.15 | 515.43 | 54/3.28 | 7/3.28 | 29.52 | 1723.1 | 134.33 | 0.0633 |
| Catbird | 484.61 | 13.46 | 498.07 | 36/4.14 | 1/4.14 | 28.98 | 1434.4 | 86.74 | 0.0593 |
| Rail | 483.84 | 33.54 | 517.38 | 45/3.70 | 7/2.47 | 29.61 | 1598.1 | 110.76 | 0.0597 |
| Cardinal | 484.53 | 62.81 | 547.34 | 54/3.38 | 7/3.38 | 30.42 | 1825.9 | 142.34 | 0.0596 |
| Tanager | 522.79 | 14.52 | 537.31 | 36/4.30 | 1/4.30 | 30.10 | 1553.5 | 93.85 | 0.0550 |
| Orotlan | 523.87 | 36.31 | 560.18 | 45/3.85 | 7/2.57 | 30.81 | 1730.5 | 118.32 | 0.0551 |
| Curlew | 522.51 | 67.73 | 590.24 | 54/3.51 | 7/3.51 | 31.59 | 1977.6 | 153.90 | 0.0553 |
| Bluejay | 565.49 | 38.9 | 604.39 | 45/4.00 | 7/2.66 | 31.98 | 1866 | 127.66 | 0.0511 |
| Finch | 565.03 | 71.57 | 636.6 | 54/3.65 | 19/2.19 | 32.85 | 2127.8 | 164.58 | 0.0514 |
| Bunting | 605.76 | 41.88 | 647.64 | 45/4.14 | 7/2.76 | 33.12 | 1996.9 | 136.55 | 0.0477 |
| Grackle | 602.79 | 76.89 | 679.68 | 54/3.77 | 19/2.27 | 33.97 | 2278.1 | 176.59 | 0.0481 |
| Skylark | 646.02 | 17.95 | 663.97 | 36/4.78 | 1/4.78 | 33.46 | 1913.6 | 115.65 | 0.0445 |
| Bittern | 644.4 | 44.66 | 689.06 | 45/4.27 | 7/2.85 | 34.17 | 2130.8 | 145.89 | 0.0448 |
| Pheasant | 645.08 | 81.71 | 726.79 | 54/3.90 | 19/2.34 | 35.10 | 2431.4 | 183.26 | 0.0450 |
| Dipper | 684.24 | 47.2 | 731.44 | 45/4.40 | 7/2.93 | 35.19 | 2263.2 | 154.79 | 0.0422 |
| Martin | 685.39 | 86.67 | 772.06 | 54/4.02 | 19/2.41 | 36.17 | 2581.7 | 194.82 | 0.0423 |
| Bobolink | 725.27 | 50.14 | 775.41 | 45/4.53 | 7/3.02 | 36.24 | 2397.2 | 164.13 | 0.0398 |
| Plover | 726.92 | 91.78 | 818.7 | 54/4.14 | 19/2.48 | 37.24 | 2734.9 | 206.39 | 0.0399 |
| Nuthatch | 764.2 | 52.83 | 817.03 | 45/4.65 | 7/3.10 | 37.20 | 2529.6 | 171.25 | 0.0378 |
| Parrot | 766.06 | 97.03 | 863.09 | 54/4.25 | 19/2.55 | 38.25 | 2883.7 | 217.51 | 0.0379 |
| Lapwing | 807.53 | 55.6 | 863.13 | 45/4.78 | 7/3.18 | 38.22 | 2663.5 | 180.14 | 0.0358 |
| Falcon | 806.23 | 102.43 | 908.66 | 54/4.36 | 19/2.62 | 39.26 | 3038.5 | 229.52 | 0.0360 |
| Chukar | 903.18 | 73.54 | 976.72 | 84/3.70 | 19/2.22 | 40.70 | 3083.1 | 217.51 | 0.0321 |
| Bluebird | 1092.84 | 88.84 | 1181.68 | 84/4.07 | 19/2.44 | 44.76 | 3731.9 | 256.65 | 0.0266 |
| Kiwi | 1099.76 | 47.52 | 1147.28 | 72/4.41 | 7/2.94 | 44.10 | 3423.9 | 215.28 | 0.0264 |
| Thrasher | 1171.42 | 63.94 | 1235.36 | 76/4.43 | 19/2.07 | 45.79 | 3754.2 | 243.75 | 0.0248 |
| ACSR WITH HIGH STRENGTH STRANDING |
| Grouse | 40.54 | 14.12 | 54.66 | 8/2.54 | 1/4.24 | 9.32 | 221.4 | 21.75 | 0.7089 |
| Petrel | 51.61 | 30.1 | 81.71 | 12/2.34 | 7/2.34 | 11.70 | 377.7 | 42.08 | 0.5595 |
| Minorca | 56.11 | 32.73 | 88.84 | 12/2.44 | 7/2.44 | 12.20 | 411.1 | 45.81 | 0.5146 |
| Leghorn | 68.2 | 39.78 | 107.98 | 12/2.69 | 7/2.69 | 13.45 | 499.2 | 55.16 | 0.4234 |
| Guinea | 80.36 | 46.88 | 127.24 | 12/2.92 | 7/2.92 | 14.60 | 589.7 | 64.94 | 0.3593 |
| Dotterel | 89.41 | 52.15 | 141.56 | 12/3.08 | 7/3.08 | 15.40 | 656.1 | 70.28 | 0.3230 |
| Dorking | 96.51 | 56.3 | 152.81 | 12/3.20 | 7/3.20 | 16.00 | 707.8 | 75.62 | 0.2992 |
| Cochin | 107.04 | 62.44 | 169.48 | 12/3.37 | 7/3.37 | 16.85 | 783.9 | 84.07 | 0.2698 |
| Brahma | 102.79 | 91.78 | 194.57 | 16/2.86 | 19/2.48 | 18.12 | 1003.8 | 114.76 | 0.2809 |
DIN 48204 Code
Name | Nominal Area | No. / Nominal Dia. of Wire | Approx. Overall
Dia. | Approx.
Weight | Nominal Breaking
Load | Max. DC Resistance
at 20°C |
|
|
|
| Aluminum | Steel | Total | Aluminum | Steel |
| mm2 | mm2 | mm2 | No./mm | No./mm | mm | kg/km | kN | Ω/km |
| Turkey | 13.3 | 2.22 | 15.52 | 6/1.68 | 1/1.68 | 5.04 | 53.6 | 4.98 | 2.1499 |
| Swan | 21.18 | 3.53 | 24.71 | 6/2.12 | 1/2.12 | 6.36 | 85.3 | 7.83 | 1.3501 |
| Swanate | 21.12 | 5.35 | 26.47 | 7/1.96 | 1/2.61 | 6.53 | 99.6 | 9.79 | 1.3539 |
| Sparrow | 33.59 | 5.6 | 39.19 | 6/2.67 | 1/2.67 | 8.01 | 135.7 | 11.92 | 0.8512 |
| Sparate | 33.54 | 8.55 | 42.09 | 7/2.47 | 1/3.30 | 8.24 | 158.7 | 15.08 | 0.8525 |
| Robin | 42.41 | 7.07 | 49.48 | 6/3.00 | 1/3.00 | 9.00 | 171.1 | 14.86 | 0.6742 |
| Raven | 53.52 | 8.92 | 62.44 | 6/3.37 | 1/3.37 | 10.11 | 216.1 | 18.33 | 0.5343 |
| Quail | 67.33 | 11.22 | 78.55 | 6/3.78 | 1/3.78 | 11.34 | 272 | 22.46 | 0.4247 |
| Pigeon | 85.12 | 14.19 | 99.31 | 6/4.25 | 1/4.25 | 12.75 | 343 | 28.02 | 0.3359 |
| Penguin | 107.22 | 17.87 | 125.09 | 6/4.77 | 1/4.77 | 14.31 | 432.7 | 35.36 | 0.2667 |
| Waxwing | 134.98 | 7.5 | 142.48 | 18/3.09 | 1/3.09 | 15.45 | 430.2 | 29.80 | 0.2129 |
| Partridge | 134.87 | 21.99 | 156.86 | 26/2.57 | 7/2.00 | 16.28 | 545.9 | 47.15 | 0.2141 |
| Ostrich | 152.19 | 24.71 | 176.9 | 26/2.73 | 7/2.12 | 17.28 | 613.4 | 53.38 | 0.1897 |
| Merlin | 170.22 | 9.46 | 179.68 | 18/3.47 | 1/3.47 | 17.35 | 542.8 | 37.36 | 0.1688 |
| Linnet | 170.55 | 27.83 | 198.38 | 26/2.89 | 7/2.25 | 18.31 | 687.5 | 59.16 | 0.1693 |
| Oriole | 170.5 | 39.78 | 210.28 | 30/2.69 | 7/2.69 | 18.83 | 783.3 | 72.06 | 0.1698 |
| Chickadee | 200.93 | 11.16 | 212.09 | 18/3.77 | 1/3.77 | 18.85 | 641.3 | 43.15 | 0.1430 |
| Brant | 201.56 | 26.13 | 227.69 | 24/3.27 | 7/2.18 | 19.62 | 761 | 61.83 | 0.1433 |
| Ibis | 201.34 | 32.73 | 234.07 | 26/3.14 | 7/2.44 | 19.88 | 812.4 | 68.05 | 0.1434 |
| Lark | 200.9 | 46.88 | 247.78 | 30/2.92 | 7/2.92 | 20.44 | 925.2 | 84.07 | 0.1441 |
| Pelican | 242.31 | 13.46 | 255.77 | 18/4.14 | 1/4.14 | 20.70 | 769.7 | 51.15 | 0.1186 |
| Flicker | 241.58 | 31.4 | 272.98 | 24/3.58 | 7/2.39 | 21.49 | 913.5 | 72.06 | 0.1195 |
| Hawk | 241.65 | 39.19 | 280.84 | 26/3.44 | 7/2.67 | 21.77 | 975.1 | 81.84 | 0.1195 |
| Hen | 241.27 | 56.3 | 297.57 | 30/3.20 | 7/3.20 | 22.40 | 1110.6 | 98.30 | 0.1200 |
| Osprey | 282.47 | 15.69 | 298.16 | 18/4.47 | 1/4.47 | 22.35 | 897.7 | 59.60 | 0.1017 |
| Parakeet | 282.31 | 36.6 | 318.91 | 24/3.87 | 7/2.58 | 23.22 | 1065.6 | 83.18 | 0.1023 |
| Dove | 282.59 | 45.92 | 328.51 | 26/3.72 | 7/2.89 | 23.55 | 1138.6 | 94.30 | 0.1022 |
| Eagle | 282.07 | 65.82 | 347.89 | 30/3.46 | 7/3.46 | 24.22 | 1295.6 | 114.76 | 0.1026 |
| Peacock | 306.13 | 39.78 | 345.91 | 24/4.03 | 7/2.69 | 24.19 | 1158.9 | 90.74 | 0.0943 |
| Squab | 305.83 | 49.81 | 355.64 | 26/3.87 | 7/3.01 | 24.51 | 1237 | 101.41 | 0.0944 |
| Wood Duck | 307.06 | 71.65 | 378.71 | 30/3.61 | 7/3.61 | 25.27 | 1408.4 | 121.43 | 0.0943 |
| Teal | 307.06 | 69.62 | 376.68 | 30/3.61 | 19/2.16 | 25.24 | 1396.6 | 124.54 | 0.0943 |
| Kingbird | 323.01 | 17.95 | 340.96 | 18/4.78 | 1/4.78 | 23.90 | 1026.6 | 68.05 | 0.0890 |
| Swift | 323.02 | 8.97 | 331.99 | 36/3.38 | 1/3.38 | 23.66 | 956.5 | 60.05 | 0.0890 |
| Rook | 323.07 | 41.88 | 364.95 | 24/4.14 | 7/2.76 | 24.84 | 1217.5 | 95.19 | 0.0894 |
| Grosbeak | 321.84 | 52.49 | 374.33 | 26/3.97 | 7/3.09 | 25.15 | 1300.8 | 104.97 | 0.0897 |
| Scoter | 322.56 | 75.26 | 397.82 | 30/3.70 | 7/3.70 | 25.90 | 1480.7 | 127.66 | 0.0897 |
| Egret | 322.56 | 73.54 | 396.1 | 30/3.70 | 19/2.22 | 25.90 | 1469 | 130.77 | 0.0897 |
| Flamingo | 337.27 | 43.72 | 380.99 | 24/4.23 | 7/2.82 | 25.38 | 1276.6 | 99.64 | 0.0856 |
| Gannet | 338.26 | 54.9 | 393.16 | 26/4.07 | 7/3.16 | 25.76 | 1363.3 | 110.31 | 0.0854 |
| Stilt | 363.27 | 46.88 | 410.15 | 24/4.39 | 7/2.92 | 26.32 | 1370.4 | 107.20 | 0.0795 |
| Starling | 361.93 | 59.15 | 421.08 | 26/4.21 | 7/3.28 | 26.68 | 1463.7 | 118.32 | 0.0798 |
| Redwing | 362.06 | 82.41 | 444.47 | 30/3.92 | 19/2.35 | 27.43 | 1650.6 | 143.23 | 0.0799 |
| Coot | 401.86 | 11.16 | 413.02 | 36/3.77 | 1/3.77 | 26.39 | 1195.8 | 73.39 | 0.0715 |
| Tern | 403.77 | 27.83 | 431.6 | 45/3.38 | 7/2.25 | 27.03 | 1331.8 | 94.30 | 0.0715 |
| Condor | 402.33 | 52.15 | 454.48 | 54/3.08 | 7/3.08 | 27.72 | 1520.7 | 118.32 | 0.0718 |
| Cuckoo | 402.33 | 52.15 | 454.48 | 24/4.62 | 7/3.08 | 27.72 | 1522.2 | 117.43 | 0.0718 |
| Drake | 402.56 | 65.44 | 468 | 26/4.44 | 7/3.45 | 28.11 | 1626.4 | 131.66 | 0.0717 |
| Mallard | 403.84 | 91.78 | 495.62 | 30/4.14 | 19/2.48 | 28.96 | 1836 | 159.24 | 0.0717 |
| Ruddy | 455.5 | 31.67 | 487.17 | 45/3.59 | 7/2.40 | 28.74 | 1507.3 | 104.53 | 0.0634 |
| Canary | 456.28 | 59.15 | 515.43 | 54/3.28 | 7/3.28 | 29.52 | 1723.1 | 134.33 | 0.0633 |
| Catbird | 484.61 | 13.46 | 498.07 | 36/4.14 | 1/4.14 | 28.98 | 1434.4 | 86.74 | 0.0593 |
| Rail | 483.84 | 33.54 | 517.38 | 45/3.70 | 7/2.47 | 29.61 | 1598.1 | 110.76 | 0.0597 |
| Cardinal | 484.53 | 62.81 | 547.34 | 54/3.38 | 7/3.38 | 30.42 | 1825.9 | 142.34 | 0.0596 |
| Tanager | 522.79 | 14.52 | 537.31 | 36/4.30 | 1/4.30 | 30.10 | 1553.5 | 93.85 | 0.0550 |
| Orotlan | 523.87 | 36.31 | 560.18 | 45/3.85 | 7/2.57 | 30.81 | 1730.5 | 118.32 | 0.0551 |
| Curlew | 522.51 | 67.73 | 590.24 | 54/3.51 | 7/3.51 | 31.59 | 1977.6 | 153.90 | 0.0553 |
| Bluejay | 565.49 | 38.9 | 604.39 | 45/4.00 | 7/2.66 | 31.98 | 1866 | 127.66 | 0.0511 |
| Finch | 565.03 | 71.57 | 636.6 | 54/3.65 | 19/2.19 | 32.85 | 2127.8 | 164.58 | 0.0514 |
| Bunting | 605.76 | 41.88 | 647.64 | 45/4.14 | 7/2.76 | 33.12 | 1996.9 | 136.55 | 0.0477 |
| Grackle | 602.79 | 76.89 | 679.68 | 54/3.77 | 19/2.27 | 33.97 | 2278.1 | 176.59 | 0.0481 |
| Skylark | 646.02 | 17.95 | 663.97 | 36/4.78 | 1/4.78 | 33.46 | 1913.6 | 115.65 | 0.0445 |
| Bittern | 644.4 | 44.66 | 689.06 | 45/4.27 | 7/2.85 | 34.17 | 2130.8 | 145.89 | 0.0448 |
| Pheasant | 645.08 | 81.71 | 726.79 | 54/3.90 | 19/2.34 | 35.10 | 2431.4 | 183.26 | 0.0450 |
| Dipper | 684.24 | 47.2 | 731.44 | 45/4.40 | 7/2.93 | 35.19 | 2263.2 | 154.79 | 0.0422 |
| Martin | 685.39 | 86.67 | 772.06 | 54/4.02 | 19/2.41 | 36.17 | 2581.7 | 194.82 | 0.0423 |
| Bobolink | 725.27 | 50.14 | 775.41 | 45/4.53 | 7/3.02 | 36.24 | 2397.2 | 164.13 | 0.0398 |
| Plover | 726.92 | 91.78 | 818.7 | 54/4.14 | 19/2.48 | 37.24 | 2734.9 | 206.39 | 0.0399 |
| Nuthatch | 764.2 | 52.83 | 817.03 | 45/4.65 | 7/3.10 | 37.20 | 2529.6 | 171.25 | 0.0378 |
| Parrot | 766.06 | 97.03 | 863.09 | 54/4.25 | 19/2.55 | 38.25 | 2883.7 | 217.51 | 0.0379 |
| Lapwing | 807.53 | 55.6 | 863.13 | 45/4.78 | 7/3.18 | 38.22 | 2663.5 | 180.14 | 0.0358 |
| Falcon | 806.23 | 102.43 | 908.66 | 54/4.36 | 19/2.62 | 39.26 | 3038.5 | 229.52 | 0.0360 |
| Chukar | 903.18 | 73.54 | 976.72 | 84/3.70 | 19/2.22 | 40.70 | 3083.1 | 217.51 | 0.0321 |
| Bluebird | 1092.84 | 88.84 | 1181.68 | 84/4.07 | 19/2.44 | 44.76 | 3731.9 | 256.65 | 0.0266 |
| Kiwi | 1099.76 | 47.52 | 1147.28 | 72/4.41 | 7/2.94 | 44.10 | 3423.9 | 215.28 | 0.0264 |
| Thrasher | 1171.42 | 63.94 | 1235.36 | 76/4.43 | 19/2.07 | 45.79 | 3754.2 | 243.75 | 0.0248 |
| ACSR WITH HIGH STRENGTH STRANDING |
| Grouse | 40.54 | 14.12 | 54.66 | 8/2.54 | 1/4.24 | 9.32 | 221.4 | 21.75 | 0.7089 |
| Petrel | 51.61 | 30.1 | 81.71 | 12/2.34 | 7/2.34 | 11.70 | 377.7 | 42.08 | 0.5595 |
| Minorca | 56.11 | 32.73 | 88.84 | 12/2.44 | 7/2.44 | 12.20 | 411.1 | 45.81 | 0.5146 |
| Leghorn | 68.2 | 39.78 | 107.98 | 12/2.69 | 7/2.69 | 13.45 | 499.2 | 55.16 | 0.4234 |
| Guinea | 80.36 | 46.88 | 127.24 | 12/2.92 | 7/2.92 | 14.60 | 589.7 | 64.94 | 0.3593 |
| Dotterel | 89.41 | 52.15 | 141.56 | 12/3.08 | 7/3.08 | 15.40 | 656.1 | 70.28 | 0.3230 |
| Dorking | 96.51 | 56.3 | 152.81 | 12/3.20 | 7/3.20 | 16.00 | 707.8 | 75.62 | 0.2992 |
| Cochin | 107.04 | 62.44 | 169.48 | 12/3.37 | 7/3.37 | 16.85 | 783.9 | 84.07 | 0.2698 |
| Brahma | 102.79 | 91.78 | 194.57 | 16/2.86 | 19/2.48 | 18.12 | 1003.8 | 114.76 | 0.2809 |
TESTING
Certifications
Packaging & Shipping
Customer Visit
Company Profile
UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have been supplied quality products to more than 50 countries. Our mission is to offer our customers best quality cable and wire products with most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services and robust products.
UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, occupies total area of more than 200,000 square meters, with building area 20,000 square meters. The real capital assets more than more than USD 6 million , with total 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be top scale of industry, but our highly automatic facilities and elite employees are the best of industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with most competitive price within market.
FAQ
Q1: Are you a manufacturer?
Yes, we are the manufacturer.
Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.
Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free
Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.
Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.
Q6: What is your payment term?
T/T or L/C
Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
