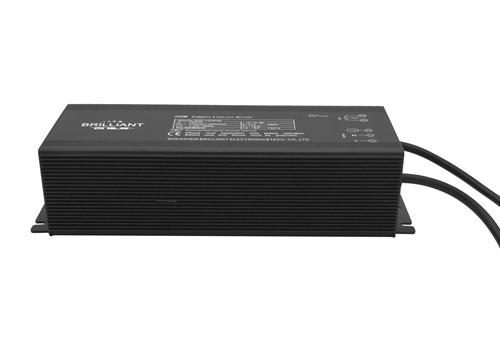

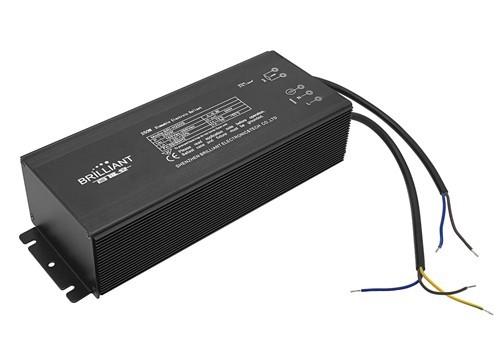

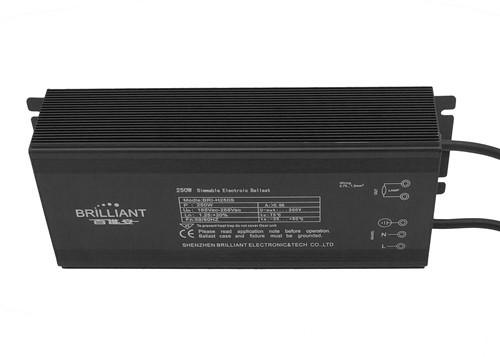

Full Voltage HPS Electronic Ballast Safety 250W With Over - Current Protection
Full Voltage HPS Electronic Ballast Safety 250W With Over - Current Protection
Full Voltage HPS Electronic Ballast Safety 250W With Over - Current Protection
Full Voltage HPS Electronic Ballast Safety 250W With Over - Current Protection
Full Voltage HPS Electronic Ballast Safety 250W With Over - Current Protection
Full Voltage HPS Electronic Ballast Safety 250W With Over - Current Protection
Full Voltage HPS Electronic Ballast Safety 250W With Over - Current Protection
Full Voltage HPS Electronic Ballast Safety 250W With Over - Current Protection
Specifications
Brand Name :
GrowBetter, RIKOLITE, OEM
Model Number :
BRI-Q250S-260
Certification :
CE, RoHs
Place of Origin :
China
Material :
Aluminum
Style :
Electronic
Usage :
HID, High Intensity Discharge
Matched Tube :
HPS, MH, CMH, CDM, XED
THD :
＜10%
PFC :
＞0.95
MOQ :
2
Price :
Negotiable
Packaging Details :
Carton Package
Delivery Time :
1~5 days for sample, 7~15 days for orders
Payment Terms :
T/T, Western Union, PayPal, TransferWise
Supply Ability :
10000pcs/month
Description

250W full voltage Digital Ballast HPS MH CDM Dimmable Electronic Ballasts

Advantages and characteristics

1, energy saving

The ballast itself consumes less power, saves 40% more power than an inductive ballast, increases light efficiency by 12%, and has a ballast power factor greater than 0.96.

2, constant power, extend the life of the light source

The light source starts quickly without flicker, so that the color temperature and brightness of the light source do not change with voltage fluctuations. The constant low-frequency operating current output will not produce acoustic resonance phenomenon, reduce the damage to the lamp, and extend the life of the light source by 30%.

3, environmental protection, low noise and no pollution

Low harmonic content, no interference with the power grid and other equipment, low noise and no radiation.

4, to achieve intelligent control

With over-voltage, over-current, open circuit, short circuit, temperature and many other protection features, fire safety is guaranteed. Dimmable and smart control.

5, for a wide range of ambient temperatures

Use a wide range of ambient temperature, low temperature rise, -25 C ~ +55 C

Specification Model BRI-Q250S-260-GP BRI-Q250S-260
Material Aluminum Aluminum
Dimension 260*100*63mm 260*100*63mm
Net Weight 1280g 1280g
Style Electronic Electronic
Usage HID, High Intensity Discharge HID, High Intensity Discharge
Matched Bulb HPS, MH HPS, MH, CMH, CDM, XED
Technical Parameters Input Voltage 95~270VAC 95~270VAC
Input Current 2.93A~1.03A 2.93A~1.03A
Input Power 270W±5 270W±5
Input Frequency 50Hz～60Hz 50Hz～60Hz
Surge Current ＜20A ＜20A
Power Factor ＞0.95 ＞0.95
THD ＜10% ＜10%
Input Insurance 250V/4A 250V/4A
Ouput Power 250W±5 250W±5
Lamp Voltage 75V～150V 75V～150V
Output Frequency 45KHz±20KHz 160Hz±10Hz
Crest Factor ＜1.7 ＜1.7
Open Circuit Protection ＞300V ＞300V
Ignition [striking] voltage ＜5KV ＜5KV
Short-circuit protection YES YES
Open-circuit protection YES YES
Ignition failure protection YES YES
Thermal protection YES YES
Lamp failure protection YES YES
Low-voltage protection YES YES
Ballast to Lamp distance <15m <5m
Working temperature -25℃～+50℃ -25℃～+50℃
Min starting temperature -25℃ -25℃
EMC EN55015,FCC18C EN55015,FCC18C
Support dimming NO YES
Dimming setting // 2-phase time control
3-phase time control
Packaging Inner Box Size
Carton Package 39*27*29.5 cm 39*27*29.5 cm
Package Qty. 10pcs/carton 10pcs/carton
Package G.W. 12.3KG 12.3KG
Package CBM
