Automatic high speed screw bolt counting and packing machine for plastic parts
Automatic high speed screw bolt counting and packing machine for plastic parts
Automatic high speed screw bolt counting and packing machine for plastic parts
Automatic high speed screw bolt counting and packing machine for plastic parts
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
UMEO
Model Number :
Umeo-420S
Certification :
CE Certification
MOQ :
1 Sets
Price :
US $17000.00
Type :
Multi-Function Packaging Machine, Counting Machine,Packing Line
Condition :
New
Function :
Filling, Sealing
Application :
Chemical, Commodity, Machinery & Hardware, Medical, Textiles
Packaging Type :
Bags, Film, Foil, Pouch, Stand-up Pouch
Packaging Material :
Plastic
Automatic Grade :
Automatic
Driven Type :
Pneumatic
Voltage :
220V
Power :
2.2KW, 220V,50/60HZ,2.2Kw
Dimension(L*W*H) :
L1220*W1015*H1350mm
Bag Length :
80-300mm
Bag width :
60-200mm
Width of packing film (Max.) :
420mm
Packing speed :
10-60 bag/min
Measuring range :
1500ml (Max.)
Roll Dia. of packing film :
300mm
Film material :
Complex film:OPP/CPP,OPP/PE,Al.Film etc.
Film thickness :
40-100um
After-sales Service Provided :
Engineers available to service machinery overseas
Selling Units :
Single item
Single volume  :
8 cm 3
Single gross weight :
1350.0 kg
Package Type :
inner is PE film,external with standard non-fumigation plywood case.
Description

screw counting packing machine

Automatic high speed screw bolt counting and packing machine for plastic parts

Product Description

Feature

1. screw counting packing machine with imported PLC computer control system,color touch screen,easy operation and much more stable;

2. Seperate pneumatic control and power control with low noise and more stable circuit ;

3. Imported servo pulling film system and imported color sensor,accurate positioning,perfect operation;

4. Multiple automatic alarm protection,reducing the loss furthest;

5. External loading film system to make the setting easily.
6. Enclosed mechanism is used to prevent dust entering effectively.

Specification

Model Umeo-420S
Air consumption 0.8Mpa,0.4m³/min
Bag length 80-300mm
Bag width 60-200mm
Width of packing film(max) 420mm
Packing speed 10-60 bag/min
Measuring range 1000ml (Max.)
Roll Dia. of packing film 300mm
Film material Complex film:OPP/CPP,OPP/PE,Al.Film etc.
Film thickness 40-100um
Power 220V,50/60HZ,2.2Kw
Dimension L1220*W1015*H1350mm
N.W.

500KG

Application

screw counting packing machine is suitable for precise piece product packing,such as bolt,screw,nuts,toys,candy etc.

Bag sample

Automatic high speed screw bolt counting and packing machine for plastic parts

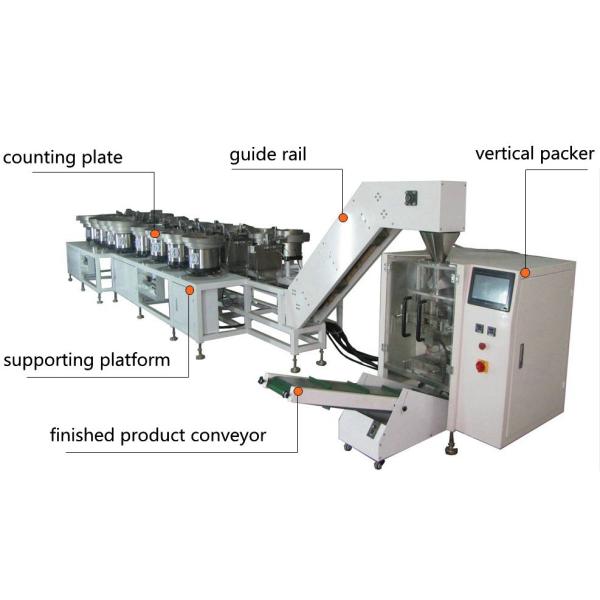

Detailed Images

UMEO always pays much more attention to every part of each packing machine

Automatic high speed screw bolt counting and packing machine for plastic parts

Automatic high speed screw bolt counting and packing machine for plastic parts

Company Information

Foshan Umeo Packing Machinery Co.,Ltd is a high-tech enterprise,specializing in kinds of packing machinery development,design,manufacture,sales and service with more than 15 YEARS experience.

Umeo Packing Machinery has gained rich experience in packing machinery industry and has developed full-flown technique of several ranges,including vertical packing machine,granule packing machine,liquid packaging machine,powder packaging machinery,semi-auto filling machine,tea packing machine,high-speed packing machine,counting-packing system,production packing line etc.

UMEOPACK integrity,strength and quality of products recognized by the industry

Automatic high speed screw bolt counting and packing machine for plastic parts

Our Services

Pre-sales Services:

Step 1: One on one free project consulation,designing and free cost evaluation.

Step 2: Production line recommendation.

Step 3: Order confirmed.

Medium-sales Services:

Step 4: Deposit in and machine production on.

Step 5: Qualified raw material suppliers ( fabric,solutions,films,stickers etc) introduced.

Step 6: Raw material sample purchased for trial running.

Step 7: Machine inspection,installation and operation training conducted.

Step 8: Wipes production experience provides.

Step 9: Machine settled for standard plywood case packaging.

Step10:Balance received and delivery machine.

After-sales Services:

Step11: Machine transportation.

Step12: Long-distance guidance for installation and operation or engineer available for oversea.

Step13: Life-long machine maintenance service and warranty.

Payment & Shipment

Automatic high speed screw bolt counting and packing machine for plastic parts

Automatic high speed screw bolt counting and packing machine for plastic parts
