Specifications
Brand Name :
UMEOPACK
Model Number :
Umeo-420D
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD18500 per set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
85 set per year
Delivery Time :
10-25 days
Packaging Details :
Inner is PE film,external is non-fumigation plywood case
Driving mode :
Pneumatic
Bag length :
80-300mm
Bag width :
60-200mm
Max. film width :
420mm
Packing speed :
70 packet/min
Measuring range :
1000ml
Film roll dia. :
320mm
Film material :
complex film,such as OPP/CPP,OPP/PE,Al. film
Film thickness :
0.04-0.08mm
Voltage :
220V,380V
Power :
3.0Kw,50/60hz
Dimension :
L1220xW1015xH1350mm
Packing size :
L1470xW1200xH1750mm
N.W. :
500Kg
G.W. :
585Kg
Optional device :
Measuring cup
Description

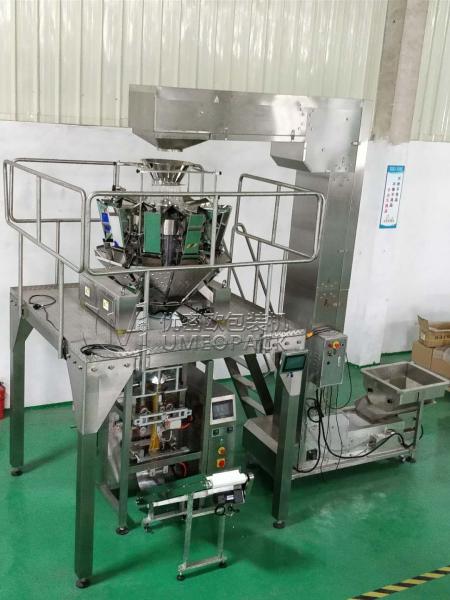

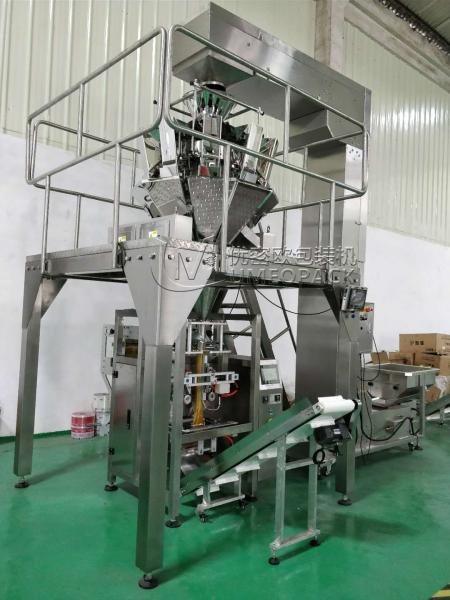

Automatic stainless steel vertical grain sunflower seeds multihead weigher filling sealing granule packing machine

Feature

1. Imported PLC computer control system,color touch screen,easy operation and much more stable

2. Seperate pneumatic control and power control with low noise and more stable circuit

3. Imported servo pulling film system and imported color sensor,accurate positioning,perfect operation

4. Multiple automatic alarm protection,reducing the loss furthest

5. External loading film system to make the setting easily

6. Enclosed mechanism is used to prevent dust entering effectively

2 year warranty auto puffed plantain potato chips bag snack sachet  filling weighing and packing machine with nitrogen

Specification

2 year warranty auto puffed plantain potato chips bag snack sachet  filling weighing and packing machine with nitrogen

Application

Automatic granule packing machine is suitable for grain packing ,such as fruits chips,candy,puffed,biscuit,apple dry etc.

2 year warranty auto puffed plantain potato chips bag snack sachet  filling weighing and packing machine with nitrogen

Sample Bag

2 year warranty auto puffed plantain potato chips bag snack sachet  filling weighing and packing machine with nitrogen

Details of UMEOPACK

2 year warranty auto puffed plantain potato chips bag snack sachet  filling weighing and packing machine with nitrogen

Technological Process

2 year warranty auto puffed plantain potato chips bag snack sachet  filling weighing and packing machine with nitrogen

Company

Foshan Umeo Packing Machinery Co.,Ltd is a high-tech enterprise,specializing in kinds of packing machinery development,design,manufacture,sales and service with more than 15 YEARS experience.

Umeo Packing Machinery has gained rich experience in packing machinery industry and has developed full-flown technique of several ranges,including vertical packing machine,granule packing machine,liquid packaging machine,powder packaging machinery,semi-auto filling machine,tea packing machine,high-speed packing machine,counting-packing system,production packing line etc.

UMEOPACK integrity, strength and quality of products recognized by the industry.

2 year warranty auto puffed plantain potato chips bag snack sachet  filling weighing and packing machine with nitrogen

Shipping Package

2 year warranty auto puffed plantain potato chips bag snack sachet  filling weighing and packing machine with nitrogen

FAQ

1. What kinds of product does your company have ?

UMEOPACK products include vertical form fill seal packing machine,counting number packing machine,multilanes packing machine,pillow packing machine,semi-auto filling machine etc; Also the customized packing machine is available,especially the Production Packing Line is welcome.

2. What is product your packing machine can pack?

UMEOPACK packing machine mainly pack Granule ( bean,rice,candy,hardware etc.); Liquid ( water,shampoo,jelly,soup etc) ; Powder ( flour,milk powder,coffee powder,detergent powder etc)

3. What is bag shape your packing machine can make ?

Usually back sealing bag ( pillow bag ),three-side sealing bag,four-side sealing bag,qual seal bag,gusset bag,triangle bag,linking bag etc.

4. I know little about the packing machine before,How to use it ? Is it complex ?

It is very simple we make sure you can use it easily as per our advice.

As you can get any information that can help you to install and use the packing machine,such as a detailed instruction,a whole set design,a installation video,even our technician.

5. How about your packing machine quality ? any certification you have ?

UMEOPACK has a strict Quality Control system which is from Design Dept.-Purchasing Dept.-Product Dept.-Quality Dept.-Packing Dept. ; eighty percent have over 8 year experience,and the left twenty percent has 5 year experience; Meanwhile our packing machine has International Standard CE certification which has passed the most important standard of MD and LVD at the same time.

6. How to choose the suitable packing machine for my product ?

You just need to tell us about your packing product details,packing request that we will provide a reasonable advice and the D Graph for you; even we can provide some choices for you to get a best one.

7. What is the process to order the packing machine ?

First: we will provide the most suitable and reasonable packing machine for you as per your request and offer you a best quotation;

Second:we will arrange the production once get your confirmation and the payment advice;About 10-30 days later we will take the finished pictures and working video for you;meanwhile our Department of Quality Assurance will inspect it till make sure every part is no problem completely; then we pack and ship it,but usually you need to arrange the balance payment before shipment;

Third: we deal with the Customs Clearance and provide the shipment document for Customs and you; After some time that you can get packing machine well.

8. What is the after-sales and guarantee ?

First: we will assist you to install the packing machine and make sure it can work smoothly;

Second: we will provide one year of maintenance and warranty period free of charge.

The buyer will carry out the maintenance tasks and we will supply and ship the replacement for defective parts to the buyer free of charge, except the damage is caused by buyer.
