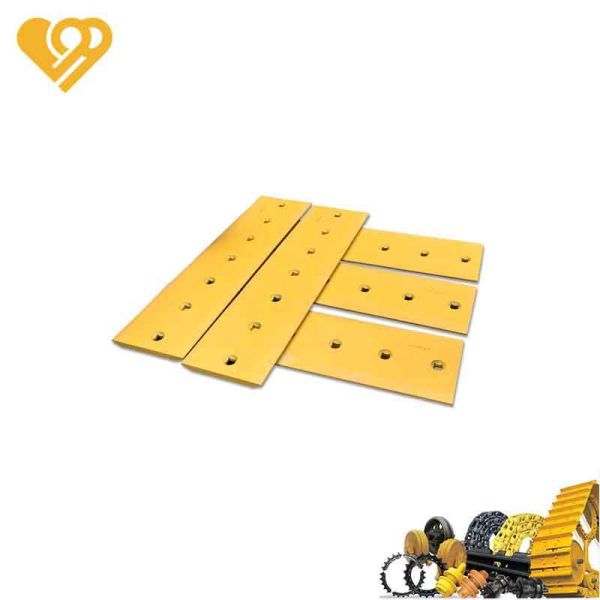

Excellent Mechanical Properties and Wear Resistance for Grader Blades and Side Cutters
Excellent Mechanical Properties and Wear Resistance for Grader Blades and Side Cutters
Excellent Mechanical Properties and Wear Resistance for Grader Blades and Side Cutters
Excellent Mechanical Properties and Wear Resistance for Grader Blades and Side Cutters
Excellent Mechanical Properties and Wear Resistance for Grader Blades and Side Cutters
Excellent Mechanical Properties and Wear Resistance for Grader Blades and Side Cutters
Excellent Mechanical Properties and Wear Resistance for Grader Blades and Side Cutters
Excellent Mechanical Properties and Wear Resistance for Grader Blades and Side Cutters
Specifications
Brand Name :
YT
Model Number :
For All Series
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 PCS/Month
Delivery Time :
Within 7-30 Days
Packaging Details :
Standard Packaging
Material :
Q345B/HM500/HM400/HC80/HC45
Dimensions :
Standard
Shipment :
By Air,Ship or Express
H.S. Code :
84314999
Colour :
Yellow or Customer Required
Certifiion :
ISO9001-9002
Stock :
Yes
Description

Excellent Mechanical Properties and Wear Resistance for Grader Blades and Side Cutters

We provide an extensive range of cutting edges and side cutters crafted from various types of carbon-rich and boron-enriched steels. Numerous of these products are constructed using carbon-rich and boron-enriched steels that undergo thermal processing and hardening, enhancing their durability to fulfill the rigorous demands of excavation and extraction operations.

1. What is the Grader Blade & Side Cutter?

The grader's primary working tools, including the blade and the side cutting edges, collaborate with supplementary mechanisms to perform tasks such as soil excavation, removal, grading, and transportation. They are also used for the formation and upkeep of unpaved roads, roadbeds, soil or grass surface stripping, trench digging, slope cleaning, and surface leveling. These components can also serve to protect against potential damage.

2. Production Processes

Excellent Mechanical Properties and Wear Resistance for Grader Blades and Side Cutters

3. Why Choose Us?

* Through professional quench-tempering processes to guarantee excellent mechanical properties, high strength and superior wear resistance to bending and breakage.

* Hardness 280-320HB for reduced wear and longer life, adding value to your products further to your business by maximizing the durability of your products.

* Optional material with high carbon steel or heat-treated boron steel for different appliions.

* Available dimensions for all standard grader blades or customized dimensions,such as 5 feet/6 feet/7 feet/8 feet/11 hole/ 13 hole/15 hole/17 hole.

4. Material parameters

MATERIAL PARAMETERS

Material Code

Material

Type

Hardness

(HRC)

Yielding Strength

(MPa)

Tensile

Strength

(MPa)

Elongation

(％)

Impact

Energy

(J/c㎡)
HM500

Heat-treated

boron steel

 46-52 ≥1250 ≥1500 ≥7 ≥40(25℃ KV)
HM450

Welding friendly

material

 42-48 ≥850 ≥1400 ≥8 ≥40(25℃ KV)
HC80

High carbon steel

(non-treated)

 25-32 ≥450 ≥900 ≥11 ≥15(25℃ KV)
HC45

High carbon steel

(two types)

 20-45 ≥355 ≥600 ≥16 ≥39(25℃ KV)

5. Detecting Equipments

Excellent Mechanical Properties and Wear Resistance for Grader Blades and Side Cutters

6. Main Dimensions of Installation

Part No.

Length

(mm)

Width

(mm)

Thickness

(mm)

No.of

Holes

Bolt Dia

(inch)

Weight

(kg)
9W4500 1039 330 35 7 1" 88.3
112-2473 824 330 45 5 1" 90.3
7T9127 824 330 35 5 1" 70.1
9W5232 824 330 30 5 1" 59.7
7T4345 810 330 40 5 1" 79.4
7T4346 810 330 40 5 1" 79.4
112-2471 803 330 45 5 1" 88
7T9125 803 330 35 5 1" 67
6Y5540 803 330 30 5 1" 57
113-0321 800 330 60 5 1" 113.9
7T6591 983 280 25 6 7/8" 50.7
7T6936 908 280 25 6 7/8" 46.5
4T2890 1359 254 25 9 3/4" 62.3
6Y3840 1227 254 25 8 3/4" 57.1
9W1878 1229 254 19 8 3/4" 43
107-3484 1215 254 45 8 1" 97.4
6Y5359 900 254 25 6 7/8" 41.2
6Y5374 899 254 35 6 7/8" 56.7
122-9227 894 254 25 6 7/8" 41.3
4T5318 894 254 19 6 7/8" 31.6
109-9093 890 254 19 6 3/4" 30.9
4T2985 802 254 25 5 3/4" 37.9
4T3021 1824 203 19 18 5/8" 50
4T3011 1619 203 19 11 3/4" 44.9
4T2315 1558 203 19 10 3/4" 43
4T3009 1520 203 19 10 3/4" 42.5

7. Our Advantages

* World-class quality

* Factory sale directly with reasonable price

* 35 years' experience in Excavator & Bulldozer spare parts manufacturing

* Flexible payment terms including T/T, L/C and so on

* Fast delivery within 30 days after contract established

* Professional sales team, quality inspection and report, maritime logistics guidance

* After-sale services: video technical support, 24h online support
