Underground Construction Lift Platform Truck Large Size Max Loading Weight 1t 30D Rotation
Underground Construction Lift Platform Truck Large Size Max Loading Weight 1t 30D Rotation
Specifications
Brand Name :
tongguan
Model Number :
UC-1C
Certification :
KA
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
35-45days
Packaging Details :
standard
Length :
8000mm
Width :
1800mm
Height :
2400mm
Wheel Track :
1520mm
Wheel Base :
3410mm
Max Lifting Height :
≧6000mm
Description

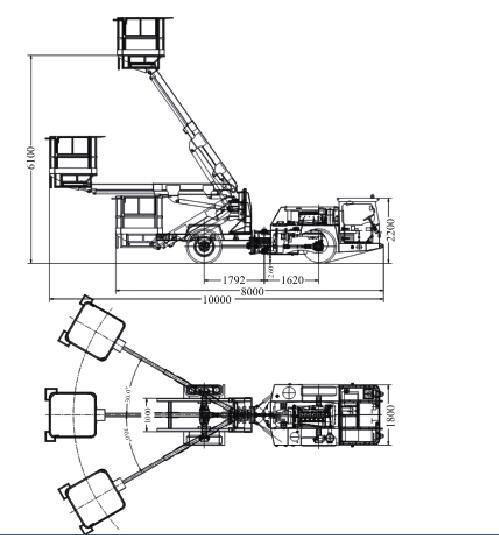

UC-1C (Arm style) Truck With Lifting Platform Trailing Arm Type Underground Platform Hand Truck

Used to lift goods/material or people to maintenance properly underground

(1) Max. lifting height (from the ground) 6m
(2) Max. loading weight 1t
(3) The crane can swing 30° left and right along the axis of rotation

Technical Parameter:

Parameter Description Unit Parameter Value
Appearance length mm 8000±100
Width mm 1800±50
Height(including small lift) mm 2400±50
Machine quality kg 9000±300
Max Traction kN ≧80
Min. Ground clearance mm ≧230
Gradeability(Overload) % 25
Lateral swing angle (º) 40 left and right respectively
Steering angle (º) 7-10 left and right respectively
Wheel base mm 1520
Wheel track mm 3410
Turning radius inside mm ≦4000
Turning radius outside mm ≦6100
Maximum speed of Hydraulic transmission Ⅰgear km/h 4.5±0.45
Ⅱgear km/h 10±1
Ⅲgear km/h 22±2
Travel speed for Hydrostatic transmission Infinitely variable speed km/h 32±2
Rated Load capacity kg 1000
Max. Lifting height (from the ground) mm ≥6000
Max. swing angle of the arm (º) 30 left and right respectively
Car dimension Length mm 1400
Width mm 1350
Height mm 1080
