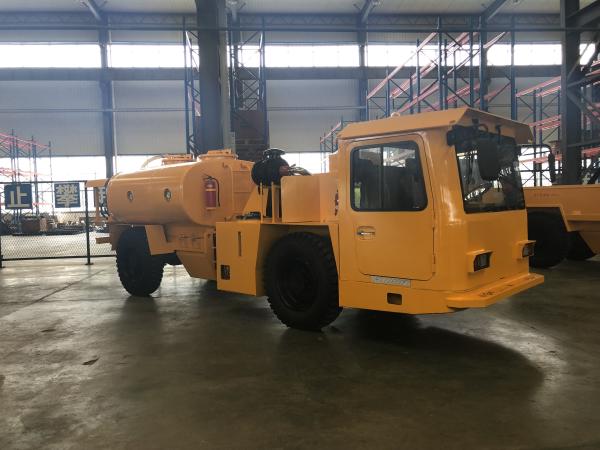

Underground Fueling Truck Service Utility Vehicle 3410mm Wheel Base With Cab
Underground Fueling Truck Service Utility Vehicle 3410mm Wheel Base With Cab
Specifications
Brand Name :
Tongguan
Model Number :
FLYG
Certification :
KA
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
35-45days
Packaging Details :
standard
Total weight :
7500±300kg
Dimensions(L*W*H) :
7000±100*1800±50*2250±50mm
Wheel base :
3410mm
Wheel tread :
1510mm
Min. ground clearance :
≥230mm
Gradeability :
≥12°
Description

Underground Fueling truck service vehicle

1. Main Technical Parameters

Item Unit Parameters
3000Lsingle/ dual cabins 3500L three cabins 4000Lfour cabins
Dimensions Length mm 7000±100 7200±100 7600±100
Width mm 1800±50 1800±50 1800±50
Height mm 2250±50 2200±50 2300±50
Total weight kg 7500±300 8500±300 9000±300
Wheel base mm 3410 3410 3410
Wheel tread mm 1510 1510 1510
Min. ground clearance mm ≥230 ≥230 ≥230
Gradeability (º) ≥12 ≥12 ≥12
Lateral oscillation angle (º) 7～10 either side 7～10 either side 7～10 either side
Max. steering angle (º) 40 40 40
Turning radius Inner side mm ≤4100 ≤4000 ≤4000
Outboard mm ≤6000 ≤6000 ≤6000
Max. travel speed 1st gear km/h 4.5±0.45 4.5±0.45 4.5±0.45
2nd gear km/h 10±1 10±1 10±1
3rd gear km/h 22±2 22±2 22±2
Max. tractive force kN ≥80 ≥80 ≥80
Fuel tank capacity L

3000

(1000+2000)

3500

(3000+300+200)

4000

(500+500+1000+2000)
Refueling flow L/min (30～55) (30～55) (30～55)
Allowing suction m 3 3 3
2. Product Superiority
  • Safety:
  1. DANA wet multi-disc brake
  2. With Cab
  3. Effective lightening
  4. Dual-circuit braking system effectively ensures brake safety
  5. Obtained Mining Products Safety Mark Certificate
  • Reliability:
  1. World famous brand engine (DEUTZ, CUMMINS) with air-cold and water-cold option. At the same power, air-cold engine with more power and maintenance-free. Water-cold engine has low noise and long life.
  2. World famous brand, the US DANA double change system.
  3. World famous brand Italy SALAMI pump.
  4. Brands of brake system fillung valve, foot brake valve are the US MICO, Italy SAFIM and the US SUN.
  5. Structural components are processed by professional distressing equipment and shot blasting.
  6. Main electrical components are Germany Schneider products.
  • Economy:

High-quality well-known brand parts effectively ensure the normal operation of equipment, low failure rate and low maintenance frequency.

  • Environmental friendly:

Exhaust purification adopts famous brands products, effectively ensure low pollutant emission.

  • Service:
  1. Customized according to customer needs for products, after-sales and spare parts store.
  2. Enclosed Cab with air-conditioner.
  3. Centralized lubrication system
  4. Fire extinguishing system.
  5. Narrow space steel pipe system, maintenance-free.
  6. Electronic-controlled engine, PLC control system.
  7. Infinitely variable speeds control system.
  8. Brake system with high performance liquid filling valve.

3. Drawing

Underground Fueling Truck Service Utility Vehicle 3410mm Wheel Base With Cab
