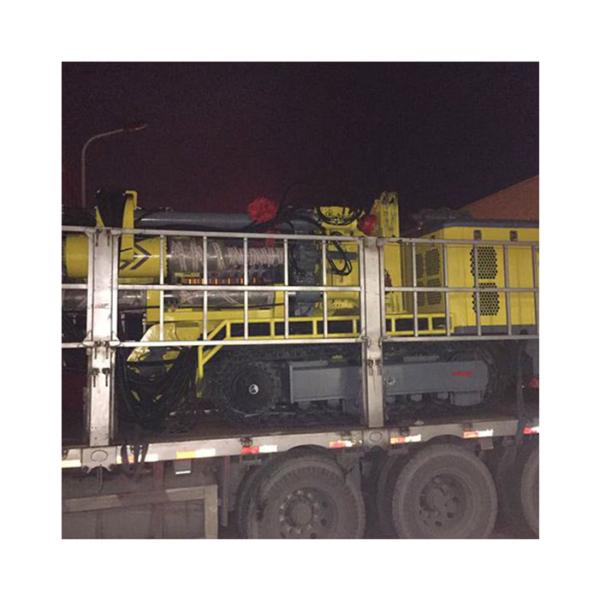

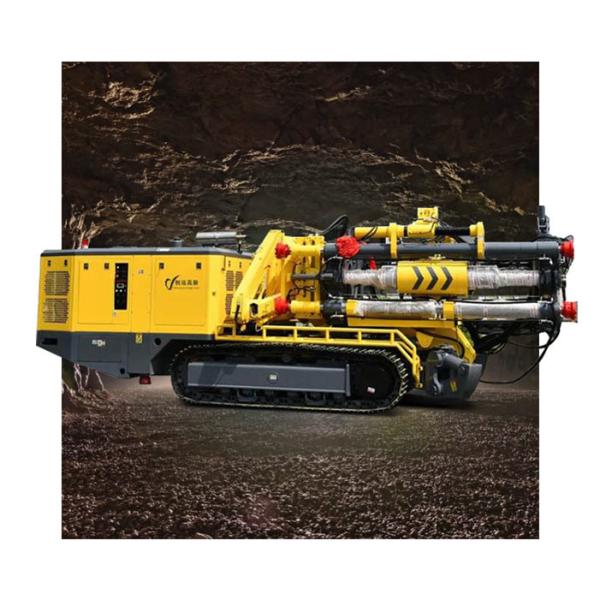

Hydraulic Lifting Drill Raise Bore Machine 400m Max Energy Saving
Hydraulic Lifting Drill Raise Bore Machine 400m Max Energy Saving
Hydraulic Lifting Drill Raise Bore Machine 400m Max Energy Saving
Hydraulic Lifting Drill Raise Bore Machine 400m Max Energy Saving
Hydraulic Lifting Drill Raise Bore Machine 400m Max Energy Saving
Hydraulic Lifting Drill Raise Bore Machine 400m Max Energy Saving
Hydraulic Lifting Drill Raise Bore Machine 400m Max Energy Saving
Hydraulic Lifting Drill Raise Bore Machine 400m Max Energy Saving
Hydraulic Lifting Drill Raise Bore Machine 400m Max Energy Saving
Hydraulic Lifting Drill Raise Bore Machine 400m Max Energy Saving
Hydraulic Lifting Drill Raise Bore Machine 400m Max Energy Saving
Hydraulic Lifting Drill Raise Bore Machine 400m Max Energy Saving
Specifications
Brand Name :
Beijun
Model Number :
CY-R80
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
USD 280000-300000 Set
Payment Terms :
T/T, L/C
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
13 days
Packaging Details :
Customized packaging
nominal raise diameter :
2001mm
maximum raise diameter :
2501mm
2nd raise diameter :
3501mm
maximum raise depth :
401m
pilot hole :
241°
drill angle from horizontal :
61~91mm
Description

Function Characteristics

Reaming of different diameters can be done by replacing the cutter, the disassembly size is small, and the downhole is convenient; a variety of roller cutters can be selected to suit different rock characteristics.

The loading and unloading operation of the drill rods can be completed in the whole process, which saves staffing and reduces labor intensity.

Constant-power load-sensitive hydraulic pump and load-sensitive electromagnetic proportional valve group, full-scale sensitive control, no overflow, no heat, high efficiency and energy saving. The oil absorption, pipeline, oil return and oil drainage multi-stage filtration isolation, the system is not easy to be polluted, and the hydraulic components work more reliably.

Performance Parameter

unite CY-R80 CY-R120 CY-R 120D
operation nominal raise diameter mm 2000 3000 3000
maximum raise diameter mm 2500 3500 3500
2nd raise diameter mm 3500 4500 4500
maximum raise depth m 400 200 400
pilot hole ° 241 280 280
drill angle from horizontal mm 60~90 60~90 60~90
propulsion feed force kN 1017@35MPa 1940@35MPa 2528@35MPa
lifting force kN 2425@35MPa 1940@35MPa 4310@35MPa
feed distance mm 1 450 1455 1440
rotation nomianl torque kN.m 82 168 168
peak torque kN.m 94 192 192
rotation speed r/min 0~30 0~24 0~24
power volfage V standard: 380 (optional: 660/1000/1 140)
motor power kW 90 132 132
