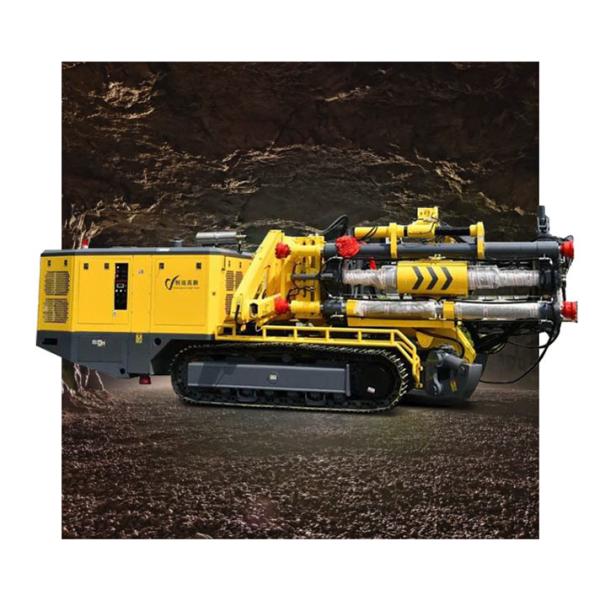

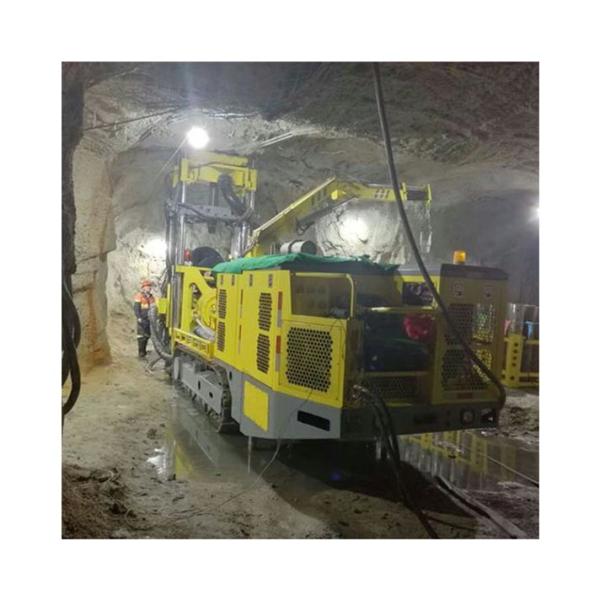

High Torque Hydraulic Raise Boring Equipment 3500mm Diameter 132KW Motor Power
High Torque Hydraulic Raise Boring Equipment 3500mm Diameter 132KW Motor Power
High Torque Hydraulic Raise Boring Equipment 3500mm Diameter 132KW Motor Power
High Torque Hydraulic Raise Boring Equipment 3500mm Diameter 132KW Motor Power
High Torque Hydraulic Raise Boring Equipment 3500mm Diameter 132KW Motor Power
High Torque Hydraulic Raise Boring Equipment 3500mm Diameter 132KW Motor Power
High Torque Hydraulic Raise Boring Equipment 3500mm Diameter 132KW Motor Power
High Torque Hydraulic Raise Boring Equipment 3500mm Diameter 132KW Motor Power
High Torque Hydraulic Raise Boring Equipment 3500mm Diameter 132KW Motor Power
High Torque Hydraulic Raise Boring Equipment 3500mm Diameter 132KW Motor Power
High Torque Hydraulic Raise Boring Equipment 3500mm Diameter 132KW Motor Power
High Torque Hydraulic Raise Boring Equipment 3500mm Diameter 132KW Motor Power
Specifications
Brand Name :
Beijun
Model Number :
CY-R80
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
USD 280000-300000 Set
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
14 days
Packaging Details :
Customized packaging
nominal raise diameter :
2003mm
maximum raise diameter :
2496mm
2nd raise diameter :
3500mm
maximum raise depth :
399m
pilot hole :
241°
drill angle from horizontal :
60~90mm
Description

High Torque Hydraulic Raise Boring Machine 3500mm Diameter 132KW Motor Power

Function Characteristics

Thanks to the modular design of Raise Boring Machine, It has a high degree of flexibility even in limited space and is therefore suitable for a wide range of applications in the mining industry.

Our raise boring machine has proven its worth with its modular design and its efficient center-free drive.

Vertical shaft excavation is an important method of shaft excavation in the mining industry. It consists of digging a vertical or near vertical hole without explosives between the underground mine and the ground, or between two layers of mines.

Due to the development of this innovative technology, shaft will play an increasingly important role in a wide range of applications. Raise boring machine can be used to transport muck or ore, conveyor shafts, energy, water and air supply shafts, or hydropower station water intake shafts – safe, precise and economical.

Performance Parameter

unite CY-R80 CY-R120 CY-R 120D
operation nominal raise diameter mm 2000 3000 3000
maximum raise diameter mm 2500 3500 3500
2nd raise diameter mm 3500 4500 4500
maximum raise depth m 400 200 400
pilot hole ° 241 280 280
drill angle from horizontal mm 60~90 60~90 60~90
propulsion feed force kN 1017@35MPa 1940@35MPa 2528@35MPa
lifting force kN 2425@35MPa 1940@35MPa 4310@35MPa
feed distance mm 1 450 1455 1440
rotation nomianl torque kN.m 82 168 168
peak torque kN.m 94 192 192
rotation speed r/min 0~30 0~24 0~24
power volfage V standard: 380 (optional: 660/1000/1 140)
motor power kW 90 132 132
