Concrete Transport Shotcrete Spraying Machine 4×4 Easy Maintenance
Concrete Transport Shotcrete Spraying Machine 4×4 Easy Maintenance
Concrete Transport Shotcrete Spraying Machine 4×4 Easy Maintenance
Concrete Transport Shotcrete Spraying Machine 4×4 Easy Maintenance
Concrete Transport Shotcrete Spraying Machine 4×4 Easy Maintenance
Concrete Transport Shotcrete Spraying Machine 4×4 Easy Maintenance
Specifications
Brand Name :
Beijun
Model Number :
UPS-20J
Certification :
CE,ISO,TUV
Place of Origin :
China
MOQ :
1
Price :
USD 45000-50000 Set
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
13-31 days
Packaging Details :
Customized packaging
weight（kg） :
13501
Electrical motor power kW :
37/45high altitude
Engine power kW :
59
Engine model :
YCD4T23T8-80
Front and rear axle drive :
4×4
Max. traveling speed Km/h :
10
Max. tramming gradient ° :
21
Max. outer turning radius mm :
6201
Min. inner turning radius mm :
3801
Description

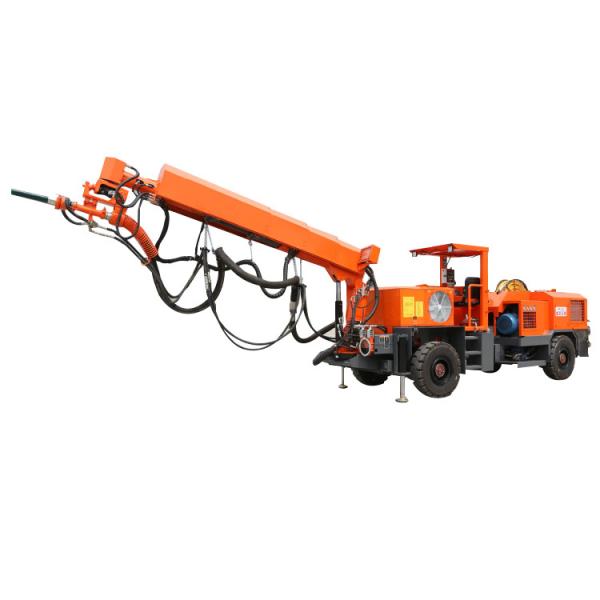

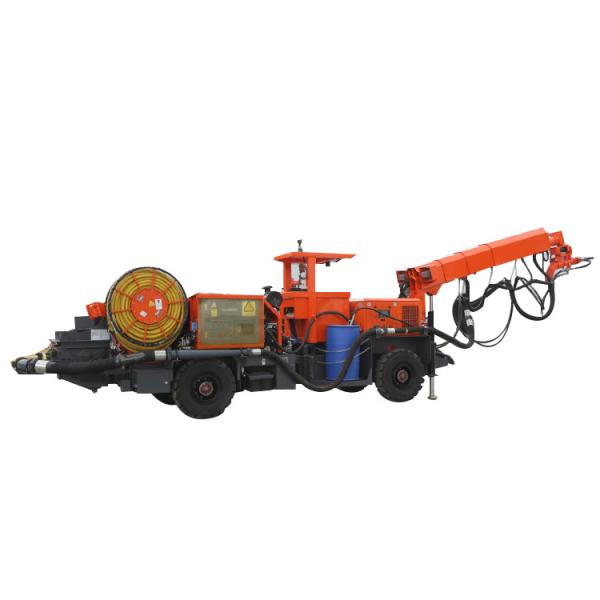

UPS-20J Mining Concrete Sprayer

  • Carrier complies with current underground specifications for mobile equipment operating on steep inclines
  • Operator friendly spraying controls provide flexibility and high productivity
  • Reduced airborne dust compared to dry spraying method
  • Ease of maintenance with electronic engine diagnostics, accessible fuel filling and grease points
  • Robust shotcrete pump allows machine to accommodate larger aggregate so that it can operate as a conventional concrete pumper

Whole machine (L×W×H ) mm 7500 ×2145×2500
Weight kg 13500
Electrical motor power kW 37/45high altitude
Engine power kW 59
Chassis Engine model YCD4T23T8-80
Front and rear axle drive - 4×4
Max. traveling speed Km/h 9
Max. tramming gradient ° 20
Max. outer turning radius mm 6200
Min. inner turning radius mm 3800
Boom structure mode Telescopic
Max. Spraying vertical height m 8
Max. Spraying horizontal width m 2x6.5
Spraying depth m 2.5
Boom pitching angle ° -35-+60
Boom telescopic scope mm 2900
Nozzle rotating angle ° 360
Nozzle swing angle ° 240
Boom system Theoretical pumping capacity m3/h 20
Pumping output pressure Mpa <7.5
Pumping cylinder inner dia. ×stroke mm Φ160×800
Pumping cylinder dia. mm Φ125-Φ80
Nozzle diameter mm Φ50
Electrical system Cable m 50
External power supply 380V/50HZ
Operation Wireless remote control
Control Control by controller + touch screen display
Accelerator system Air compressor displacement m3/min 8
Air compressor working pressure Mpa 0.5
Dosing max. output L/h 500
Dosing system pressure Mpa 0.5
Additive tank capacity L 200
Pick up concrete height mm 1350

Concrete Transport Shotcrete Spraying Machine 4×4 Easy MaintenanceConcrete Transport Shotcrete Spraying Machine 4×4 Easy MaintenanceConcrete Transport Shotcrete Spraying Machine 4×4 Easy MaintenanceConcrete Transport Shotcrete Spraying Machine 4×4 Easy Maintenance
