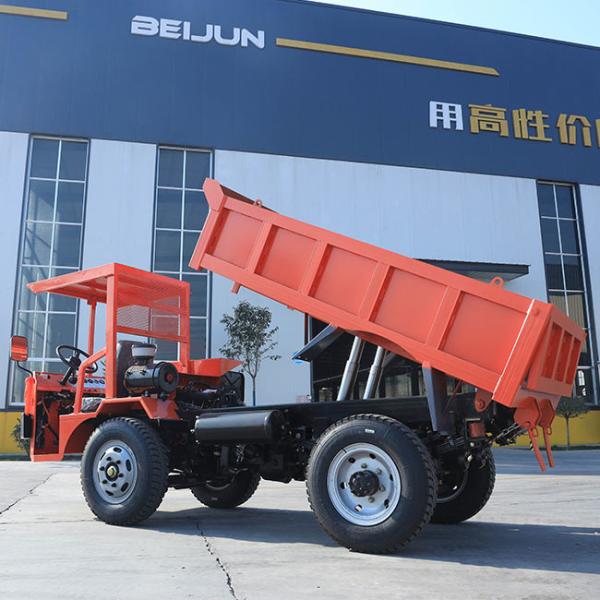

5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks
5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks
5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks
5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks
5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks
5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks
5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks
5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks
5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks
5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks
Specifications
Brand Name :
Beijun
Model Number :
UQ-5
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
7 days
Packaging Details :
Customized packaging
Engine Model :
FAW - 4DW92-73
Engine Power :
54KW/73HP
Transmission Model :
WANLIYANG 530
Drive Mode :
4x2
Dimension of Bottom Spring Plate :
Length 70mm, Width 100mm
Loading Capacity :
5 Tons
Type of Bucket :
U type Bucket
Thickness of Bucket Steel Plate :
bottom 8mm side 6mm
Description

Product parameters of 5 Ton Mining Dump Truck

Maneuverability: Small dump trucks are highly maneuverable and can easily navigate through tight spaces and narrow roads. This makes them ideal for use on smaller job sites, where larger vehicles may struggle to operate.

Fuel Efficiency: Smaller dump trucks are generally more fuel-efficient than their larger counterparts. This means that they can help to reduce fuel costs and are more environmentally friendly.

Versatility: Small dump trucks are highly versatile and can be used for a variety of tasks, including landscaping, excavation, and construction. They can also be used in a range of industries, from agriculture and mining to transportation and waste management.

Cost-effective: Small dump trucks are generally more affordable than larger dump trucks, both in terms of their initial purchase price and their ongoing maintenance costs. This makes them an attractive option for businesses that are looking to minimize their expenses.

Model UQ-5
Engine Model FAW - 4DW92-73
Engine Power 54KW/73HP
Transmission Model WANLIYANG 530
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1069
Rear Axle Model 1069
Tire Model 700x16 Line Tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 100mm
Size of the Bucket:Length×width×height U type Bucket 2800mm*1600mm*550mm
Type of Bucket
Thickness of Bucket Steel Plate bottom 8mm side 6mm

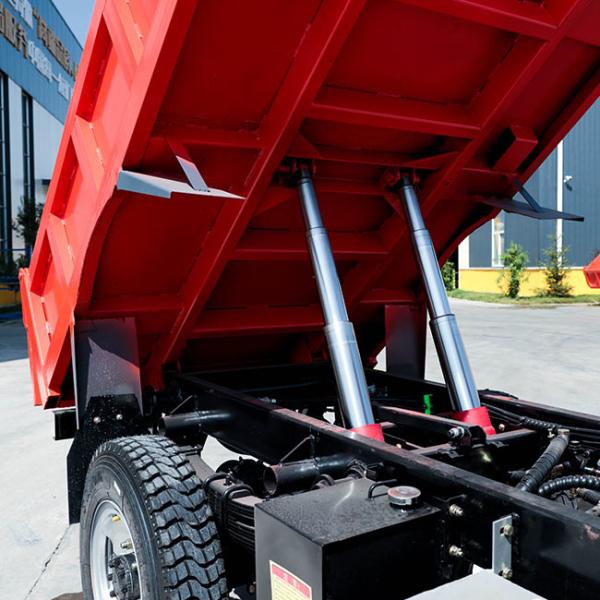

Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy with Glass and Rain Bush
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 6 Tons

5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks5 Tons Underground Dump Truck 54KW 4X2 Mining Mini Dump Trucks
